KCC S4 Stainless Steel Push-to-Connect Fittings (16 Types, Ø4-Ø16)

KCC S4 Stainless Steel Push-to-Connect Fittings (16 Types, Ø4-Ø16)

KCC S4 series all-stainless (SUS304) one-touch push-to-connect fittings in 16 body styles for tube OD 4 to 16 mm, for corrosive, high-temperature and food environments.

Key features

  • 16 styles: male connector/elbow/tee/run tee/Y, female and bulkhead female connector, bulkhead union, union straight/elbow/tee/Y/cross and reducing straight/Y/tee
  • Body STS304 standard; STS316 (prefix S6) available as non-standard
  • Male thread R(PT) or M5, female thread Rc(PT); G(PF) thread available on request
  • FKM seals for -5 to 150°C service and vacuum to -100 kPa
  • Code format S4 + type + tube OD + thread, e.g. S4C0802

Specifications

Fluid Air
Body material STS304 (STS316 non-standard)
Seal material FKM
Operating pressure -100 kPa to 1 MPa
Operating temperature -5 to 150°C
Tube OD 4, 6, 8, 10, 12, 14, 16 mm
Note Rating limited by the tube used
Source KCC catalog s4.pdf, p. 1-17

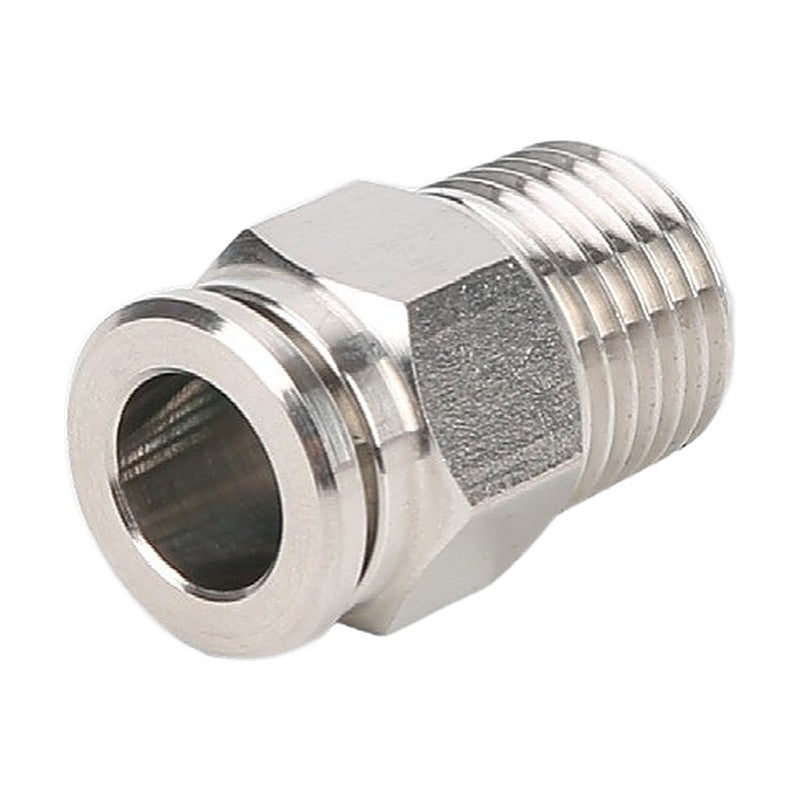

S4C04M5 Type: Male connector | Tube OD: 4 mm | Connection: M5x0.8
S4C0401 Type: Male connector | Tube OD: 4 mm | Connection: R1/8
S4C0402 Type: Male connector | Tube OD: 4 mm | Connection: R1/4
S4C06M5 Type: Male connector | Tube OD: 6 mm | Connection: M5x0.8
S4C0601 Type: Male connector | Tube OD: 6 mm | Connection: R1/8
S4C0602 Type: Male connector | Tube OD: 6 mm | Connection: R1/4
S4C0603 Type: Male connector | Tube OD: 6 mm | Connection: R3/8
S4C0604 Type: Male connector | Tube OD: 6 mm | Connection: R1/2
S4C0801 Type: Male connector | Tube OD: 8 mm | Connection: R1/8
S4C0802 Type: Male connector | Tube OD: 8 mm | Connection: R1/4
S4C0803 Type: Male connector | Tube OD: 8 mm | Connection: R3/8
S4C0804 Type: Male connector | Tube OD: 8 mm | Connection: R1/2
S4C1001 Type: Male connector | Tube OD: 10 mm | Connection: R1/8
S4C1002 Type: Male connector | Tube OD: 10 mm | Connection: R1/4
S4C1003 Type: Male connector | Tube OD: 10 mm | Connection: R3/8
S4C1004 Type: Male connector | Tube OD: 10 mm | Connection: R1/2
S4C1201 Type: Male connector | Tube OD: 12 mm | Connection: R1/8
S4C1202 Type: Male connector | Tube OD: 12 mm | Connection: R1/4
S4C1203 Type: Male connector | Tube OD: 12 mm | Connection: R3/8
S4C1204 Type: Male connector | Tube OD: 12 mm | Connection: R1/2
S4C1603 Type: Male connector | Tube OD: 16 mm | Connection: R3/8
S4C1604 Type: Male connector | Tube OD: 16 mm | Connection: R1/2
S4L04M5 Type: Male elbow | Tube OD: 4 mm | Connection: M5x0.8
S4L0401 Type: Male elbow | Tube OD: 4 mm | Connection: R1/8
S4L0402 Type: Male elbow | Tube OD: 4 mm | Connection: R1/4
S4L06M5 Type: Male elbow | Tube OD: 6 mm | Connection: M5x0.8
S4L0601 Type: Male elbow | Tube OD: 6 mm | Connection: R1/8
S4L0602 Type: Male elbow | Tube OD: 6 mm | Connection: R1/4
S4L0603 Type: Male elbow | Tube OD: 6 mm | Connection: R3/8
S4L0604 Type: Male elbow | Tube OD: 6 mm | Connection: R1/2
S4L0801 Type: Male elbow | Tube OD: 8 mm | Connection: R1/8
S4L0802 Type: Male elbow | Tube OD: 8 mm | Connection: R1/4
S4L0803 Type: Male elbow | Tube OD: 8 mm | Connection: R3/8
S4L0804 Type: Male elbow | Tube OD: 8 mm | Connection: R1/2
S4L1001 Type: Male elbow | Tube OD: 10 mm | Connection: R1/8
S4L1002 Type: Male elbow | Tube OD: 10 mm | Connection: R1/4
S4L1003 Type: Male elbow | Tube OD: 10 mm | Connection: R3/8
S4L1004 Type: Male elbow | Tube OD: 10 mm | Connection: R1/2
S4L1201 Type: Male elbow | Tube OD: 12 mm | Connection: R1/8
S4L1202 Type: Male elbow | Tube OD: 12 mm | Connection: R1/4
S4L1203 Type: Male elbow | Tube OD: 12 mm | Connection: R3/8
S4L1204 Type: Male elbow | Tube OD: 12 mm | Connection: R1/2
S4L1603 Type: Male elbow | Tube OD: 16 mm | Connection: R3/8
S4L1604 Type: Male elbow | Tube OD: 16 mm | Connection: R1/2
S4T04M5 Type: Male branch tee | Tube OD: 4 mm | Connection: M5x0.8
S4T0401 Type: Male branch tee | Tube OD: 4 mm | Connection: R1/8
S4T0402 Type: Male branch tee | Tube OD: 4 mm | Connection: R1/4
S4T06M5 Type: Male branch tee | Tube OD: 6 mm | Connection: M5x0.8
S4T0601 Type: Male branch tee | Tube OD: 6 mm | Connection: R1/8
S4T0602 Type: Male branch tee | Tube OD: 6 mm | Connection: R1/4
S4T0603 Type: Male branch tee | Tube OD: 6 mm | Connection: R3/8
S4T0604 Type: Male branch tee | Tube OD: 6 mm | Connection: R1/2
S4T0801 Type: Male branch tee | Tube OD: 8 mm | Connection: R1/8
S4T0802 Type: Male branch tee | Tube OD: 8 mm | Connection: R1/4
S4T0803 Type: Male branch tee | Tube OD: 8 mm | Connection: R3/8
S4T0804 Type: Male branch tee | Tube OD: 8 mm | Connection: R1/2
S4T1001 Type: Male branch tee | Tube OD: 10 mm | Connection: R1/8
S4T1002 Type: Male branch tee | Tube OD: 10 mm | Connection: R1/4
S4T1003 Type: Male branch tee | Tube OD: 10 mm | Connection: R3/8
S4T1004 Type: Male branch tee | Tube OD: 10 mm | Connection: R1/2
S4T1201 Type: Male branch tee | Tube OD: 12 mm | Connection: R1/8
S4T1202 Type: Male branch tee | Tube OD: 12 mm | Connection: R1/4
S4T1203 Type: Male branch tee | Tube OD: 12 mm | Connection: R3/8
S4T1204 Type: Male branch tee | Tube OD: 12 mm | Connection: R1/2
S4T1603 Type: Male branch tee | Tube OD: 16 mm | Connection: R3/8
S4T1604 Type: Male branch tee | Tube OD: 16 mm | Connection: R1/2
S4ST04M5 Type: Male run tee (2-way L) | Tube OD: 4 mm | Connection: M5x0.8
S4ST0401 Type: Male run tee (2-way L) | Tube OD: 4 mm | Connection: R1/8
S4ST0402 Type: Male run tee (2-way L) | Tube OD: 4 mm | Connection: R1/4
S4ST06M5 Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: M5x0.8
S4ST0601 Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R1/8
S4ST0602 Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R1/4
S4ST0603 Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R3/8
S4ST0604 Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R1/2
S4ST0801 Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R1/8
S4ST0802 Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R1/4
S4ST0803 Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R3/8
S4ST0804 Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R1/2
S4ST1001 Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R1/8
S4ST1002 Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R1/4
S4ST1003 Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R3/8
S4ST1004 Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R1/2
S4ST1201 Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R1/8
S4ST1202 Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R1/4
S4ST1203 Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R3/8
S4ST1204 Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R1/2
S4Y04M5 Type: Male Y connector | Tube OD: 4 mm | Connection: M5x0.8
S4Y0401 Type: Male Y connector | Tube OD: 4 mm | Connection: R1/8
S4Y0402 Type: Male Y connector | Tube OD: 4 mm | Connection: R1/4
S4Y06M5 Type: Male Y connector | Tube OD: 6 mm | Connection: M5x0.8
S4Y0601 Type: Male Y connector | Tube OD: 6 mm | Connection: R1/8
S4Y0602 Type: Male Y connector | Tube OD: 6 mm | Connection: R1/4
S4Y0603 Type: Male Y connector | Tube OD: 6 mm | Connection: R3/8
S4Y0604 Type: Male Y connector | Tube OD: 6 mm | Connection: R1/2
S4Y0801 Type: Male Y connector | Tube OD: 8 mm | Connection: R1/8
S4Y0802 Type: Male Y connector | Tube OD: 8 mm | Connection: R1/4
S4Y0803 Type: Male Y connector | Tube OD: 8 mm | Connection: R3/8
S4Y0804 Type: Male Y connector | Tube OD: 8 mm | Connection: R1/2
S4Y1001 Type: Male Y connector | Tube OD: 10 mm | Connection: R1/8
S4Y1002 Type: Male Y connector | Tube OD: 10 mm | Connection: R1/4
S4Y1003 Type: Male Y connector | Tube OD: 10 mm | Connection: R3/8
S4Y1004 Type: Male Y connector | Tube OD: 10 mm | Connection: R1/2
S4Y1201 Type: Male Y connector | Tube OD: 12 mm | Connection: R1/8
S4Y1202 Type: Male Y connector | Tube OD: 12 mm | Connection: R1/4
S4Y1203 Type: Male Y connector | Tube OD: 12 mm | Connection: R3/8
S4Y1204 Type: Male Y connector | Tube OD: 12 mm | Connection: R1/2
S4FC04M5 Type: Female connector | Tube OD: 4 mm | Connection: M5x0.8
S4FC0401 Type: Female connector | Tube OD: 4 mm | Connection: Rc1/8
S4FC0402 Type: Female connector | Tube OD: 4 mm | Connection: Rc1/4
S4FC06M5 Type: Female connector | Tube OD: 6 mm | Connection: M5x0.8
S4FC0601 Type: Female connector | Tube OD: 6 mm | Connection: Rc1/8
S4FC0602 Type: Female connector | Tube OD: 6 mm | Connection: Rc1/4
S4FC0603 Type: Female connector | Tube OD: 6 mm | Connection: Rc3/8
S4FC0604 Type: Female connector | Tube OD: 6 mm | Connection: Rc1/2
S4FC0801 Type: Female connector | Tube OD: 8 mm | Connection: Rc1/8
S4FC0802 Type: Female connector | Tube OD: 8 mm | Connection: Rc1/4
S4FC0803 Type: Female connector | Tube OD: 8 mm | Connection: Rc3/8
S4FC0804 Type: Female connector | Tube OD: 8 mm | Connection: Rc1/2
S4FC1001 Type: Female connector | Tube OD: 10 mm | Connection: Rc1/8
S4FC1002 Type: Female connector | Tube OD: 10 mm | Connection: Rc1/4
S4FC1003 Type: Female connector | Tube OD: 10 mm | Connection: Rc3/8
S4FC1004 Type: Female connector | Tube OD: 10 mm | Connection: Rc1/2
S4FC1202 Type: Female connector | Tube OD: 12 mm | Connection: Rc1/4
S4FC1203 Type: Female connector | Tube OD: 12 mm | Connection: Rc3/8
S4FC1204 Type: Female connector | Tube OD: 12 mm | Connection: Rc1/2
S4PFC0401 Type: Female bulkhead connector | Tube OD: 4 mm | Connection: Rc1/8
S4PFC0402 Type: Female bulkhead connector | Tube OD: 4 mm | Connection: Rc1/4
S4PFC0601 Type: Female bulkhead connector | Tube OD: 6 mm | Connection: Rc1/8
S4PFC0602 Type: Female bulkhead connector | Tube OD: 6 mm | Connection: Rc1/4
S4PFC0603 Type: Female bulkhead connector | Tube OD: 6 mm | Connection: Rc3/8
S4PFC0801 Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc1/8
S4PFC0802 Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc1/4
S4PFC0803 Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc3/8
S4PFC0804 Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc1/2
S4PFC1001 Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc1/8
S4PFC1002 Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc1/4
S4PFC1003 Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc3/8
S4PFC1004 Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc1/2
S4PFC1202 Type: Female bulkhead connector | Tube OD: 12 mm | Connection: Rc1/4
S4PFC1203 Type: Female bulkhead connector | Tube OD: 12 mm | Connection: Rc3/8
S4PFC1204 Type: Female bulkhead connector | Tube OD: 12 mm | Connection: Rc1/2
S4PC04 Type: Bulkhead union | Tube OD: 4 mm | Connection: Same tube size
S4PC06 Type: Bulkhead union | Tube OD: 6 mm | Connection: Same tube size
S4PC08 Type: Bulkhead union | Tube OD: 8 mm | Connection: Same tube size
S4PC10 Type: Bulkhead union | Tube OD: 10 mm | Connection: Same tube size
S4PC12 Type: Bulkhead union | Tube OD: 12 mm | Connection: Same tube size
S4UC04 Type: Union straight | Tube OD: 4 mm | Connection: Same tube size
S4UC06 Type: Union straight | Tube OD: 6 mm | Connection: Same tube size
S4UC08 Type: Union straight | Tube OD: 8 mm | Connection: Same tube size
S4UC10 Type: Union straight | Tube OD: 10 mm | Connection: Same tube size
S4UC12 Type: Union straight | Tube OD: 12 mm | Connection: Same tube size
S4UC14 Type: Union straight | Tube OD: 14 mm | Connection: Same tube size
S4UC16 Type: Union straight | Tube OD: 16 mm | Connection: Same tube size
S4UL04 Type: Union elbow | Tube OD: 4 mm | Connection: Same tube size
S4UL06 Type: Union elbow | Tube OD: 6 mm | Connection: Same tube size
S4UL08 Type: Union elbow | Tube OD: 8 mm | Connection: Same tube size
S4UL10 Type: Union elbow | Tube OD: 10 mm | Connection: Same tube size
S4UL12 Type: Union elbow | Tube OD: 12 mm | Connection: Same tube size
S4UL14 Type: Union elbow | Tube OD: 14 mm | Connection: Same tube size
S4UL16 Type: Union elbow | Tube OD: 16 mm | Connection: Same tube size
S4UT04 Type: Union tee | Tube OD: 4 mm | Connection: Same tube size
S4UT06 Type: Union tee | Tube OD: 6 mm | Connection: Same tube size
S4UT08 Type: Union tee | Tube OD: 8 mm | Connection: Same tube size
S4UT10 Type: Union tee | Tube OD: 10 mm | Connection: Same tube size
S4UT12 Type: Union tee | Tube OD: 12 mm | Connection: Same tube size
S4UT14 Type: Union tee | Tube OD: 14 mm | Connection: Same tube size
S4UT16 Type: Union tee | Tube OD: 16 mm | Connection: Same tube size
S4UY04 Type: Union Y | Tube OD: 4 mm | Connection: Same tube size
S4UY06 Type: Union Y | Tube OD: 6 mm | Connection: Same tube size
S4UY08 Type: Union Y | Tube OD: 8 mm | Connection: Same tube size
S4UY10 Type: Union Y | Tube OD: 10 mm | Connection: Same tube size
S4UY12 Type: Union Y | Tube OD: 12 mm | Connection: Same tube size
S4UY16 Type: Union Y | Tube OD: 16 mm | Connection: Same tube size
S4ZA04 Type: Union cross | Tube OD: 4 mm | Connection: Same tube size
S4ZA06 Type: Union cross | Tube OD: 6 mm | Connection: Same tube size
S4ZA08 Type: Union cross | Tube OD: 8 mm | Connection: Same tube size
S4ZA10 Type: Union cross | Tube OD: 10 mm | Connection: Same tube size
S4ZA12 Type: Union cross | Tube OD: 12 mm | Connection: Same tube size
S4UR0604 Type: Reducing straight union | Tube OD: 6 mm | Connection: Tube 4 mm
S4UR0806 Type: Reducing straight union | Tube OD: 8 mm | Connection: Tube 6 mm
S4UR1006 Type: Reducing straight union | Tube OD: 10 mm | Connection: Tube 6 mm
S4UR1008 Type: Reducing straight union | Tube OD: 10 mm | Connection: Tube 8 mm
S4UR1208 Type: Reducing straight union | Tube OD: 12 mm | Connection: Tube 8 mm
S4UR1210 Type: Reducing straight union | Tube OD: 12 mm | Connection: Tube 10 mm
S4UR1612 Type: Reducing straight union | Tube OD: 16 mm | Connection: Tube 12 mm
S4RY0604 Type: Reducing union Y | Tube OD: 6 mm | Connection: Tube 4 mm
S4RY0806 Type: Reducing union Y | Tube OD: 8 mm | Connection: Tube 6 mm
S4RY1006 Type: Reducing union Y | Tube OD: 10 mm | Connection: Tube 6 mm
S4RY1008 Type: Reducing union Y | Tube OD: 10 mm | Connection: Tube 8 mm
S4RY1208 Type: Reducing union Y | Tube OD: 12 mm | Connection: Tube 8 mm
S4RY1210 Type: Reducing union Y | Tube OD: 12 mm | Connection: Tube 10 mm
S4RY1612 Type: Reducing union Y | Tube OD: 16 mm | Connection: Tube 12 mm
S4GT0406 Type: Reducing union tee | Tube OD: 4 mm | Connection: Tube 6 mm
S4GT0604 Type: Reducing union tee | Tube OD: 6 mm | Connection: Tube 4 mm
S4GT0608 Type: Reducing union tee | Tube OD: 6 mm | Connection: Tube 8 mm
S4GT0804 Type: Reducing union tee | Tube OD: 8 mm | Connection: Tube 4 mm
S4GT0806 Type: Reducing union tee | Tube OD: 8 mm | Connection: Tube 6 mm
S4GT0810 Type: Reducing union tee | Tube OD: 8 mm | Connection: Tube 10 mm
S4GT1006 Type: Reducing union tee | Tube OD: 10 mm | Connection: Tube 6 mm
S4GT1008 Type: Reducing union tee | Tube OD: 10 mm | Connection: Tube 8 mm
S4GT1012 Type: Reducing union tee | Tube OD: 10 mm | Connection: Tube 12 mm
S4GT1208 Type: Reducing union tee | Tube OD: 12 mm | Connection: Tube 8 mm
S4GT1210 Type: Reducing union tee | Tube OD: 12 mm | Connection: Tube 10 mm
S4GT1610 Type: Reducing union tee | Tube OD: 16 mm | Connection: Tube 10 mm
S4GT1612 Type: Reducing union tee | Tube OD: 16 mm | Connection: Tube 12 mm
Push-to-Connect FittingsKCC
205 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC S4 Stainless Steel Push-to-Connect Fittings (16 Types, Ø4-Ø16)

Brand KCC·Push-to-Connect Fittings

Available part numbers (205)

S4C04M5, S4C0401, S4C0402, S4C06M5, S4C0601, S4C0602, S4C0603, S4C0604, S4C0801, S4C0802 + 195 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S4C04M5Type: Male connector | Tube OD: 4 mm | Connection: M5x0.8
S4C0401Type: Male connector | Tube OD: 4 mm | Connection: R1/8
S4C0402Type: Male connector | Tube OD: 4 mm | Connection: R1/4
S4C06M5Type: Male connector | Tube OD: 6 mm | Connection: M5x0.8
S4C0601Type: Male connector | Tube OD: 6 mm | Connection: R1/8
S4C0602Type: Male connector | Tube OD: 6 mm | Connection: R1/4
S4C0603Type: Male connector | Tube OD: 6 mm | Connection: R3/8
S4C0604Type: Male connector | Tube OD: 6 mm | Connection: R1/2
S4C0801Type: Male connector | Tube OD: 8 mm | Connection: R1/8
S4C0802Type: Male connector | Tube OD: 8 mm | Connection: R1/4
S4C0803Type: Male connector | Tube OD: 8 mm | Connection: R3/8
S4C0804Type: Male connector | Tube OD: 8 mm | Connection: R1/2
S4C1001Type: Male connector | Tube OD: 10 mm | Connection: R1/8
S4C1002Type: Male connector | Tube OD: 10 mm | Connection: R1/4
S4C1003Type: Male connector | Tube OD: 10 mm | Connection: R3/8
S4C1004Type: Male connector | Tube OD: 10 mm | Connection: R1/2
S4C1201Type: Male connector | Tube OD: 12 mm | Connection: R1/8
S4C1202Type: Male connector | Tube OD: 12 mm | Connection: R1/4
S4C1203Type: Male connector | Tube OD: 12 mm | Connection: R3/8
S4C1204Type: Male connector | Tube OD: 12 mm | Connection: R1/2
S4C1603Type: Male connector | Tube OD: 16 mm | Connection: R3/8
S4C1604Type: Male connector | Tube OD: 16 mm | Connection: R1/2
S4L04M5Type: Male elbow | Tube OD: 4 mm | Connection: M5x0.8
S4L0401Type: Male elbow | Tube OD: 4 mm | Connection: R1/8
S4L0402Type: Male elbow | Tube OD: 4 mm | Connection: R1/4
S4L06M5Type: Male elbow | Tube OD: 6 mm | Connection: M5x0.8
S4L0601Type: Male elbow | Tube OD: 6 mm | Connection: R1/8
S4L0602Type: Male elbow | Tube OD: 6 mm | Connection: R1/4
S4L0603Type: Male elbow | Tube OD: 6 mm | Connection: R3/8
S4L0604Type: Male elbow | Tube OD: 6 mm | Connection: R1/2
S4L0801Type: Male elbow | Tube OD: 8 mm | Connection: R1/8
S4L0802Type: Male elbow | Tube OD: 8 mm | Connection: R1/4
S4L0803Type: Male elbow | Tube OD: 8 mm | Connection: R3/8
S4L0804Type: Male elbow | Tube OD: 8 mm | Connection: R1/2
S4L1001Type: Male elbow | Tube OD: 10 mm | Connection: R1/8
S4L1002Type: Male elbow | Tube OD: 10 mm | Connection: R1/4
S4L1003Type: Male elbow | Tube OD: 10 mm | Connection: R3/8
S4L1004Type: Male elbow | Tube OD: 10 mm | Connection: R1/2
S4L1201Type: Male elbow | Tube OD: 12 mm | Connection: R1/8
S4L1202Type: Male elbow | Tube OD: 12 mm | Connection: R1/4
S4L1203Type: Male elbow | Tube OD: 12 mm | Connection: R3/8
S4L1204Type: Male elbow | Tube OD: 12 mm | Connection: R1/2
S4L1603Type: Male elbow | Tube OD: 16 mm | Connection: R3/8
S4L1604Type: Male elbow | Tube OD: 16 mm | Connection: R1/2
S4T04M5Type: Male branch tee | Tube OD: 4 mm | Connection: M5x0.8
S4T0401Type: Male branch tee | Tube OD: 4 mm | Connection: R1/8
S4T0402Type: Male branch tee | Tube OD: 4 mm | Connection: R1/4
S4T06M5Type: Male branch tee | Tube OD: 6 mm | Connection: M5x0.8
S4T0601Type: Male branch tee | Tube OD: 6 mm | Connection: R1/8
S4T0602Type: Male branch tee | Tube OD: 6 mm | Connection: R1/4
S4T0603Type: Male branch tee | Tube OD: 6 mm | Connection: R3/8
S4T0604Type: Male branch tee | Tube OD: 6 mm | Connection: R1/2
S4T0801Type: Male branch tee | Tube OD: 8 mm | Connection: R1/8
S4T0802Type: Male branch tee | Tube OD: 8 mm | Connection: R1/4
S4T0803Type: Male branch tee | Tube OD: 8 mm | Connection: R3/8
S4T0804Type: Male branch tee | Tube OD: 8 mm | Connection: R1/2
S4T1001Type: Male branch tee | Tube OD: 10 mm | Connection: R1/8
S4T1002Type: Male branch tee | Tube OD: 10 mm | Connection: R1/4
S4T1003Type: Male branch tee | Tube OD: 10 mm | Connection: R3/8
S4T1004Type: Male branch tee | Tube OD: 10 mm | Connection: R1/2
S4T1201Type: Male branch tee | Tube OD: 12 mm | Connection: R1/8
S4T1202Type: Male branch tee | Tube OD: 12 mm | Connection: R1/4
S4T1203Type: Male branch tee | Tube OD: 12 mm | Connection: R3/8
S4T1204Type: Male branch tee | Tube OD: 12 mm | Connection: R1/2
S4T1603Type: Male branch tee | Tube OD: 16 mm | Connection: R3/8
S4T1604Type: Male branch tee | Tube OD: 16 mm | Connection: R1/2
S4ST04M5Type: Male run tee (2-way L) | Tube OD: 4 mm | Connection: M5x0.8
S4ST0401Type: Male run tee (2-way L) | Tube OD: 4 mm | Connection: R1/8
S4ST0402Type: Male run tee (2-way L) | Tube OD: 4 mm | Connection: R1/4
S4ST06M5Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: M5x0.8
S4ST0601Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R1/8
S4ST0602Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R1/4
S4ST0603Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R3/8
S4ST0604Type: Male run tee (2-way L) | Tube OD: 6 mm | Connection: R1/2
S4ST0801Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R1/8
S4ST0802Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R1/4
S4ST0803Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R3/8
S4ST0804Type: Male run tee (2-way L) | Tube OD: 8 mm | Connection: R1/2
S4ST1001Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R1/8
S4ST1002Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R1/4
S4ST1003Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R3/8
S4ST1004Type: Male run tee (2-way L) | Tube OD: 10 mm | Connection: R1/2
S4ST1201Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R1/8
S4ST1202Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R1/4
S4ST1203Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R3/8
S4ST1204Type: Male run tee (2-way L) | Tube OD: 12 mm | Connection: R1/2
S4Y04M5Type: Male Y connector | Tube OD: 4 mm | Connection: M5x0.8
S4Y0401Type: Male Y connector | Tube OD: 4 mm | Connection: R1/8
S4Y0402Type: Male Y connector | Tube OD: 4 mm | Connection: R1/4
S4Y06M5Type: Male Y connector | Tube OD: 6 mm | Connection: M5x0.8
S4Y0601Type: Male Y connector | Tube OD: 6 mm | Connection: R1/8
S4Y0602Type: Male Y connector | Tube OD: 6 mm | Connection: R1/4
S4Y0603Type: Male Y connector | Tube OD: 6 mm | Connection: R3/8
S4Y0604Type: Male Y connector | Tube OD: 6 mm | Connection: R1/2
S4Y0801Type: Male Y connector | Tube OD: 8 mm | Connection: R1/8
S4Y0802Type: Male Y connector | Tube OD: 8 mm | Connection: R1/4
S4Y0803Type: Male Y connector | Tube OD: 8 mm | Connection: R3/8
S4Y0804Type: Male Y connector | Tube OD: 8 mm | Connection: R1/2
S4Y1001Type: Male Y connector | Tube OD: 10 mm | Connection: R1/8
S4Y1002Type: Male Y connector | Tube OD: 10 mm | Connection: R1/4
S4Y1003Type: Male Y connector | Tube OD: 10 mm | Connection: R3/8
S4Y1004Type: Male Y connector | Tube OD: 10 mm | Connection: R1/2
S4Y1201Type: Male Y connector | Tube OD: 12 mm | Connection: R1/8
S4Y1202Type: Male Y connector | Tube OD: 12 mm | Connection: R1/4
S4Y1203Type: Male Y connector | Tube OD: 12 mm | Connection: R3/8
S4Y1204Type: Male Y connector | Tube OD: 12 mm | Connection: R1/2
S4FC04M5Type: Female connector | Tube OD: 4 mm | Connection: M5x0.8
S4FC0401Type: Female connector | Tube OD: 4 mm | Connection: Rc1/8
S4FC0402Type: Female connector | Tube OD: 4 mm | Connection: Rc1/4
S4FC06M5Type: Female connector | Tube OD: 6 mm | Connection: M5x0.8
S4FC0601Type: Female connector | Tube OD: 6 mm | Connection: Rc1/8
S4FC0602Type: Female connector | Tube OD: 6 mm | Connection: Rc1/4
S4FC0603Type: Female connector | Tube OD: 6 mm | Connection: Rc3/8
S4FC0604Type: Female connector | Tube OD: 6 mm | Connection: Rc1/2
S4FC0801Type: Female connector | Tube OD: 8 mm | Connection: Rc1/8
S4FC0802Type: Female connector | Tube OD: 8 mm | Connection: Rc1/4
S4FC0803Type: Female connector | Tube OD: 8 mm | Connection: Rc3/8
S4FC0804Type: Female connector | Tube OD: 8 mm | Connection: Rc1/2
S4FC1001Type: Female connector | Tube OD: 10 mm | Connection: Rc1/8
S4FC1002Type: Female connector | Tube OD: 10 mm | Connection: Rc1/4
S4FC1003Type: Female connector | Tube OD: 10 mm | Connection: Rc3/8
S4FC1004Type: Female connector | Tube OD: 10 mm | Connection: Rc1/2
S4FC1202Type: Female connector | Tube OD: 12 mm | Connection: Rc1/4
S4FC1203Type: Female connector | Tube OD: 12 mm | Connection: Rc3/8
S4FC1204Type: Female connector | Tube OD: 12 mm | Connection: Rc1/2
S4PFC0401Type: Female bulkhead connector | Tube OD: 4 mm | Connection: Rc1/8
S4PFC0402Type: Female bulkhead connector | Tube OD: 4 mm | Connection: Rc1/4
S4PFC0601Type: Female bulkhead connector | Tube OD: 6 mm | Connection: Rc1/8
S4PFC0602Type: Female bulkhead connector | Tube OD: 6 mm | Connection: Rc1/4
S4PFC0603Type: Female bulkhead connector | Tube OD: 6 mm | Connection: Rc3/8
S4PFC0801Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc1/8
S4PFC0802Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc1/4
S4PFC0803Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc3/8
S4PFC0804Type: Female bulkhead connector | Tube OD: 8 mm | Connection: Rc1/2
S4PFC1001Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc1/8
S4PFC1002Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc1/4
S4PFC1003Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc3/8
S4PFC1004Type: Female bulkhead connector | Tube OD: 10 mm | Connection: Rc1/2
S4PFC1202Type: Female bulkhead connector | Tube OD: 12 mm | Connection: Rc1/4
S4PFC1203Type: Female bulkhead connector | Tube OD: 12 mm | Connection: Rc3/8
S4PFC1204Type: Female bulkhead connector | Tube OD: 12 mm | Connection: Rc1/2
S4PC04Type: Bulkhead union | Tube OD: 4 mm | Connection: Same tube size
S4PC06Type: Bulkhead union | Tube OD: 6 mm | Connection: Same tube size
S4PC08Type: Bulkhead union | Tube OD: 8 mm | Connection: Same tube size
S4PC10Type: Bulkhead union | Tube OD: 10 mm | Connection: Same tube size
S4PC12Type: Bulkhead union | Tube OD: 12 mm | Connection: Same tube size
S4UC04Type: Union straight | Tube OD: 4 mm | Connection: Same tube size
S4UC06Type: Union straight | Tube OD: 6 mm | Connection: Same tube size
S4UC08Type: Union straight | Tube OD: 8 mm | Connection: Same tube size
S4UC10Type: Union straight | Tube OD: 10 mm | Connection: Same tube size
S4UC12Type: Union straight | Tube OD: 12 mm | Connection: Same tube size
S4UC14Type: Union straight | Tube OD: 14 mm | Connection: Same tube size
S4UC16Type: Union straight | Tube OD: 16 mm | Connection: Same tube size
S4UL04Type: Union elbow | Tube OD: 4 mm | Connection: Same tube size
S4UL06Type: Union elbow | Tube OD: 6 mm | Connection: Same tube size
S4UL08Type: Union elbow | Tube OD: 8 mm | Connection: Same tube size
S4UL10Type: Union elbow | Tube OD: 10 mm | Connection: Same tube size
S4UL12Type: Union elbow | Tube OD: 12 mm | Connection: Same tube size
S4UL14Type: Union elbow | Tube OD: 14 mm | Connection: Same tube size
S4UL16Type: Union elbow | Tube OD: 16 mm | Connection: Same tube size
S4UT04Type: Union tee | Tube OD: 4 mm | Connection: Same tube size
S4UT06Type: Union tee | Tube OD: 6 mm | Connection: Same tube size
S4UT08Type: Union tee | Tube OD: 8 mm | Connection: Same tube size
S4UT10Type: Union tee | Tube OD: 10 mm | Connection: Same tube size
S4UT12Type: Union tee | Tube OD: 12 mm | Connection: Same tube size
S4UT14Type: Union tee | Tube OD: 14 mm | Connection: Same tube size
S4UT16Type: Union tee | Tube OD: 16 mm | Connection: Same tube size
S4UY04Type: Union Y | Tube OD: 4 mm | Connection: Same tube size
S4UY06Type: Union Y | Tube OD: 6 mm | Connection: Same tube size
S4UY08Type: Union Y | Tube OD: 8 mm | Connection: Same tube size
S4UY10Type: Union Y | Tube OD: 10 mm | Connection: Same tube size
S4UY12Type: Union Y | Tube OD: 12 mm | Connection: Same tube size
S4UY16Type: Union Y | Tube OD: 16 mm | Connection: Same tube size
S4ZA04Type: Union cross | Tube OD: 4 mm | Connection: Same tube size
S4ZA06Type: Union cross | Tube OD: 6 mm | Connection: Same tube size
S4ZA08Type: Union cross | Tube OD: 8 mm | Connection: Same tube size
S4ZA10Type: Union cross | Tube OD: 10 mm | Connection: Same tube size
S4ZA12Type: Union cross | Tube OD: 12 mm | Connection: Same tube size
S4UR0604Type: Reducing straight union | Tube OD: 6 mm | Connection: Tube 4 mm
S4UR0806Type: Reducing straight union | Tube OD: 8 mm | Connection: Tube 6 mm
S4UR1006Type: Reducing straight union | Tube OD: 10 mm | Connection: Tube 6 mm
S4UR1008Type: Reducing straight union | Tube OD: 10 mm | Connection: Tube 8 mm
S4UR1208Type: Reducing straight union | Tube OD: 12 mm | Connection: Tube 8 mm
S4UR1210Type: Reducing straight union | Tube OD: 12 mm | Connection: Tube 10 mm
S4UR1612Type: Reducing straight union | Tube OD: 16 mm | Connection: Tube 12 mm
S4RY0604Type: Reducing union Y | Tube OD: 6 mm | Connection: Tube 4 mm
S4RY0806Type: Reducing union Y | Tube OD: 8 mm | Connection: Tube 6 mm
S4RY1006Type: Reducing union Y | Tube OD: 10 mm | Connection: Tube 6 mm
S4RY1008Type: Reducing union Y | Tube OD: 10 mm | Connection: Tube 8 mm
S4RY1208Type: Reducing union Y | Tube OD: 12 mm | Connection: Tube 8 mm
S4RY1210Type: Reducing union Y | Tube OD: 12 mm | Connection: Tube 10 mm
S4RY1612Type: Reducing union Y | Tube OD: 16 mm | Connection: Tube 12 mm
S4GT0406Type: Reducing union tee | Tube OD: 4 mm | Connection: Tube 6 mm
S4GT0604Type: Reducing union tee | Tube OD: 6 mm | Connection: Tube 4 mm
S4GT0608Type: Reducing union tee | Tube OD: 6 mm | Connection: Tube 8 mm
S4GT0804Type: Reducing union tee | Tube OD: 8 mm | Connection: Tube 4 mm
S4GT0806Type: Reducing union tee | Tube OD: 8 mm | Connection: Tube 6 mm
S4GT0810Type: Reducing union tee | Tube OD: 8 mm | Connection: Tube 10 mm
S4GT1006Type: Reducing union tee | Tube OD: 10 mm | Connection: Tube 6 mm
S4GT1008Type: Reducing union tee | Tube OD: 10 mm | Connection: Tube 8 mm
S4GT1012Type: Reducing union tee | Tube OD: 10 mm | Connection: Tube 12 mm
S4GT1208Type: Reducing union tee | Tube OD: 12 mm | Connection: Tube 8 mm
S4GT1210Type: Reducing union tee | Tube OD: 12 mm | Connection: Tube 10 mm
S4GT1610Type: Reducing union tee | Tube OD: 16 mm | Connection: Tube 10 mm
S4GT1612Type: Reducing union tee | Tube OD: 16 mm | Connection: Tube 12 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
