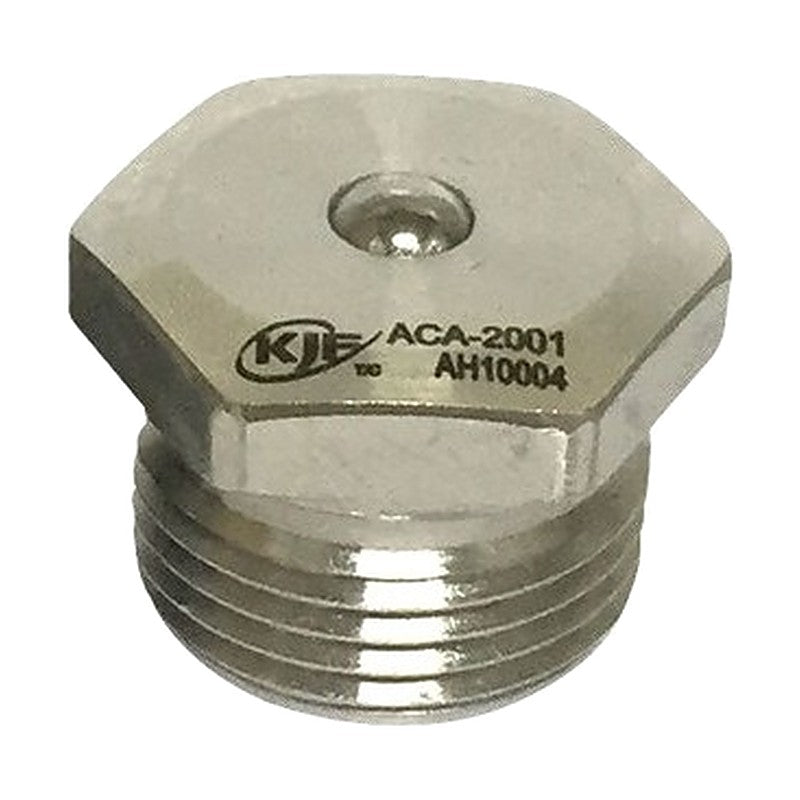

KJF ACA Auto Coupler, Pneumatic, Threaded Type

KJF ACA Auto Coupler, Pneumatic, Threaded Type

Pneumatic threaded auto coupler with check valves on both halves: fluid is shut off automatically when disconnected and opened when the upper and lower couplers meet.

Key features

  • Automatic shut-off on disconnection; one check valve opens the other on connection
  • O-ring on the upper end prevents air leakage
  • Compact and suitable for automation
  • Reaction force: 12 kgf at 5 kgf/cm²
  • K versions have a stainless steel sleeve instead of brass

Specifications

Fluid Air
Max. operating pressure 10 kgf/cm²
Operating temperature 0-70 °C
Flow rate 345 L/min at 4 kgf/cm²
Body thread M20 x 1.5
Allowable misalignment ±1.0 mm, angle 0.3°
Secondary-battery version Add "K" to the end of the model number for a copper/zinc-free material version (other specifications identical)
ACA-2001 Side: Pressure source side | Sleeve: Brass | Weight: 38 g
ACA-2002 Side: Fixture side | Sleeve: Brass | Weight: 34 g
ACA-2001K Side: Pressure source side | Sleeve: Stainless steel
ACA-2002K Side: Fixture side | Sleeve: Stainless steel
Auto CouplersKJF
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF ACA Auto Coupler, Pneumatic, Threaded Type

Brand KJF·Auto Couplers

Available part numbers (4)

ACA-2001, ACA-2002, ACA-2001K, ACA-2002K

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ACA-2001Side: Pressure source side | Sleeve: Brass | Weight: 38 g
ACA-2002Side: Fixture side | Sleeve: Brass | Weight: 34 g
ACA-2001KSide: Pressure source side | Sleeve: Stainless steel
ACA-2002KSide: Fixture side | Sleeve: Stainless steel
