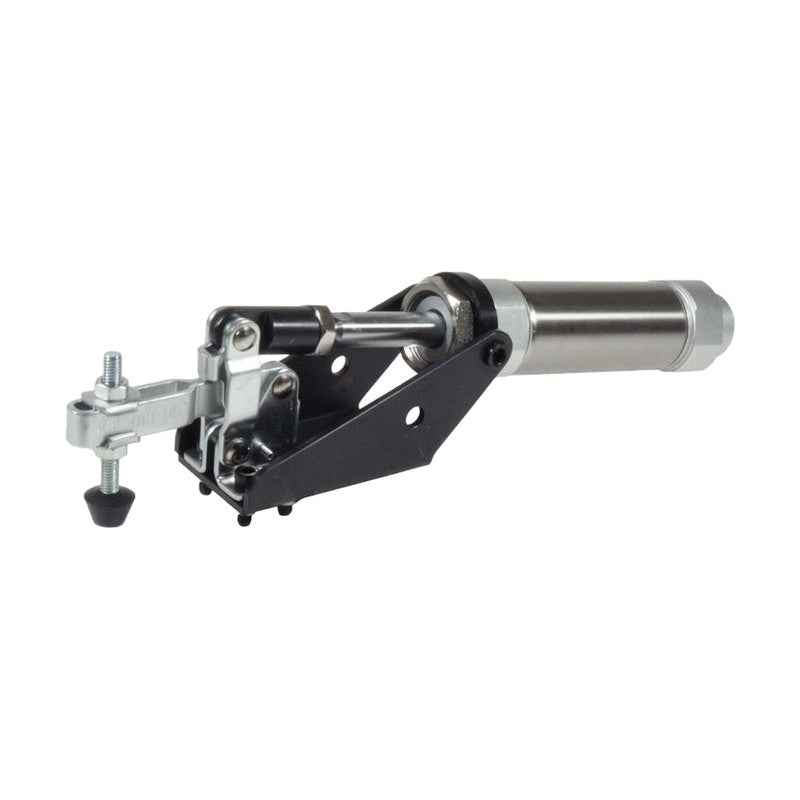

KJF-AR Pneumatic Toggle Clamps

Air-operated toggle clamps that combine a pneumatic cylinder with a toggle linkage, in vertical, heavy-duty weldable and push/pull styles, for automated jigs and fixtures.

Key features

Vertical, heavy-duty weldable and push/pull types
Cylinder with built-in magnet for auto switch sensing (recommended switch: F.TEC IC7 or IA7)
Holding capacity from 50 kgf to 2,000 kgf

Specifications

Actuation	Pneumatic cylinder with built-in magnet
Air port	PT 1/8 - PT 3/8

KJF-AR-1051		Holding capacity: 50 kgf \| Cylinder: Ø20 x 25 stroke \| Air port: PT 1/8 \| Spindle adjustment: 17 mm \| Arm opening: 103° \| Weight: 345 g
KJF-AR-1101		Holding capacity: 100 kgf \| Cylinder: Ø25 x 50 stroke \| Air port: PT 1/8 \| Spindle adjustment: 34 mm \| Arm opening: 101° \| Weight: 708 g
KJF-AR-1102		Holding capacity: 100 kgf \| Cylinder: Ø25 x 50 stroke \| Air port: PT 1/8 \| Spindle adjustment: 82 mm \| Arm opening: 101° \| Weight: 730 g
KJF-AR-1181		Holding capacity: 180 kgf \| Cylinder: Ø32 x 50 stroke \| Air port: PT 1/8 \| Spindle adjustment: 48 mm \| Arm opening: 103° \| Weight: 1140 g
KJF-AR-1182		Holding capacity: 180 kgf \| Cylinder: Ø32 x 50 stroke \| Air port: PT 1/8 \| Spindle adjustment: 81 mm \| Arm opening: 103° \| Weight: 1170 g
KJF-AR-1361		Holding capacity: 360 kgf \| Cylinder: Ø40 x 75 stroke \| Air port: PT 1/4 \| Spindle adjustment: 60 mm \| Arm opening: 118° \| Weight: 2582 g
KJF-AR-1362		Holding capacity: 360 kgf \| Cylinder: Ø40 x 75 stroke \| Air port: PT 1/4 \| Spindle adjustment: 114 mm \| Arm opening: 118° \| Weight: 2647 g
KJF-AR-1451		Holding capacity: 450 kgf \| Cylinder: Ø40 x 100 stroke \| Air port: PT 1/4 \| Spindle adjustment: 103 mm \| Arm opening: 115° \| Weight: 3180 g
KJF-AR-1452		Holding capacity: 450 kgf \| Cylinder: Ø40 x 100 stroke \| Air port: PT 1/4 \| Spindle adjustment: 143 mm \| Arm opening: 115° \| Weight: 3230 g
KJF-AR-701		Holding capacity: 500 kgf \| Cylinder: Ø32 x 75 stroke \| Air port: PT 1/8 \| Spindle adjustment: N/A \| Arm opening: 92° \| Weight: 1410 g
KJF-AR-702		Holding capacity: 1000 kgf \| Cylinder: Ø40 x 100 stroke \| Air port: PT 1/4 \| Spindle adjustment: N/A \| Arm opening: 92° \| Weight: 2940 g
KJF-AR-702A		Holding capacity: 1000 kgf \| Cylinder: Ø63 x 100 stroke \| Air port: PT 3/8 \| Spindle adjustment: N/A \| Arm opening: 69.1° \| Weight: 4820 g
KJF-AR-703		Holding capacity: 2000 kgf \| Cylinder: Ø63 x 100 stroke \| Air port: PT 3/8 \| Spindle adjustment: N/A \| Arm opening: 47° \| Weight: 5930 g
KJF-AR-3070		Holding capacity: 700 kgf \| Cylinder: Ø40 x 75 stroke \| Air port: PT 1/4 \| Plunger stroke: 35 mm \| Weight: 3400 g
KJF-AR-3040		Holding capacity: 400 kgf \| Cylinder: Ø32 x 50 stroke \| Air port: PT 1/8 \| Plunger stroke: 24 mm \| Weight: 1500 g
KJF-AR-3120		Holding capacity: 1200 kgf \| Cylinder: Ø50 x 100 stroke \| Air port: PT 3/8 \| Plunger stroke: 40 mm \| Weight: 5840 g
