KJF MLC-A Multi-Link Clamp, Pneumatic, Standard Type

KJF MLC-A Multi-Link Clamp, Pneumatic, Standard Type

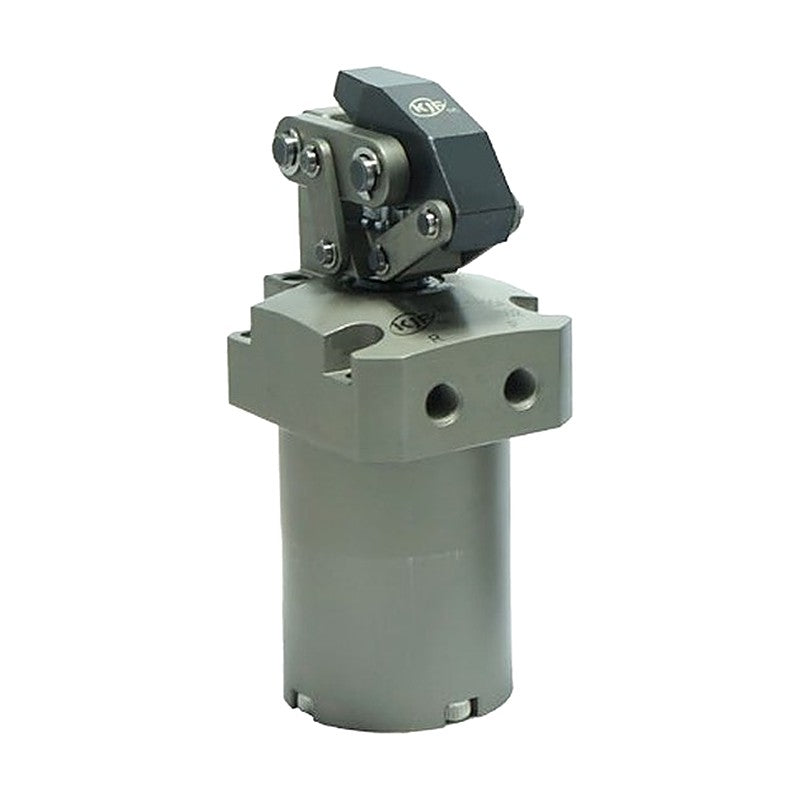

Pneumatic double-acting multi-link clamp (standard type) whose link motion lets the lever swing clear of interfering parts during workpiece loading.

Key features

  • Link motion clamps while avoiding interference
  • Gas-nitrided surface; double-acting
  • Piston diameter Ø20-50 mm
  • Manifold piping available as a customized design
  • Do not exceed the catalog K dimension by more than 30%

Specifications

Fluid Air
Operation Double-acting
Operating pressure 3-9.9 kgf/cm²
Operating temperature 0-60 °C
Surface treatment Gas nitriding
Lever Optional
Clamping force formula F = C x P / K (C = 54.9 for 2038 up to 588.0 for 5080)
Secondary-battery version Add "K" to the end of the model number for a copper/zinc-free material version (other specifications identical)
MLC-2038A Piston diameter: Ø20 mm | Housing diameter: Ø38 mm | Clamping force: 13 kgf at 5 kgf/cm² | Effective area: 3.14 cm² | Stroke: total 27.5 mm (clamp 25.0 mm, extra 2.5 mm) | Port: PT 1/8 | Weight: 0.64 kg
MLC-2547A Piston diameter: Ø25 mm | Housing diameter: Ø47 mm | Clamping force: 20 kgf at 5 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 34.0 mm (clamp 31.5 mm, extra 2.5 mm) | Port: PT 1/8 | Weight: 1.51 kg
MLC-3255A Piston diameter: Ø32 mm | Housing diameter: Ø55 mm | Clamping force: 31 kgf at 5 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 38.0 mm (clamp 35.5 mm, extra 2.5 mm) | Port: PT 1/8 | Weight: 2.22 kg
MLC-4065A Piston diameter: Ø40 mm | Housing diameter: Ø65 mm | Clamping force: 49 kgf at 5 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 44.0 mm (clamp 41.0 mm, extra 3.0 mm) | Port: PT 1/4 | Weight: 3.68 kg
MLC-5080A Piston diameter: Ø50 mm | Housing diameter: Ø80 mm | Clamping force: 79 kgf at 5 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 50.0 mm (clamp 47.0 mm, extra 3.0 mm) | Port: PT 1/4 | Weight: 5.86 kg
