KJF MLC-AE Multi-Link Clamp, Pneumatic, Magnetic Sensor Type

KJF MLC-AE Multi-Link Clamp, Pneumatic, Magnetic Sensor Type

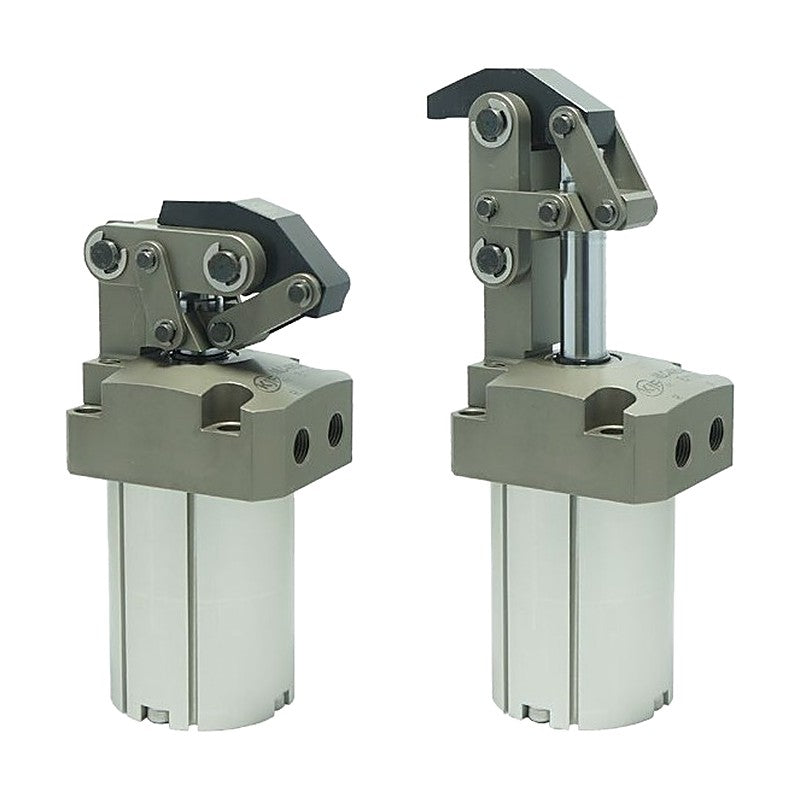

Pneumatic double-acting multi-link clamp with a built-in magnet for clamp/unclamp sensing, whose link motion lets the lever swing clear of interfering parts during loading.

Key features

  • Link motion clamps while avoiding interference
  • Built-in magnet; sensor available as an option
  • Gas-nitrided surface; double-acting
  • Piston diameter Ø20-63 mm
  • Split pin specification can be custom-made
  • Do not exceed the catalog K dimension by more than 30%

Specifications

Fluid Air
Operation Double-acting
Operating pressure 3-9.9 kgf/cm²
Operating temperature 0-60 °C
Surface treatment Gas nitriding
Lever Optional
Clamping force formula F = C x P / K (C = 54.9 for 2038 up to 1090.9 for 6395)
Secondary-battery version Add "K" to the end of the model number for a copper/zinc-free material version (other specifications identical)
MLC-2038AE Piston diameter: Ø20 mm | Housing diameter: Ø38 mm | Clamping force: 13 kgf at 5 kgf/cm² | Effective area: 3.14 cm² | Stroke: total 27.5 mm (clamp 25.0 mm, extra 2.5 mm) | Port: PT 1/8 | Weight: 0.64 kg
MLC-2547AE Piston diameter: Ø25 mm | Housing diameter: Ø47 mm | Clamping force: 20 kgf at 5 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 34.0 mm (clamp 31.5 mm, extra 2.5 mm) | Port: PT 1/8 | Weight: 1.51 kg
MLC-3255AE Piston diameter: Ø32 mm | Housing diameter: Ø55 mm | Clamping force: 31 kgf at 5 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 38.0 mm (clamp 35.5 mm, extra 2.5 mm) | Port: PT 1/8 | Weight: 2.22 kg
MLC-4065AE Piston diameter: Ø40 mm | Housing diameter: Ø65 mm | Clamping force: 49 kgf at 5 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 44.0 mm (clamp 41.0 mm, extra 3.0 mm) | Port: PT 1/4 | Weight: 3.68 kg
MLC-5080AE Piston diameter: Ø50 mm | Housing diameter: Ø80 mm | Clamping force: 79 kgf at 5 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 50.0 mm (clamp 47.0 mm, extra 3.0 mm) | Port: PT 1/4 | Weight: 5.86 kg
MLC-6395AE Piston diameter: Ø63 mm | Housing diameter: Ø95 mm | Clamping force: 136 kgf at 5 kgf/cm² | Effective area: 31.17 cm² | Stroke: total 53.5 mm (clamp 50.0 mm, extra 3.5 mm) | Port: PT 1/4 | Weight: 7.10 kg
Link ClampsKJF
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF MLC-AE Multi-Link Clamp, Pneumatic, Magnetic Sensor Type

Brand KJF·Link Clamps

Available part numbers (6)

MLC-2038AE, MLC-2547AE, MLC-3255AE, MLC-4065AE, MLC-5080AE, MLC-6395AE
