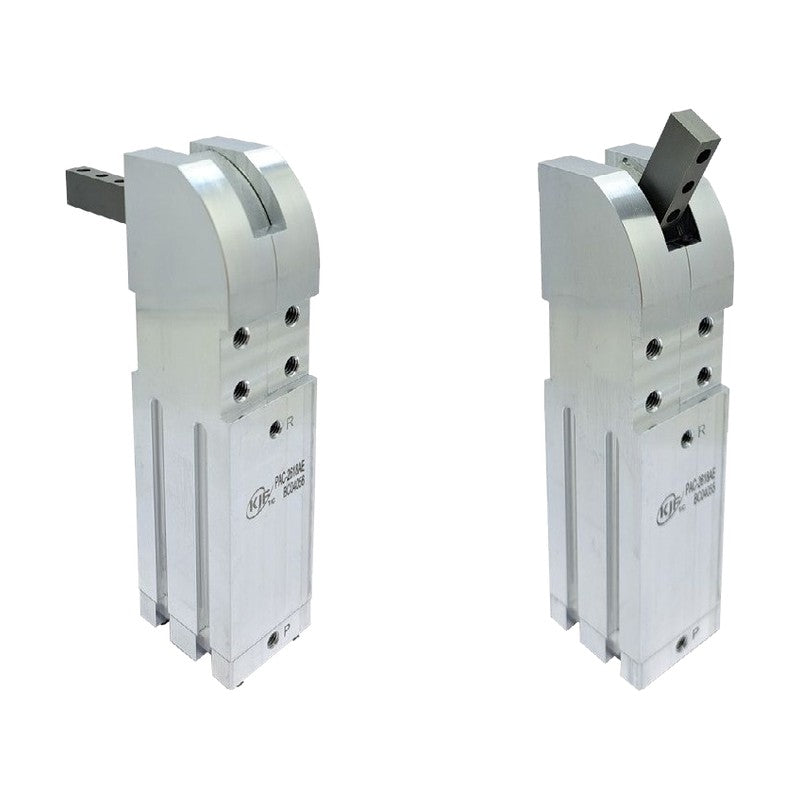

KJF PAC Power Clamp, Pneumatic

KJF PAC Power Clamp, Pneumatic

Pneumatic double-acting power clamp supplied with the clamp arm assembled, giving high clamping force from air pressure with a locking action after clamping and a built-in magnet for sensing.

Key features

  • Clamp arm assembled and supplied
  • Built-in magnet for auto switch sensing
  • Double-acting; locking function after clamping
  • Piston diameter 16-26 mm

Specifications

Fluid Air
Operating pressure 3-9.99 kgf/cm²
Operating temperature 0-60 °C
Secondary-battery version Add "K" to the end of the model number for a copper/zinc-free material version (other specifications identical)
PAC-1610AE Piston diameter: Ø16 mm | Max clamping force: 13/15/18/25 kgf at clamping points D/C/B/A (5 bar) | Max holding torque: 612 kgf·cm | Weight: 0.25 kg
PAC-2626AE Piston diameter: Ø26 mm | Max clamping force: 36/45/60/89 kgf at clamping points D/C/B/A (5 bar) | Max holding torque: 1014 kgf·cm | Weight: 0.5 kg
Power ClampsKJF
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF PAC Power Clamp, Pneumatic

Brand KJF·Power Clamps

Available part numbers (2)

PAC-1610AE, PAC-2626AE

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PAC-1610AEPiston diameter: Ø16 mm | Max clamping force: 13/15/18/25 kgf at clamping points D/C/B/A (5 bar) | Max holding torque: 612 kgf·cm | Weight: 0.25 kg
PAC-2626AEPiston diameter: Ø26 mm | Max clamping force: 36/45/60/89 kgf at clamping points D/C/B/A (5 bar) | Max holding torque: 1014 kgf·cm | Weight: 0.5 kg
