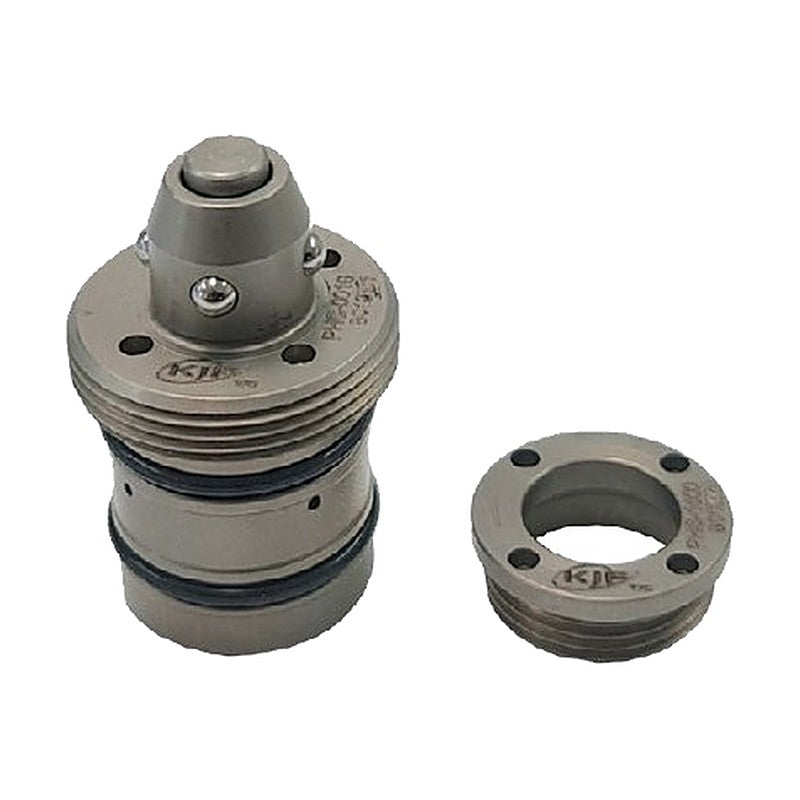

KJF PHC Pin Hole Clamp, Pneumatic Thread Type

Pneumatic single-acting pin hole clamp that locates and clamps a plate or jig through a hole at the same time, using spring-driven balls to lock and air pressure to release.

Key features

Clamps and positions in one step
Compact M22 threaded body
Single-acting: spring clamps, air pressure unclamps
Used for fixing the top plate when changing jigs or lifting objects from below

Specifications

Fluid	Air
Operating pressure	3-9.9 kgf/cm²
Operating temperature	0-70 °C
Locking force	10 kgf
Holding force	100 kgf
Repeatability	0.1 mm
Weight	40 g

PHC-0010

Body thread: M22 x 1.0 | Body diameter: Ø18 mm | Seal: S16 O-ring x 2 | Air blow tap: M5 (option)
