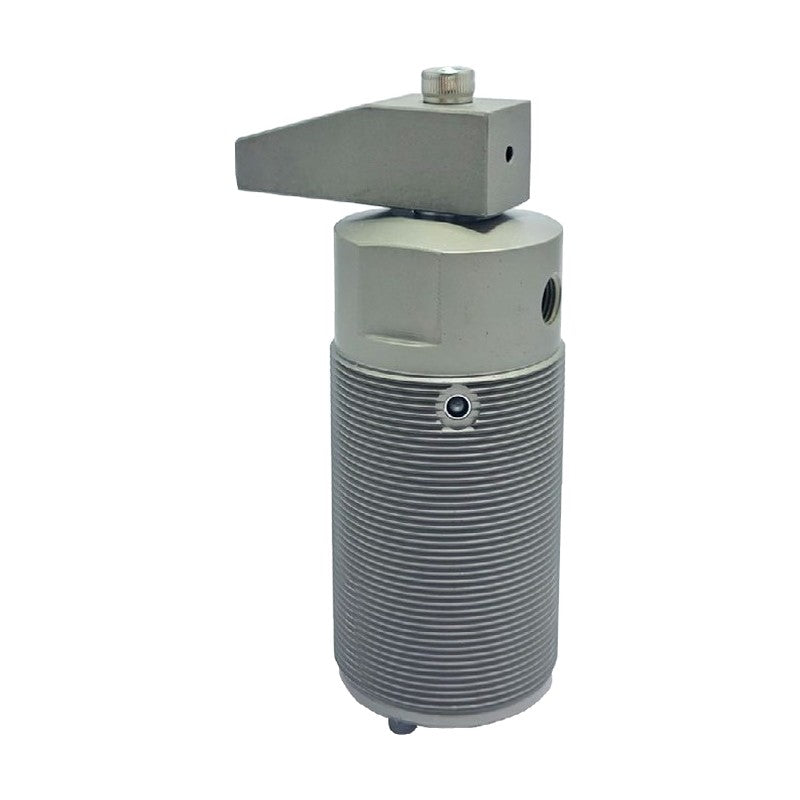

KJF SSD Parallel Swing Clamp, Pneumatic

KJF SSD Parallel Swing Clamp, Pneumatic

Pneumatic double-acting parallel swing clamp whose arm rotates 90° at one spot with zero stroke and then clamps in a straight line, avoiding interference above the workpiece.

Key features

  • Swing with zero stroke, then straight clamping stroke, to avoid upper interference
  • For low clamping force with pneumatic operation
  • Gas-nitrided surface; double-acting
  • Threaded body for easy installation
  • Lever is an option item; fasten the lever bolts with the arm held fixed
  • A flow control valve is recommended

Specifications

Fluid Air
Operating pressure 3-9.9 kgf/cm²
Operating temperature 0-60 °C
Swing angle 90° standard (e.g. -30 suffix = 30°)
Swing angle tolerance ±3° (repeatability ±0.5°)
Secondary-battery version Add "K" to the end of the model number for a copper/zinc-free material version (other specifications identical)
SSDR-2508A Swing direction: clockwise (right) | Piston diameter: Ø25 mm | Max cylinder force: 41.2 kgf | Effective area: 4.9 cm² | Stroke: straight 8 mm, swing 0 mm | Body thread: M40 x 1.5 | Port: M5 | Weight: 0.8 kg
SSDR-3208A Swing direction: clockwise (right) | Piston diameter: Ø32 mm | Max cylinder force: 68.4 kgf | Effective area: 6.9 cm² | Stroke: straight 8 mm, swing 0 mm | Body thread: M45 x 1.5 | Port: PT 1/8 | Weight: 1.1 kg
SSDR-4010A Swing direction: clockwise (right) | Piston diameter: Ø40 mm | Max cylinder force: 106.9 kgf | Effective area: 10.8 cm² | Stroke: straight 10 mm, swing 0 mm | Body thread: M60 x 2.0 | Port: PT 1/8 | Weight: 4.1 kg
SSDR-5010A Swing direction: clockwise (right) | Piston diameter: Ø50 mm | Max cylinder force: 169.2 kgf | Effective area: 17.1 cm² | Stroke: straight 10 mm, swing 0 mm | Body thread: M70 x 2.0 | Port: PT 1/8 | Weight: 4.5 kg
SSDR-6325A Swing direction: clockwise (right) | Body thread: M90 x 2.0 | Port: PT 1/4 | Note: Listed in dimension table only
SSDL-2508A Swing direction: counterclockwise (left) | Piston diameter: Ø25 mm | Max cylinder force: 41.2 kgf | Effective area: 4.9 cm² | Stroke: straight 8 mm, swing 0 mm | Body thread: M40 x 1.5 | Port: M5 | Weight: 0.8 kg
SSDL-3208A Swing direction: counterclockwise (left) | Piston diameter: Ø32 mm | Max cylinder force: 68.4 kgf | Effective area: 6.9 cm² | Stroke: straight 8 mm, swing 0 mm | Body thread: M45 x 1.5 | Port: PT 1/8 | Weight: 1.1 kg
SSDL-4010A Swing direction: counterclockwise (left) | Piston diameter: Ø40 mm | Max cylinder force: 106.9 kgf | Effective area: 10.8 cm² | Stroke: straight 10 mm, swing 0 mm | Body thread: M60 x 2.0 | Port: PT 1/8 | Weight: 4.1 kg
SSDL-5010A Swing direction: counterclockwise (left) | Piston diameter: Ø50 mm | Max cylinder force: 169.2 kgf | Effective area: 17.1 cm² | Stroke: straight 10 mm, swing 0 mm | Body thread: M70 x 2.0 | Port: PT 1/8 | Weight: 4.5 kg
SSDL-6325A Swing direction: counterclockwise (left) | Body thread: M90 x 2.0 | Port: PT 1/4 | Note: Listed in dimension table only
Swing ClampsKJF
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF SSD Parallel Swing Clamp, Pneumatic

Brand KJF·Swing Clamps

Available part numbers (10)

SSDR-2508A, SSDR-3208A, SSDR-4010A, SSDR-5010A, SSDR-6325A, SSDL-2508A, SSDL-3208A, SSDL-4010A, SSDL-5010A, SSDL-6325A
