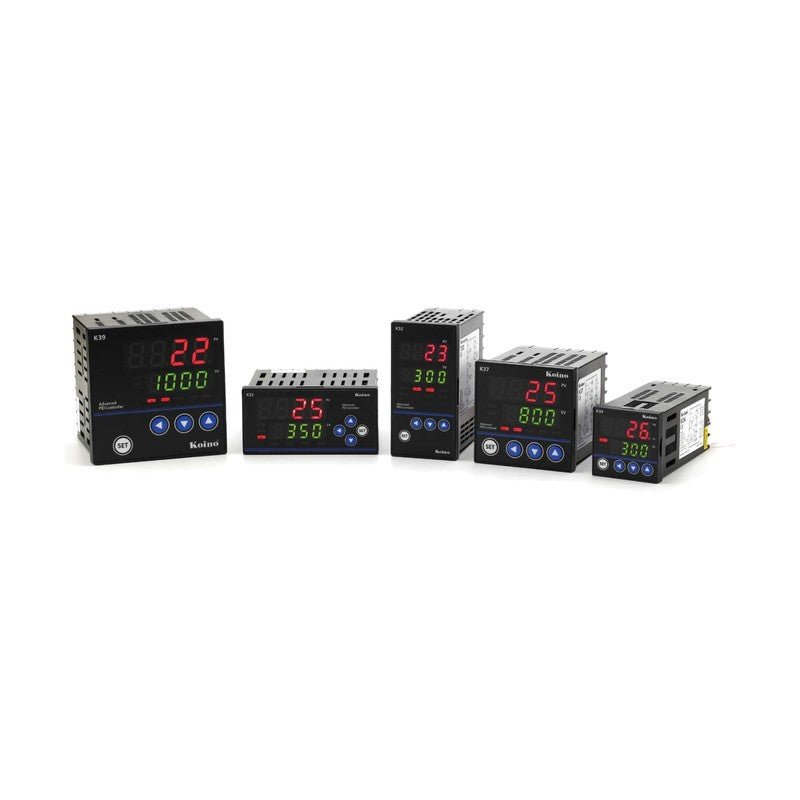

KOINO K30 Series PID Temperature Controllers

KOINO K30 Series PID Temperature Controllers

Panel-mount digital PID temperature controller with multi-input (24 types), multi-output and built-in timer function.

Key features

  • Multi input/output (24 input types, 4 output types). 20 alarm and event types, up to 3 outputs
  • Super 2 degree-of-freedom PID algorithm
  • Timer function (6 types) and external contact input (DI)
  • Loop break alarm (LBA), 2-zone PID, SV1/SV2 switching
  • Retransmission output

Specifications

Supply Voltage 100-240 VAC 50/60 Hz or 24 VAC/VDC
Power Consumption 5 VA max.
Input TC (K, J, T, E, R, B, S, L, N, U, C, D), RTD (KPt100, JPt100, Pt100), 4-20 mA, 1-5 VDC, -10-20 mV, 0-100 mV
Display Accuracy +/-0.3% of FS +1 digit
Sampling Period 50-250 ms
Control Output Relay 1c 250 VAC 3 A; SSR 15 VDC 25 mA; current 4-20 mA
Control Method Super 2 degree-of-freedom PID, auto-tuning
Alarm Output 1a 250 VAC 3 A
Ambient -10 to +50 C, 25-85% RH
Certification CE
K32 Size: 48 x 96 x 77 mm | Options: S00 | Weight: 230 g
K33 Size: 96 x 48 x 77 mm | Options: S00 | Weight: 230 g
K34 Size: 48 x 48 x 77 mm | Options: S00 / S10 / S30 | Weight: 140 g
K37 Size: 72 x 72 x 77 mm | Options: S00 / S30 | Weight: 230 g
K39 Size: 96 x 96 x 77 mm | Options: S00 | Weight: 320 g
Temperature ControllersKOINO
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO K30 Series PID Temperature Controllers

Brand KOINO·Temperature Controllers

Available part numbers (5)

K32, K33, K34, K37, K39

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K32Size: 48 x 96 x 77 mm | Options: S00 | Weight: 230 g
K33Size: 96 x 48 x 77 mm | Options: S00 | Weight: 230 g
K34Size: 48 x 48 x 77 mm | Options: S00 / S10 / S30 | Weight: 140 g
K37Size: 72 x 72 x 77 mm | Options: S00 / S30 | Weight: 230 g
K39Size: 96 x 96 x 77 mm | Options: S00 | Weight: 320 g
