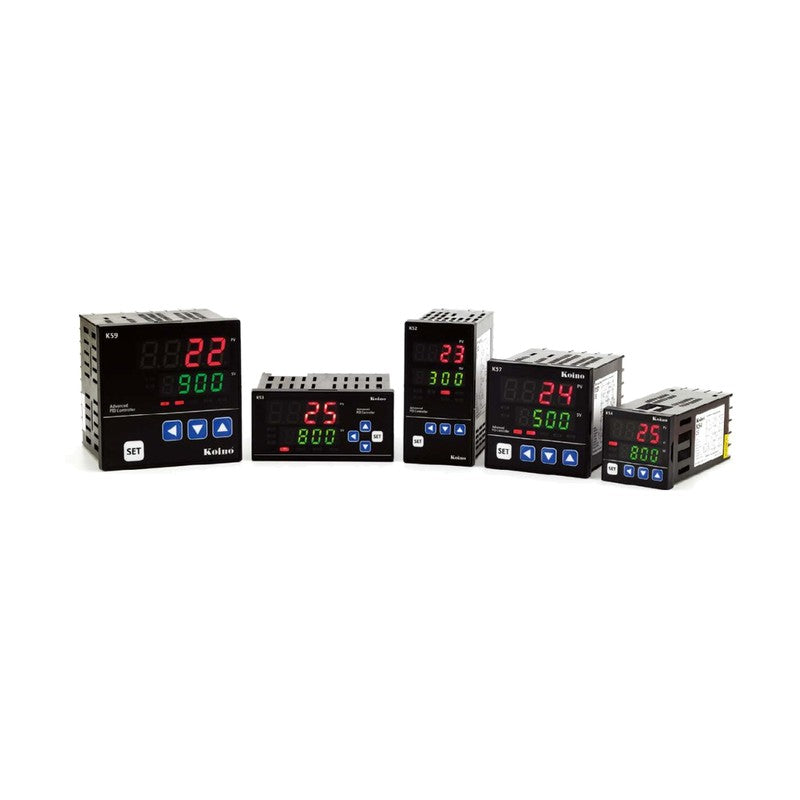

KOINO K50 Series PID Temperature Controllers with RS-485

KOINO K50 Series PID Temperature Controllers with RS-485

Panel-mount digital PID temperature controller with multi-input, isolated RS-485 communication and heater break alarm options.

Key features

  • Multi input/output (24 input types, 4 output types)
  • Fully isolated RS-485 communication (PC/TL-Link, Modbus ASCII/RTU)
  • Super 2 degree-of-freedom PID algorithm
  • Ramp, 3-zone PID, Fast and Easy-menu functions
  • Sync-Master/Slave synchronization of up to 250 units
  • Heater break alarm (HBA) and heater current monitoring

Specifications

Supply Voltage 100-240 VAC 50/60 Hz (option: 24 VAC/VDC)
Power Consumption 5 VA max.
Input TC (K, J, T, E, R, B, S, L, N, U, C, D), RTD (KPt100, JPt100, Pt100), 4-20 mA, 1-5 VDC, -10-20 mV, 0-100 mV
Display Accuracy +/-0.3% of FS +1 digit
Sampling Period 50-250 ms
Control Output Relay 1c 250 VAC 3 A; SSR 15 VDC 25 mA; current 4-20 mA
Control Method Super 2 degree-of-freedom PID, Fast and auto-tuning
Alarm Output 1a 250 VAC 3 A
Ambient -10 to +50 C, 25-85% RH
Certification CE
Communication Isolated 2-wire RS-485, max. 19,200 bps, up to 99 units
K52 Size: 48 x 96 x 77 mm | Options: S00 / S10 | Weight: 230 g
K53 Size: 96 x 48 x 77 mm | Options: S00 / S10 | Weight: 230 g
K54 Size: 48 x 48 x 77 mm | Options: S00 / S10 / S20 / S30 / S40 / S50 / S60 / S70 | Weight: 140 g
K57 Size: 72 x 72 x 77 mm | Options: S00 / S10 / S20 | Weight: 230 g
K59 Size: 96 x 96 x 77 mm | Options: S00 / S10 | Weight: 320 g
Temperature ControllersKOINO
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO K50 Series PID Temperature Controllers with RS-485

Brand KOINO·Temperature Controllers

Available part numbers (5)

K52, K53, K54, K57, K59

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K52Size: 48 x 96 x 77 mm | Options: S00 / S10 | Weight: 230 g
K53Size: 96 x 48 x 77 mm | Options: S00 / S10 | Weight: 230 g
K54Size: 48 x 48 x 77 mm | Options: S00 / S10 / S20 / S30 / S40 / S50 / S60 / S70 | Weight: 140 g
K57Size: 72 x 72 x 77 mm | Options: S00 / S10 / S20 | Weight: 230 g
K59Size: 96 x 96 x 77 mm | Options: S00 / S10 | Weight: 320 g
