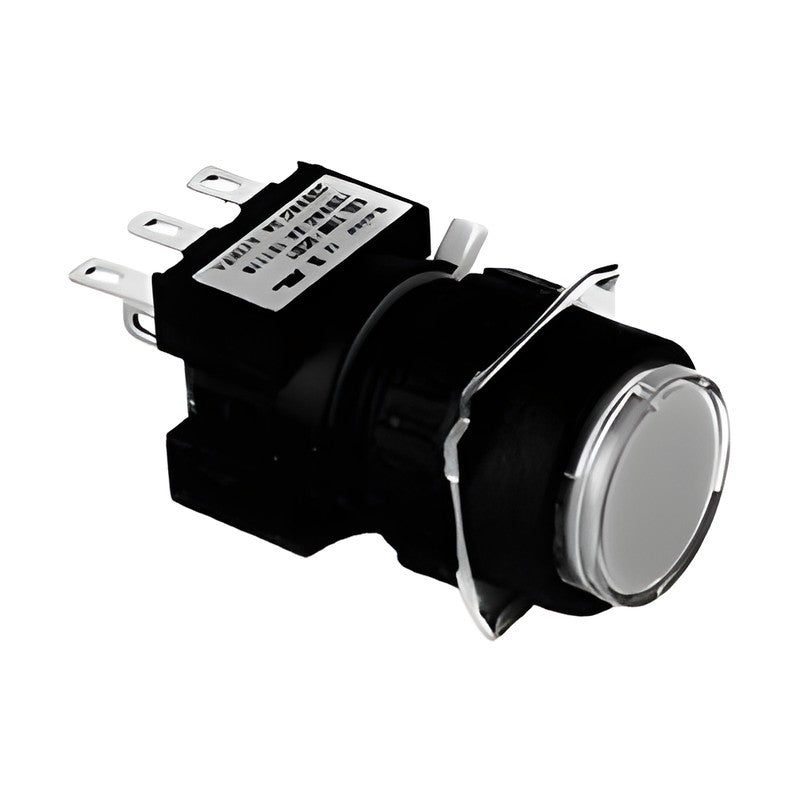

KOINO KBL16 Ø16 K Series LED Illuminated Push Button Switches

KOINO KBL16 Ø16 K Series LED Illuminated Push Button Switches

Ø16 mm modular LED illuminated push button switches in round, square and rectangular shapes, momentary or alternate action.

Key features

  • KC, UL/cUL, CE and CCC certified
  • For use on a flat surface of a type 1 enclosure
  • Silver-alloy contacts suitable from general machinery to low-current circuits
  • Contact blocks up to 2c

Specifications

Mounting Hole Ø16 mm
Light Source L: LED
Input Voltage Full voltage 1C: 6 V, 2C: 12 V, 3C: 24 V
Button Colour Red, Green, Yellow, Orange, White, Blue (R/G/Y/O/W/B)
Contact Rating 250 VAC 3 A (resistive)
Contact Resistance 30 mΩ max. (initial)
Operating Temperature -15 to +55 °C (no icing)
Electrical Life 100,000 operations min.
Protection IP40
Material Body: Nylon glass, Ring: Nylon glass, Cap: PC
Certification KC, UL/cUL (UL508), CE, CCC
KBL16M Shape: Round, head Ø18 mm (standard) | Operation: Momentary push button
KBL16AT Shape: Round, head Ø18 mm (standard) | Operation: Push-lock, push-release
KBL160M Shape: Round, head Ø25 mm (flush) | Operation: Momentary push button
KBL160AT Shape: Round, head Ø25 mm (flush) | Operation: Push-lock, push-release
KBL161M Shape: Round, head Ø25 mm (projecting) | Operation: Momentary push button
KBL161AT Shape: Round, head Ø25 mm (projecting) | Operation: Push-lock, push-release
KBL16SM Shape: Square | Operation: Momentary push button
KBL16SAT Shape: Square | Operation: Push-lock, push-release
KBL16RM Shape: Rectangular | Operation: Momentary push button
KBL16RAT Shape: Rectangular | Operation: Push-lock, push-release
Push Button SwitchesKOINO
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KBL16 Ø16 K Series LED Illuminated Push Button Switches

Brand KOINO·Push Button Switches

Available part numbers (10)

KBL16M, KBL16AT, KBL160M, KBL160AT, KBL161M, KBL161AT, KBL16SM, KBL16SAT, KBL16RM, KBL16RAT

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KBL16MShape: Round, head Ø18 mm (standard) | Operation: Momentary push button
KBL16ATShape: Round, head Ø18 mm (standard) | Operation: Push-lock, push-release
KBL160MShape: Round, head Ø25 mm (flush) | Operation: Momentary push button
KBL160ATShape: Round, head Ø25 mm (flush) | Operation: Push-lock, push-release
KBL161MShape: Round, head Ø25 mm (projecting) | Operation: Momentary push button
KBL161ATShape: Round, head Ø25 mm (projecting) | Operation: Push-lock, push-release
KBL16SMShape: Square | Operation: Momentary push button
KBL16SATShape: Square | Operation: Push-lock, push-release
KBL16RMShape: Rectangular | Operation: Momentary push button
KBL16RATShape: Rectangular | Operation: Push-lock, push-release
