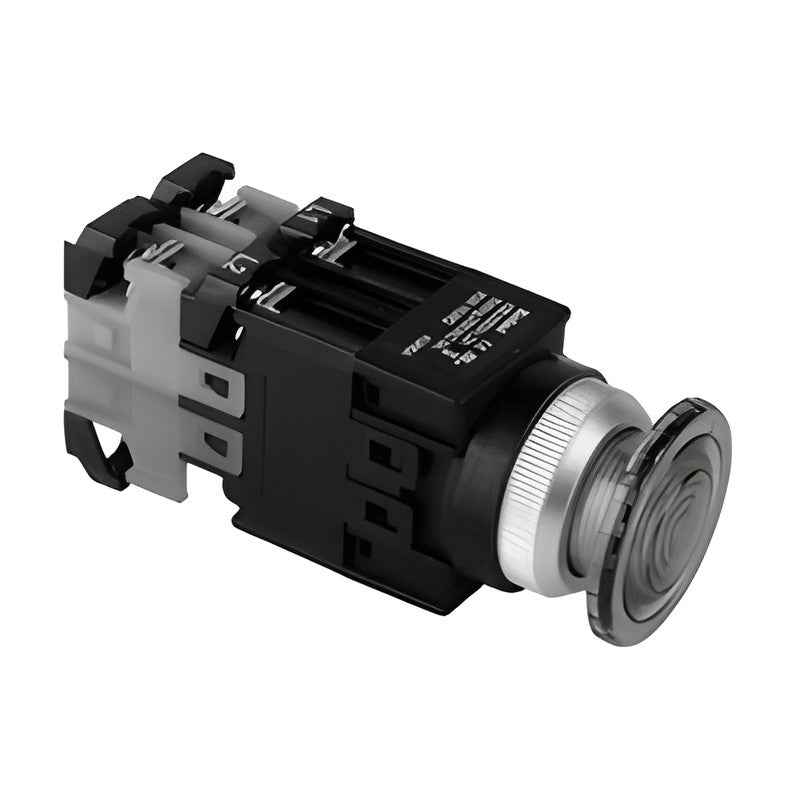

KOINO KBL25 Ø25 Illuminated Mushroom Push Button Switches

KOINO KBL25 Ø25 Illuminated Mushroom Push Button Switches

Ø25 mm illuminated mushroom push button switches in momentary, push-lock push-release, pull-release and turn-release versions.

Key features

  • KC, CE, UL/cUL and CCC certified
  • Silver-alloy contacts suitable from general machinery to low-current circuits
  • Standard IP40 and protected IP65 versions
  • Terminals with protective structure

Specifications

Contact Rating 250 VAC 6 A (resistive)
Insulation Resistance 100 MΩ min. (500 VDC)
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -25 to +50 °C (no icing)
Electrical Life 100,000 operations min.
Protection IP40 standard / IP65 W type
Light Source Filament lamp (no suffix) or LED (L)
Transformer Secondary 6 V
Material Body: Nylon glass, Ring: ABS, Cap: AS
Certification KC, UL/cUL, CE, CCC
Mounting Hole Ø25 mm
KBL25EM-1A Operation: Illuminated mushroom momentary | Voltage: 110 VAC (transformer)
KBL25EM-2A Operation: Illuminated mushroom momentary | Voltage: 220 VAC (transformer)
KBL25EM-3A Operation: Illuminated mushroom momentary | Voltage: 230 VAC (transformer)
KBL25EA-1A Operation: Illuminated mushroom push-lock, push-release | Voltage: 110 VAC (transformer)
KBL25EA-2A Operation: Illuminated mushroom push-lock, push-release | Voltage: 220 VAC (transformer)
KBL25EA-3A Operation: Illuminated mushroom push-lock, push-release | Voltage: 230 VAC (transformer)
KBL25EP-1A Operation: Illuminated mushroom push-lock, pull-release | Voltage: 110 VAC (transformer)
KBL25EP-2A Operation: Illuminated mushroom push-lock, pull-release | Voltage: 220 VAC (transformer)
KBL25EP-3A Operation: Illuminated mushroom push-lock, pull-release | Voltage: 230 VAC (transformer)
KBL25ER-1A Operation: Illuminated mushroom push-lock, turn-release | Voltage: 110 VAC (transformer)
KBL25ER-2A Operation: Illuminated mushroom push-lock, turn-release | Voltage: 220 VAC (transformer)
KBL25ER-3A Operation: Illuminated mushroom push-lock, turn-release | Voltage: 230 VAC (transformer)
KBL25EM-1C Operation: Illuminated mushroom momentary | Voltage: 6 V (full voltage)
KBL25EM-2C Operation: Illuminated mushroom momentary | Voltage: 12 V (full voltage)
KBL25EM-3C Operation: Illuminated mushroom momentary | Voltage: 24 V (full voltage)
KBL25EA-1C Operation: Illuminated mushroom push-lock, push-release | Voltage: 6 V (full voltage)
KBL25EA-2C Operation: Illuminated mushroom push-lock, push-release | Voltage: 12 V (full voltage)
KBL25EA-3C Operation: Illuminated mushroom push-lock, push-release | Voltage: 24 V (full voltage)
KBL25EP-1C Operation: Illuminated mushroom push-lock, pull-release | Voltage: 6 V (full voltage)
KBL25EP-2C Operation: Illuminated mushroom push-lock, pull-release | Voltage: 12 V (full voltage)
KBL25EP-3C Operation: Illuminated mushroom push-lock, pull-release | Voltage: 24 V (full voltage)
KBL25ER-1C Operation: Illuminated mushroom push-lock, turn-release | Voltage: 6 V (full voltage)
KBL25ER-2C Operation: Illuminated mushroom push-lock, turn-release | Voltage: 12 V (full voltage)
KBL25ER-3C Operation: Illuminated mushroom push-lock, turn-release | Voltage: 24 V (full voltage)
Push Button SwitchesKOINO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KBL25 Ø25 Illuminated Mushroom Push Button Switches

Brand KOINO·Push Button Switches

Available part numbers (24)

KBL25EM-1A, KBL25EM-2A, KBL25EM-3A, KBL25EA-1A, KBL25EA-2A, KBL25EA-3A, KBL25EP-1A, KBL25EP-2A, KBL25EP-3A, KBL25ER-1A + 14 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KBL25EM-1AOperation: Illuminated mushroom momentary | Voltage: 110 VAC (transformer)
KBL25EM-2AOperation: Illuminated mushroom momentary | Voltage: 220 VAC (transformer)
KBL25EM-3AOperation: Illuminated mushroom momentary | Voltage: 230 VAC (transformer)
KBL25EA-1AOperation: Illuminated mushroom push-lock, push-release | Voltage: 110 VAC (transformer)
KBL25EA-2AOperation: Illuminated mushroom push-lock, push-release | Voltage: 220 VAC (transformer)
KBL25EA-3AOperation: Illuminated mushroom push-lock, push-release | Voltage: 230 VAC (transformer)
KBL25EP-1AOperation: Illuminated mushroom push-lock, pull-release | Voltage: 110 VAC (transformer)
KBL25EP-2AOperation: Illuminated mushroom push-lock, pull-release | Voltage: 220 VAC (transformer)
KBL25EP-3AOperation: Illuminated mushroom push-lock, pull-release | Voltage: 230 VAC (transformer)
KBL25ER-1AOperation: Illuminated mushroom push-lock, turn-release | Voltage: 110 VAC (transformer)
KBL25ER-2AOperation: Illuminated mushroom push-lock, turn-release | Voltage: 220 VAC (transformer)
KBL25ER-3AOperation: Illuminated mushroom push-lock, turn-release | Voltage: 230 VAC (transformer)
KBL25EM-1COperation: Illuminated mushroom momentary | Voltage: 6 V (full voltage)
KBL25EM-2COperation: Illuminated mushroom momentary | Voltage: 12 V (full voltage)
KBL25EM-3COperation: Illuminated mushroom momentary | Voltage: 24 V (full voltage)
KBL25EA-1COperation: Illuminated mushroom push-lock, push-release | Voltage: 6 V (full voltage)
KBL25EA-2COperation: Illuminated mushroom push-lock, push-release | Voltage: 12 V (full voltage)
KBL25EA-3COperation: Illuminated mushroom push-lock, push-release | Voltage: 24 V (full voltage)
KBL25EP-1COperation: Illuminated mushroom push-lock, pull-release | Voltage: 6 V (full voltage)
KBL25EP-2COperation: Illuminated mushroom push-lock, pull-release | Voltage: 12 V (full voltage)
KBL25EP-3COperation: Illuminated mushroom push-lock, pull-release | Voltage: 24 V (full voltage)
KBL25ER-1COperation: Illuminated mushroom push-lock, turn-release | Voltage: 6 V (full voltage)
KBL25ER-2COperation: Illuminated mushroom push-lock, turn-release | Voltage: 12 V (full voltage)
KBL25ER-3COperation: Illuminated mushroom push-lock, turn-release | Voltage: 24 V (full voltage)
