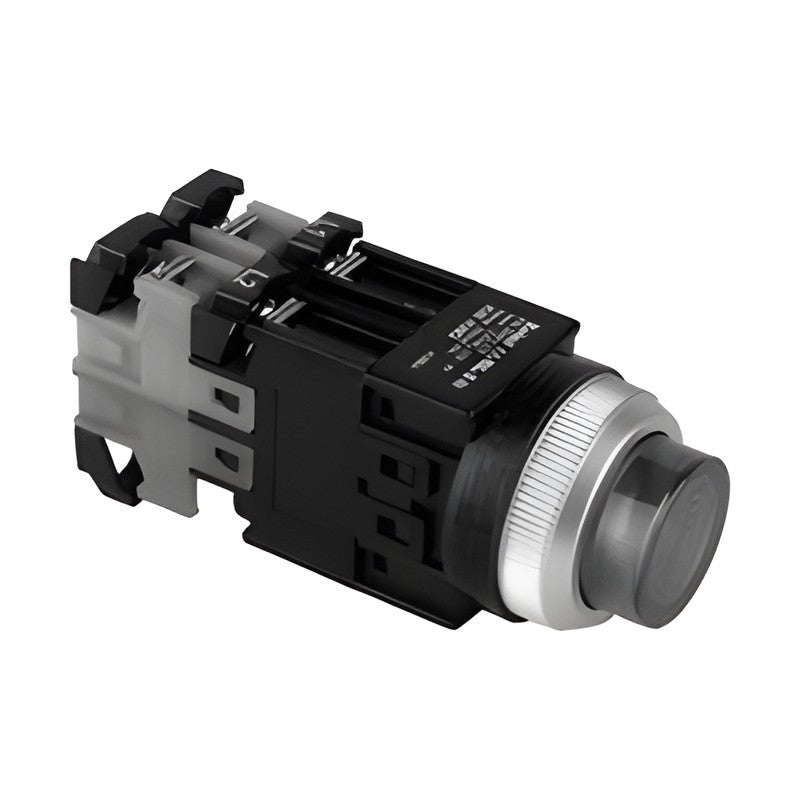

KOINO KBL30 Ø30 Illuminated Push Button Switches

KOINO KBL30 Ø30 Illuminated Push Button Switches

Ø30 mm illuminated push button switches, standard or guarded, momentary or push-lock, in transformer or full-voltage versions.

Key features

  • KC, CE, UL/cUL and CCC certified
  • Silver-alloy contacts suitable from general machinery to low-current circuits
  • Standard IP40 and protected IP65 versions
  • Terminals with protective structure

Specifications

Contact Rating 250 VAC 6 A (resistive)
Insulation Resistance 100 MΩ min. (500 VDC)
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -25 to +50 °C (no icing)
Electrical Life 100,000 operations min.
Protection IP40 standard / IP65 W type
Light Source Filament lamp (no suffix) or LED (L)
Transformer Secondary 6 V
Material Body: Nylon glass, Ring: ABS, Cap: AS
Certification KC, UL/cUL, CE, CCC
Mounting Hole Ø30 mm
KBL30M-1A Operation: Illuminated momentary push button | Voltage: 110 VAC (transformer)
KBL30M-2A Operation: Illuminated momentary push button | Voltage: 220 VAC (transformer)
KBL30M-3A Operation: Illuminated momentary push button | Voltage: 230 VAC (transformer)
KBL30AT-1A Operation: Illuminated push-lock, push-release | Voltage: 110 VAC (transformer)
KBL30AT-2A Operation: Illuminated push-lock, push-release | Voltage: 220 VAC (transformer)
KBL30AT-3A Operation: Illuminated push-lock, push-release | Voltage: 230 VAC (transformer)
KBL30MP-1A Operation: Guarded illuminated momentary push button | Voltage: 110 VAC (transformer)
KBL30MP-2A Operation: Guarded illuminated momentary push button | Voltage: 220 VAC (transformer)
KBL30MP-3A Operation: Guarded illuminated momentary push button | Voltage: 230 VAC (transformer)
KBL30AP-1A Operation: Guarded illuminated push-lock, push-release | Voltage: 110 VAC (transformer)
KBL30AP-2A Operation: Guarded illuminated push-lock, push-release | Voltage: 220 VAC (transformer)
KBL30AP-3A Operation: Guarded illuminated push-lock, push-release | Voltage: 230 VAC (transformer)
KBL30M-1C Operation: Illuminated momentary push button | Voltage: 6 V (full voltage)
KBL30M-2C Operation: Illuminated momentary push button | Voltage: 12 V (full voltage)
KBL30M-3C Operation: Illuminated momentary push button | Voltage: 24 V (full voltage)
KBL30AT-1C Operation: Illuminated push-lock, push-release | Voltage: 6 V (full voltage)
KBL30AT-2C Operation: Illuminated push-lock, push-release | Voltage: 12 V (full voltage)
KBL30AT-3C Operation: Illuminated push-lock, push-release | Voltage: 24 V (full voltage)
KBL30MP-1C Operation: Guarded illuminated momentary push button | Voltage: 6 V (full voltage)
KBL30MP-2C Operation: Guarded illuminated momentary push button | Voltage: 12 V (full voltage)
KBL30MP-3C Operation: Guarded illuminated momentary push button | Voltage: 24 V (full voltage)
KBL30AP-1C Operation: Guarded illuminated push-lock, push-release | Voltage: 6 V (full voltage)
KBL30AP-2C Operation: Guarded illuminated push-lock, push-release | Voltage: 12 V (full voltage)
KBL30AP-3C Operation: Guarded illuminated push-lock, push-release | Voltage: 24 V (full voltage)
