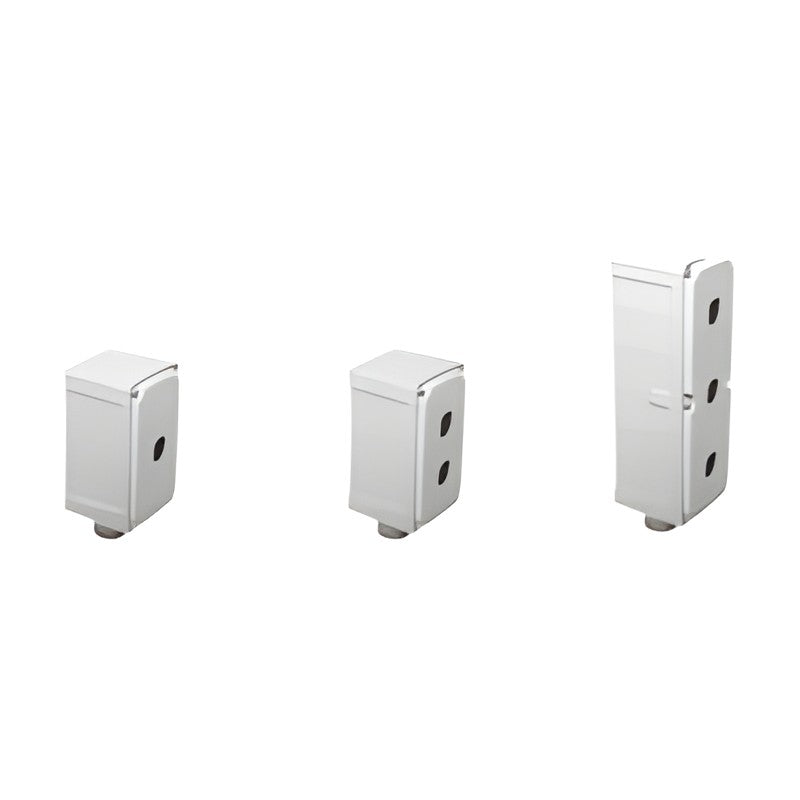

KOINO KCB-D Series IP66 Aluminum Die-Cast Control Boxes

KOINO KCB-D Series IP66 Aluminum Die-Cast Control Boxes

Waterproof aluminum die-cast push button control boxes with 1 to 4 holes for 22, 25 or 30 mm operators.

Key features

  • Waterproof design (IP66)
  • Aluminum die-cast: lightweight and strong
  • Ivory painted body for corrosion protection. 1 to 4 mounting holes

Specifications

Material Aluminum die-cast (ivory paint)
Protection IP66
Depth 85 mm
Cable entry PF3/4
Cover screws M5 x 19.5 mm (4 pcs)
KCB-221D Holes: 1 | Hole diameter: 22 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 614 g
KCB-222D Holes: 2 | Hole diameter: 22 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 606 g
KCB-223D Holes: 3 | Hole diameter: 22 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 863 g
KCB-224D Holes: 4 | Hole diameter: 22 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 853 g
KCB-251D Holes: 1 | Hole diameter: 25 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 603 g
KCB-252D Holes: 2 | Hole diameter: 25 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 602 g
KCB-253D Holes: 3 | Hole diameter: 25 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 866 g
KCB-254D Holes: 4 | Hole diameter: 25 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 864 g
KCB-301D Holes: 1 | Hole diameter: 30 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 602 g
KCB-302D Holes: 2 | Hole diameter: 30 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 601 g
KCB-303D Holes: 3 | Hole diameter: 30 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 856 g
KCB-304D Holes: 4 | Hole diameter: 30 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 855 g
Control BoxesKOINO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KCB-D Series IP66 Aluminum Die-Cast Control Boxes

Brand KOINO·Control Boxes

Available part numbers (12)

KCB-221D, KCB-222D, KCB-223D, KCB-224D, KCB-251D, KCB-252D, KCB-253D, KCB-254D, KCB-301D, KCB-302D + 2 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KCB-221DHoles: 1 | Hole diameter: 22 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 614 g
KCB-222DHoles: 2 | Hole diameter: 22 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 606 g
KCB-223DHoles: 3 | Hole diameter: 22 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 863 g
KCB-224DHoles: 4 | Hole diameter: 22 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 853 g
KCB-251DHoles: 1 | Hole diameter: 25 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 603 g
KCB-252DHoles: 2 | Hole diameter: 25 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 602 g
KCB-253DHoles: 3 | Hole diameter: 25 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 866 g
KCB-254DHoles: 4 | Hole diameter: 25 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 864 g
KCB-301DHoles: 1 | Hole diameter: 30 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 602 g
KCB-302DHoles: 2 | Hole diameter: 30 mm | Size AxB: 180.5 x 150 mm | Weight: Approx. 601 g
KCB-303DHoles: 3 | Hole diameter: 30 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 856 g
KCB-304DHoles: 4 | Hole diameter: 30 mm | Size AxB: 280.5 x 250 mm | Weight: Approx. 855 g
