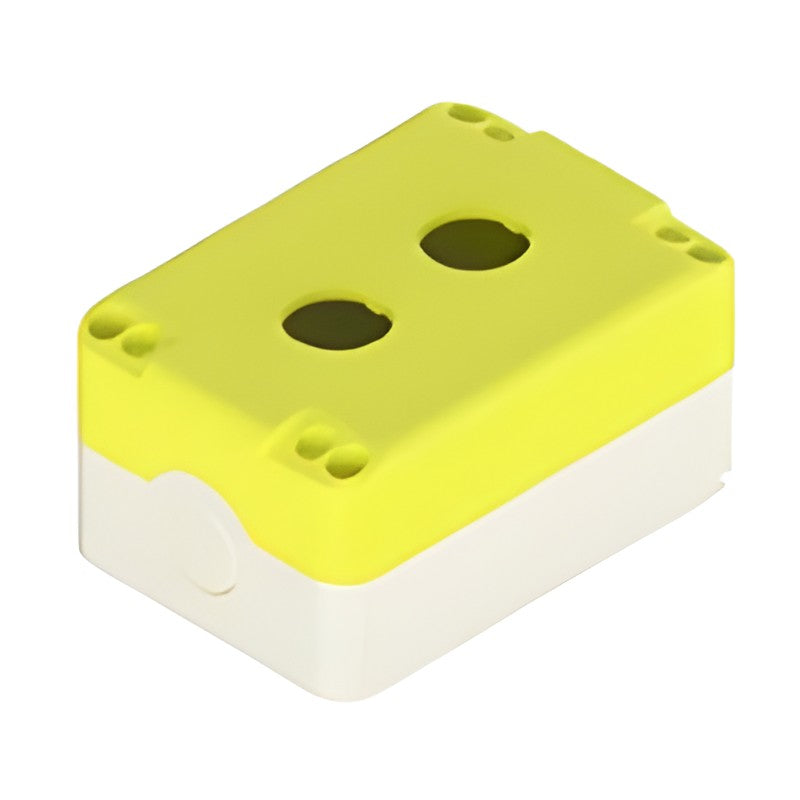

KOINO KCB-P Series Plastic Control Boxes (55 mm Height)
KOINO KCB-P Series Plastic Control Boxes (55 mm Height)
Waterproof plastic push button control boxes, 55 mm high, with 1 to 4 holes for 22, 25 or 30 mm operators.
Key features
- Plastic construction: light and robust
- IP66 waterproof
- ABS flame-retardant material (yellow/ivory)
- Magnet-base (M) option per ordering chart
Specifications
| Material | Plastic (ABS, flame retardant) |
|---|---|
| Protection | IP66 |
| Height | 55 mm |
| KCB-221P | Holes: 1 | Hole diameter: 22 mm | Size AxB: 86 x 71 mm | |
| KCB-222P | Holes: 2 | Hole diameter: 22 mm | Size AxB: 126 x 111 mm | |
| KCB-223P | Holes: 3 | Hole diameter: 22 mm | Size AxB: 166 x 151 mm | |
| KCB-224P | Holes: 4 | Hole diameter: 22 mm | Size AxB: 206 x 191 mm | |
| KCB-251P | Holes: 1 | Hole diameter: 25 mm | Size AxB: 86 x 71 mm | |
| KCB-252P | Holes: 2 | Hole diameter: 25 mm | Size AxB: 126 x 111 mm | |
| KCB-253P | Holes: 3 | Hole diameter: 25 mm | Size AxB: 166 x 151 mm | |
| KCB-254P | Holes: 4 | Hole diameter: 25 mm | Size AxB: 206 x 191 mm | |
| KCB-301P | Holes: 1 | Hole diameter: 30 mm | Size AxB: 86 x 71 mm | |
| KCB-302P | Holes: 2 | Hole diameter: 30 mm | Size AxB: 126 x 111 mm | |
| KCB-303P | Holes: 3 | Hole diameter: 30 mm | Size AxB: 166 x 151 mm | |
| KCB-304P | Holes: 4 | Hole diameter: 30 mm | Size AxB: 206 x 191 mm |
Control BoxesKOINO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KOINO KCB-P Series Plastic Control Boxes (55 mm Height)
Available part numbers (12)
KCB-221P, KCB-222P, KCB-223P, KCB-224P, KCB-251P, KCB-252P, KCB-253P, KCB-254P, KCB-301P, KCB-302P + 2 more — see full table ↓
How to order
Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KOINO
Control Boxes
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KCB-221P | Holes: 1 | Hole diameter: 22 mm | Size AxB: 86 x 71 mm | ||
| KCB-222P | Holes: 2 | Hole diameter: 22 mm | Size AxB: 126 x 111 mm | ||
| KCB-223P | Holes: 3 | Hole diameter: 22 mm | Size AxB: 166 x 151 mm | ||
| KCB-224P | Holes: 4 | Hole diameter: 22 mm | Size AxB: 206 x 191 mm | ||
| KCB-251P | Holes: 1 | Hole diameter: 25 mm | Size AxB: 86 x 71 mm | ||
| KCB-252P | Holes: 2 | Hole diameter: 25 mm | Size AxB: 126 x 111 mm | ||
| KCB-253P | Holes: 3 | Hole diameter: 25 mm | Size AxB: 166 x 151 mm | ||
| KCB-254P | Holes: 4 | Hole diameter: 25 mm | Size AxB: 206 x 191 mm | ||
| KCB-301P | Holes: 1 | Hole diameter: 30 mm | Size AxB: 86 x 71 mm | ||
| KCB-302P | Holes: 2 | Hole diameter: 30 mm | Size AxB: 126 x 111 mm | ||
| KCB-303P | Holes: 3 | Hole diameter: 30 mm | Size AxB: 166 x 151 mm | ||
| KCB-304P | Holes: 4 | Hole diameter: 30 mm | Size AxB: 206 x 191 mm |
