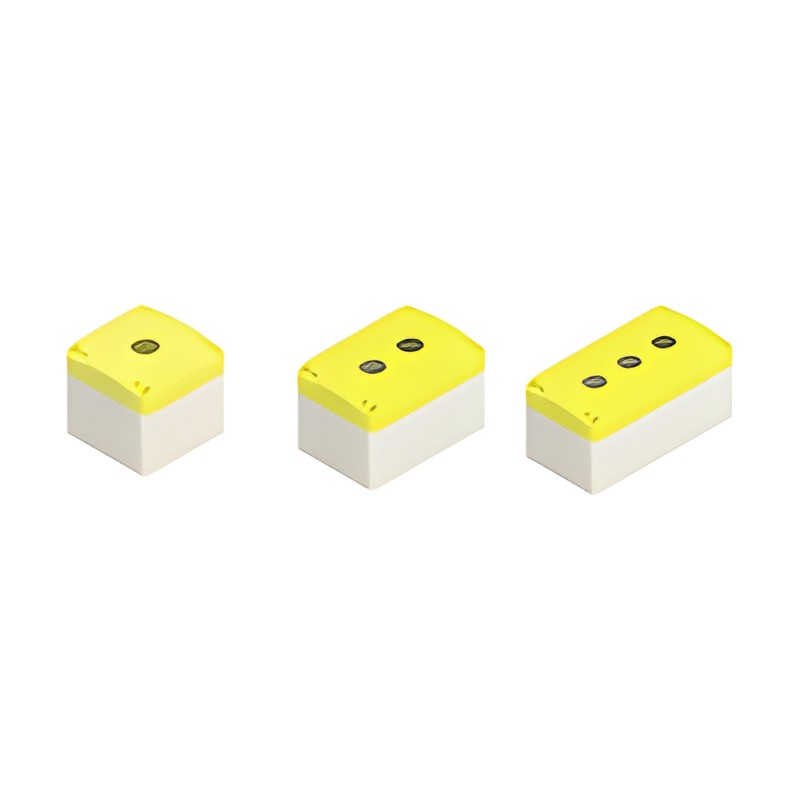

KOINO KCB-PL Series Plastic Control Boxes (75 mm Height)

KOINO KCB-PL Series Plastic Control Boxes (75 mm Height)

Waterproof plastic push button control boxes, 75 mm high, with 1 to 6 holes for 22, 25 or 30 mm operators.

Key features

  • Plastic construction: light and robust. 1 to 6 mounting holes
  • Two box heights available
  • ABS flame-retardant material (yellow/ivory)
  • IP66 waterproof

Specifications

Material Plastic (ABS, flame retardant)
Protection IP66
Height 75 mm
KOINO KCB-PL Series Plastic Control Boxes (75 mm Height) - reference 2
KCB-221PL Holes: 1 | Hole diameter: 22 mm | Size AxB: 86 x 71 mm
KCB-222PL Holes: 2 | Hole diameter: 22 mm | Size AxB: 126 x 111 mm
KCB-223PL Holes: 3 | Hole diameter: 22 mm | Size AxB: 166 x 151 mm
KCB-224PL Holes: 4 | Hole diameter: 22 mm | Size AxB: 206 x 191 mm
KCB-225PL Holes: 5 | Hole diameter: 22 mm | Size AxB: 246 x 230 mm
KCB-226PL Holes: 6 | Hole diameter: 22 mm | Size AxB: 286 x 270 mm
KCB-251PL Holes: 1 | Hole diameter: 25 mm | Size AxB: 86 x 71 mm
KCB-252PL Holes: 2 | Hole diameter: 25 mm | Size AxB: 126 x 111 mm
KCB-253PL Holes: 3 | Hole diameter: 25 mm | Size AxB: 166 x 151 mm
KCB-254PL Holes: 4 | Hole diameter: 25 mm | Size AxB: 206 x 191 mm
KCB-255PL Holes: 5 | Hole diameter: 25 mm | Size AxB: 246 x 230 mm
KCB-256PL Holes: 6 | Hole diameter: 25 mm | Size AxB: 286 x 270 mm
KCB-301PL Holes: 1 | Hole diameter: 30 mm | Size AxB: 86 x 71 mm
KCB-302PL Holes: 2 | Hole diameter: 30 mm | Size AxB: 126 x 111 mm
KCB-303PL Holes: 3 | Hole diameter: 30 mm | Size AxB: 166 x 151 mm
KCB-304PL Holes: 4 | Hole diameter: 30 mm | Size AxB: 206 x 191 mm
KCB-305PL Holes: 5 | Hole diameter: 30 mm | Size AxB: 246 x 230 mm
KCB-306PL Holes: 6 | Hole diameter: 30 mm | Size AxB: 286 x 270 mm
Control BoxesKOINO
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KCB-PL Series Plastic Control Boxes (75 mm Height)

Brand KOINO·Control Boxes

Available part numbers (18)

KCB-221PL, KCB-222PL, KCB-223PL, KCB-224PL, KCB-225PL, KCB-226PL, KCB-251PL, KCB-252PL, KCB-253PL, KCB-254PL + 8 more — see full table ↓
