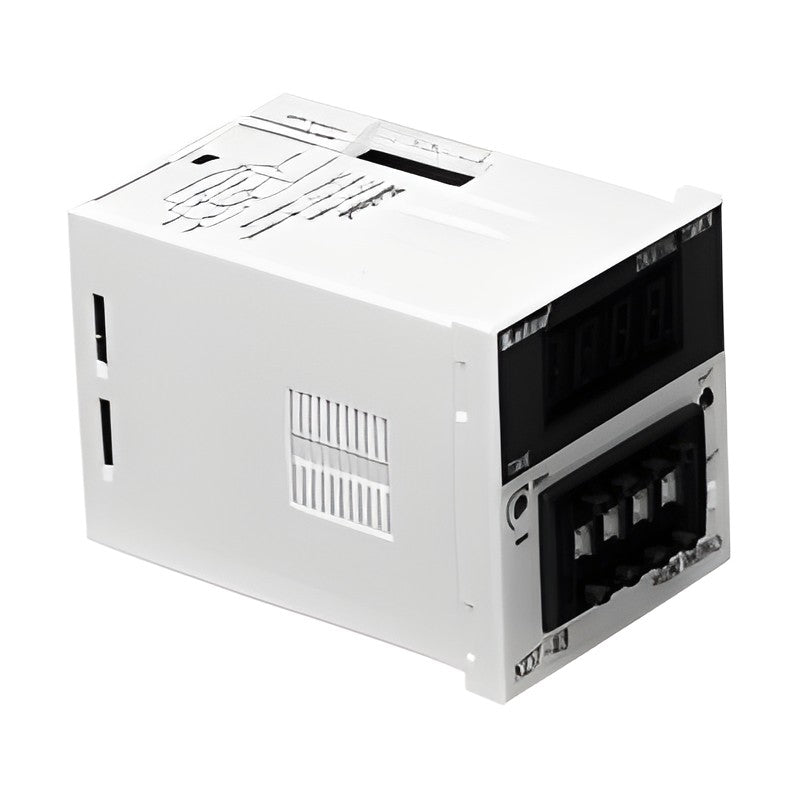

KOINO KDT-48 Digital Timer, 48x48 mm

48 x 48 mm DIN-size digital timer with red LED display, 16 output modes and 8 time ranges selected by internal switches.

Key features

Compact DIN 48 x 48 mm with LED display
Free supply voltage 90-240 VAC. 16 output operation modes selectable by internal slide switches. 8 time ranges selectable by internal slide switches

Specifications

Display	Red LED
Connection	8-pin socket (KH-KTS-8, KH-RS-R8, KH-MR-8)
Supply Voltage	90-240 VAC 50/60 Hz (12, 24 VDC made to order)
Power Consumption	Approx. 2.2 VA
Contact Capacity	250 VAC 2 A, 30 VDC 2 A resistive
Timing Accuracy	+/-0.01%
Protection	IP50 (indoor use)
Ambient Temperature	-10 to +55 C
Housing	PC (ivory)
Weight	Approx. 96 g

KDT-48

TimersKOINO

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KDT-48 Digital Timer, 48x48 mm

Brand KOINO·Timers

Available part numbers (1)

KDT-48

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
