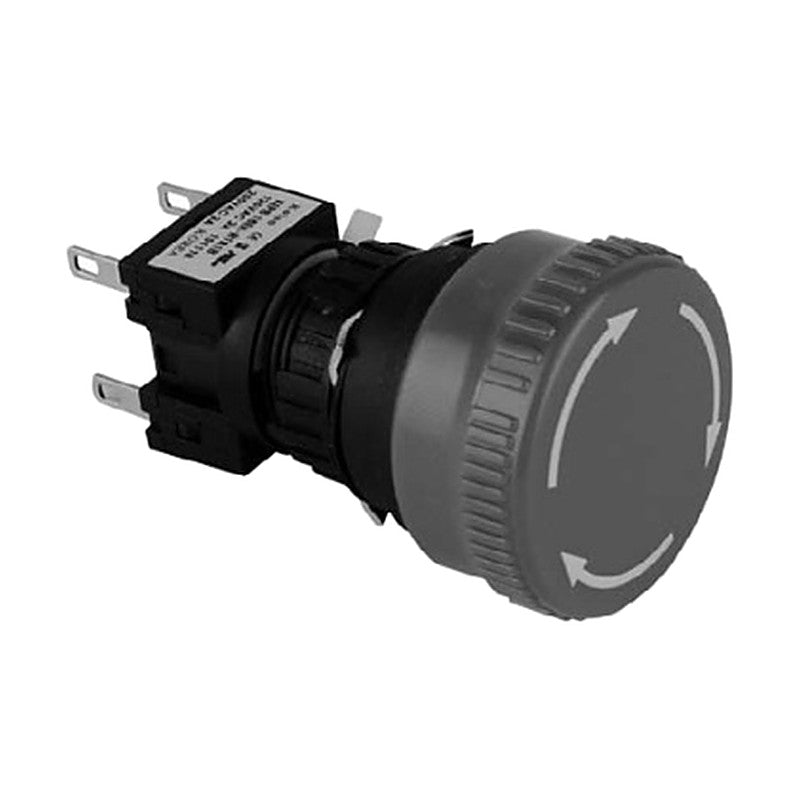

KOINO KEPB-16ER Ø16 Emergency Stop Push Button (Push-Lock, Turn-Release)

Ø16 mm non-illuminated emergency stop push button with push-lock, turn-release action and IP65 front protection.

Key features

KC, CE, UL/cUL and CCC certified
Silver-alloy contacts suitable from general machinery to low-current circuits
Tested to elevator safety standard KS C IEC 60947-5-1
Max. ambient temperature rating 50 °C

Specifications

Mounting Hole	Ø16 mm
Operation	Push-lock, turn-release
Button Colour	R: Red, G: Green, Y: Yellow
Contacts	1A, 2A, 1B, 2B or 1A1B (max. 2 contact blocks)
Contact Rating	250 VAC 3 A (resistive)
Operating Temperature	-15 to +55 °C (no icing)
Electrical Life	100,000 operations min.
Mechanical Life	100,000 operations min.
Protection	IP65
Material	Body: Nylon glass, Contact block: PBT, Ring: Nylon glass, Cap: PC

KEPB-16ER

Illumination: None

Emergency Stop SwitchesKOINO

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KEPB-16ER Ø16 Emergency Stop Push Button (Push-Lock, Turn-Release)

Brand KOINO·Emergency Stop Switches

Available part numbers (1)

KEPB-16ER

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
