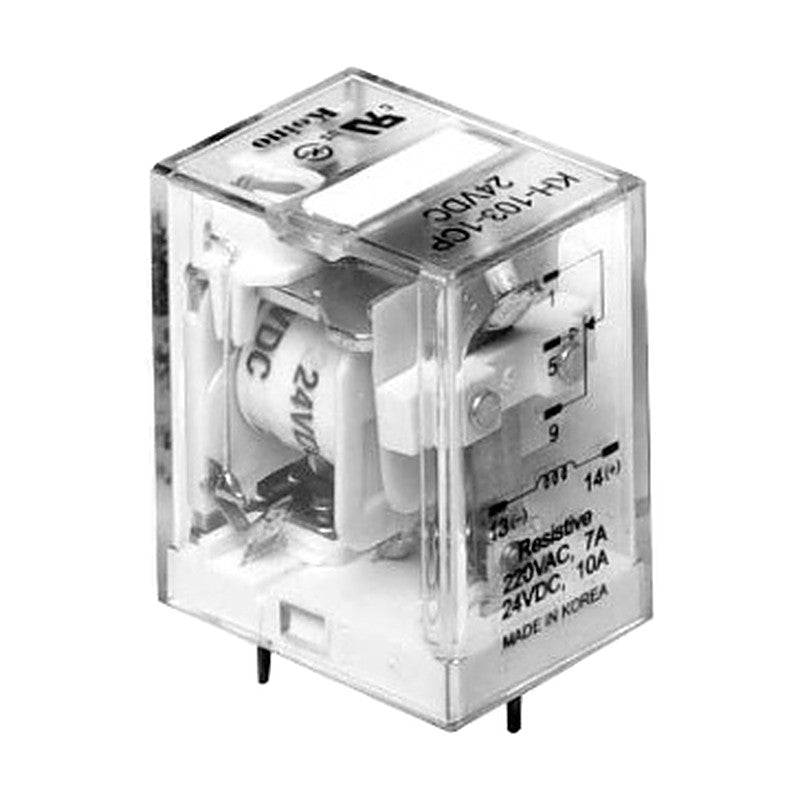

KOINO KH-103-1CP Miniature Power Relays, 1 Pole (PCB)

Single-pole miniature power relay with PCB terminals, UL/cUL recognized.

Key features

UL/cUL certified (UL508, E117960)
LED type available (KH-103-1CPL)

Specifications

Contact Resistance	50 mOhm max. (initial)
Operate/Release Time	20 ms max.
Power Consumption	AC approx. 1.4 VA (50 Hz), 1.2 VA (60 Hz); DC approx. 0.9 W
Ambient Temperature	-10 to +40 C
Material	Cover: PC, base: PBT glass
Coil Voltage	AC 6/12/24/50/110/120/220/230/240 V, DC 6/12/24/48/110 V
Contact Rating	220 VAC 7 A, 24 VDC 10 A resistive; 240 VAC 5 A general use
Weight	Approx. 32 g
Certification	UL/cUL, CE (EN 61810)

KH-103-1CP		Contact: 1c \| Terminal: PCB \| Status: Discontinued
KH-103-1CPL		Contact: 1c \| Terminal: PCB \| Indicator: LED \| Status: Discontinued

General Purpose RelaysKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-103-1CP Miniature Power Relays, 1 Pole (PCB)

Brand KOINO·General Purpose Relays

Available part numbers (2)

KH-103-1CP, KH-103-1CPL

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
