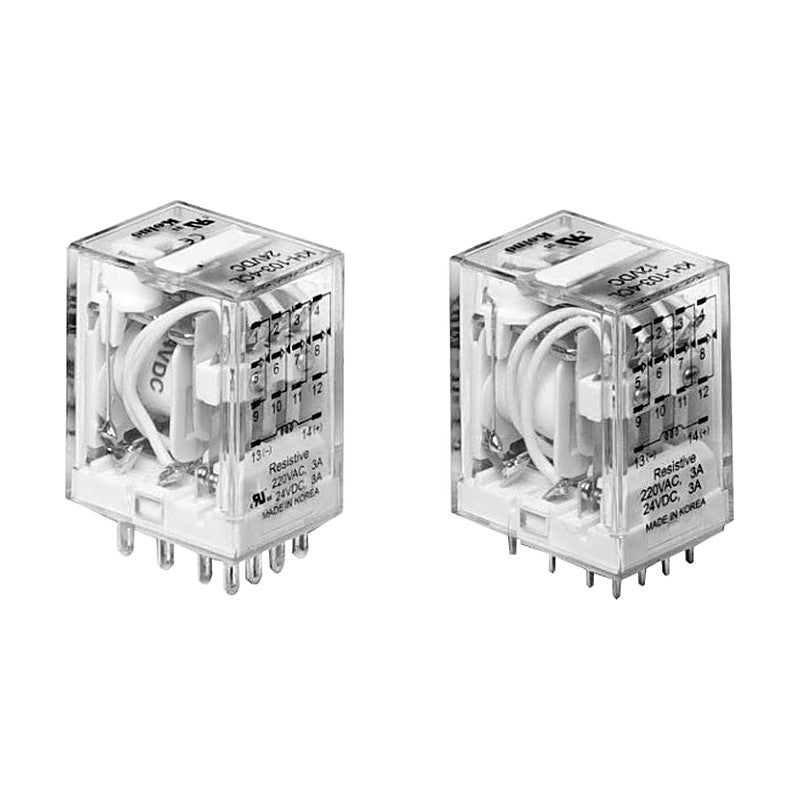

KOINO KH-103-4C Miniature Power Relays, 4 Pole

Four-pole high-sensitivity miniature plug-in power relay for socket or PCB mounting.

Key features

CE, UL/cUL and CCC certified
Low power consumption, high sensitivity
LED type available (KH-103-4CL)

Specifications

Contact Resistance	50 mOhm max. (initial)
Operate/Release Time	20 ms max.
Power Consumption	AC approx. 1.4 VA (50 Hz), 1.2 VA (60 Hz); DC approx. 0.9 W
Ambient Temperature	-10 to +40 C
Material	Cover: PC, base: PBT glass
Coil Voltage	AC 6/12/24/50/110/120/220/230/240 V, DC 6/12/24/48/110 V
Contact Rating	220 VAC 3 A, 24 VDC 3 A resistive
Weight	Approx. 35 g
Certification	UL/cUL, CE (EN 61810), CCC (GB/T 14048.5)

KH-103-4C		Contact: 4c \| Terminal: Socket
KH-103-4CL		Contact: 4c \| Terminal: Socket \| Indicator: LED
KH-103-4CP		Contact: 4c \| Terminal: PCB

General Purpose RelaysKOINO

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-103-4C Miniature Power Relays, 4 Pole

Brand KOINO·General Purpose Relays

Available part numbers (3)

KH-103-4C, KH-103-4CL, KH-103-4CP
