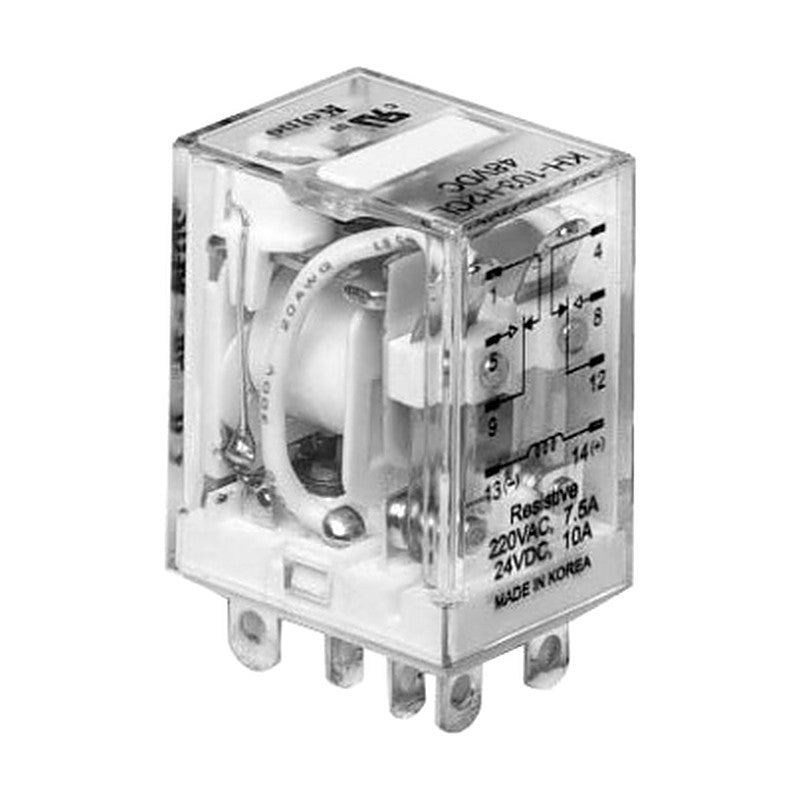

KOINO KH-103-H2C Miniature Power Relays, 2 Pole 10A

Two-pole higher-capacity miniature plug-in power relay rated up to 10 A, UL/cUL and CCC certified.

Key features

UL/cUL certified (UL508, E117960)
CCC certified
LED type available (KH-103-H2CL)

Specifications

Contact Resistance	50 mOhm max. (initial)
Operate/Release Time	20 ms max.
Power Consumption	AC approx. 1.4 VA (50 Hz), 1.2 VA (60 Hz); DC approx. 0.9 W
Ambient Temperature	-10 to +40 C
Material	Cover: PC, base: PBT glass
Coil Voltage	AC 6/12/24/50/110/120/220/230/240 V, DC 6/12/24/48/110 V
Contact Rating	220 VAC 7.5 A, 24 VDC 10 A resistive; 240 VAC 5 A general use
Weight	Approx. 32 g
Certification	UL/cUL, CCC (GB/T 14048.5)

KH-103-H2C		Contact: 2c \| Terminal: Socket
KH-103-H2CL		Contact: 2c \| Terminal: Socket \| Indicator: LED

General Purpose RelaysKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-103-H2C Miniature Power Relays, 2 Pole 10A

Brand KOINO·General Purpose Relays

Available part numbers (2)

KH-103-H2C, KH-103-H2CL

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
