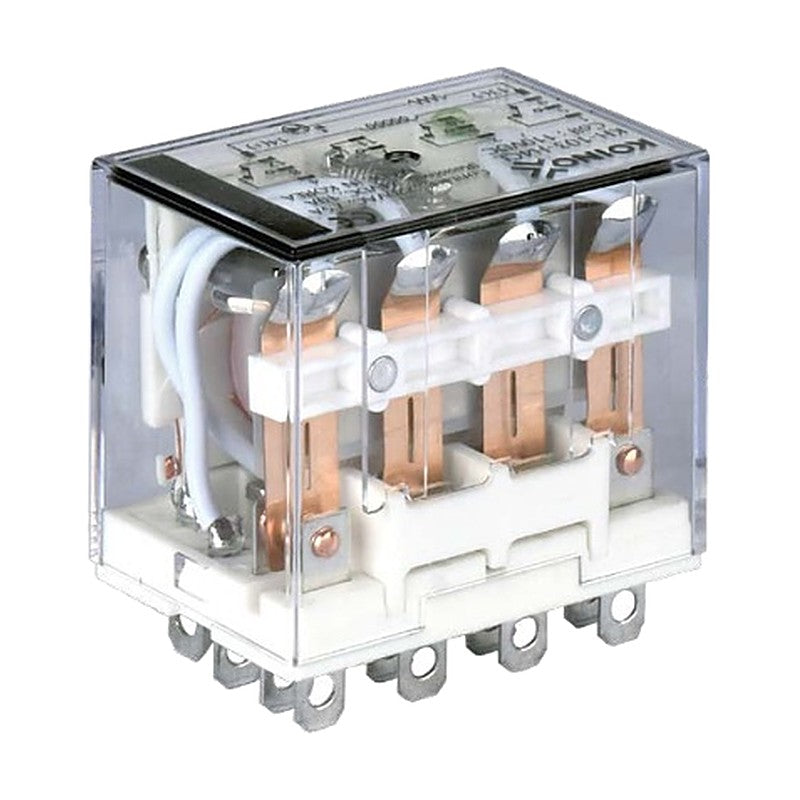

KOINO KH-103-H4C Miniature Power Relays, 4 Pole 10A

Four-pole power relay rated up to 10 A with CE and UL/cUL certification, for KH-RS-H4C sockets.

Key features

CE and UL/cUL certified
LED type available (KH-103-H4CL)
CE safety rating EN 61810

Specifications

Contact Rating	220 VAC 7.5 A, 24 VDC 10 A resistive
Coil Voltage	AC 110/220 V, DC 24/110/125 V
Contact Resistance	50 mOhm max. (initial)
Operate/Release Time	20 ms max.
Power Consumption	AC approx. 2.9 VA (50 Hz), 2.5 VA (60 Hz); DC approx. 1.5 W
Ambient Temperature	Standard -25 to +50 C, LED type -25 to +40 C
Material	Cover: PC, base: PBT glass
Applicable Socket	KH-RS-H4C, KH-RS-H4CS
Weight	Approx. 60 g
Certification	UL/cUL, CE (EN 61810)

KH-103-H4C		Contact: 4c
KH-103-H4CL		Contact: 4c \| Indicator: LED (AC red, DC green)

General Purpose RelaysKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-103-H4C Miniature Power Relays, 4 Pole 10A

Brand KOINO·General Purpose Relays

Available part numbers (2)

KH-103-H4C, KH-103-H4CL

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
