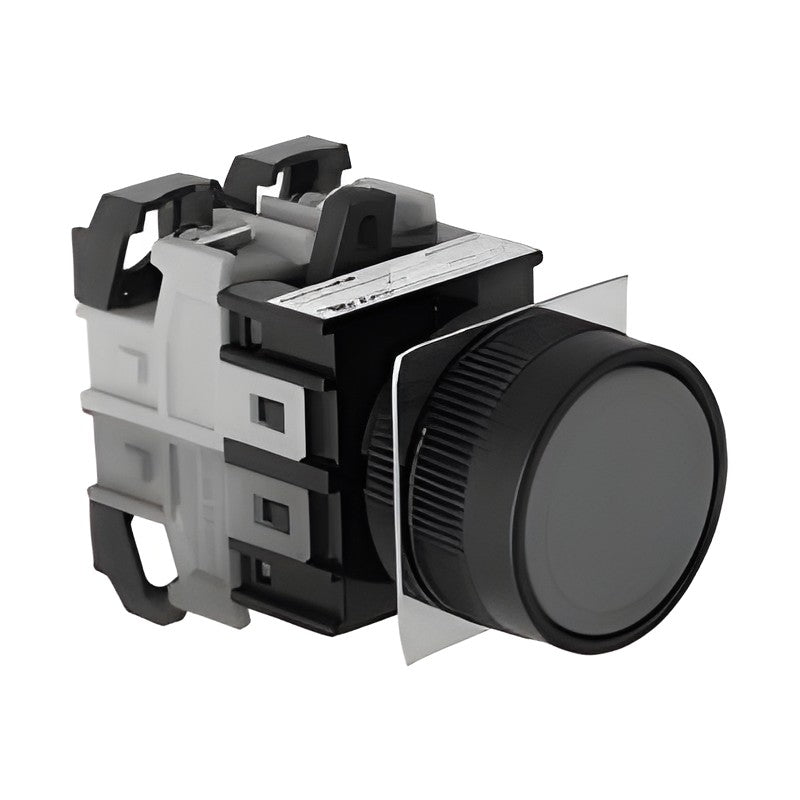

KOINO KH-2201 Ø22 Push Button Switches

KOINO KH-2201 Ø22 Push Button Switches

Ø22 mm push button switches with flat, mushroom and selective push heads in momentary, push-lock and turn-release versions.

Key features

  • KC, CE, UL/cUL and CCC certified
  • Easy maintenance and replacement; contact blocks can be added (up to 4)
  • Terminals fitted with protective cover; wiring from both directions
  • Housing resistant to heat, oil and mechanical stress
  • Panel thickness up to 5 mm
  • Tested to elevator safety standard KS C IEC 60947-5-1 (KH-2201ER)

Specifications

Mounting Hole Ø22 mm
Contact Rating 125 VAC 10 A, 250 VAC 6 A (resistive)
Insulation Resistance 100 MΩ min. (500 VDC)
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -15 to +50 °C (no icing)
Electrical Life 500,000 operations min.
Material Body: ABS, Contact block: Nylon, Ring: Nylon glass, Button: ABS, AS
Certification KC, UL/cUL (UL508), CE, CCC
KH-2201 Operation: Momentary push button | Protection: IP56 | Colours: R/G/Y/B/W/BK
KH-2201AT Operation: Push-lock, push-release | Protection: IP56 | Colours: R/G/Y/B/W/BK
KH-2201EB Operation: Mushroom momentary push button | Protection: IP56 | Colours: R/G/Y
KH-2201ER Operation: Mushroom push-lock, turn-release | Protection: IP50 | Colours: R/G/Y
KH-2201S Operation: Selective push button | Protection: IP50 | Colours: R/G/Y/B/BK
Push Button SwitchesKOINO
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-2201 Ø22 Push Button Switches

Brand KOINO·Push Button Switches

Available part numbers (5)

KH-2201, KH-2201AT, KH-2201EB, KH-2201ER, KH-2201S

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-2201Operation: Momentary push button | Protection: IP56 | Colours: R/G/Y/B/W/BK
KH-2201ATOperation: Push-lock, push-release | Protection: IP56 | Colours: R/G/Y/B/W/BK
KH-2201EBOperation: Mushroom momentary push button | Protection: IP56 | Colours: R/G/Y
KH-2201EROperation: Mushroom push-lock, turn-release | Protection: IP50 | Colours: R/G/Y
KH-2201SOperation: Selective push button | Protection: IP50 | Colours: R/G/Y/B/BK
