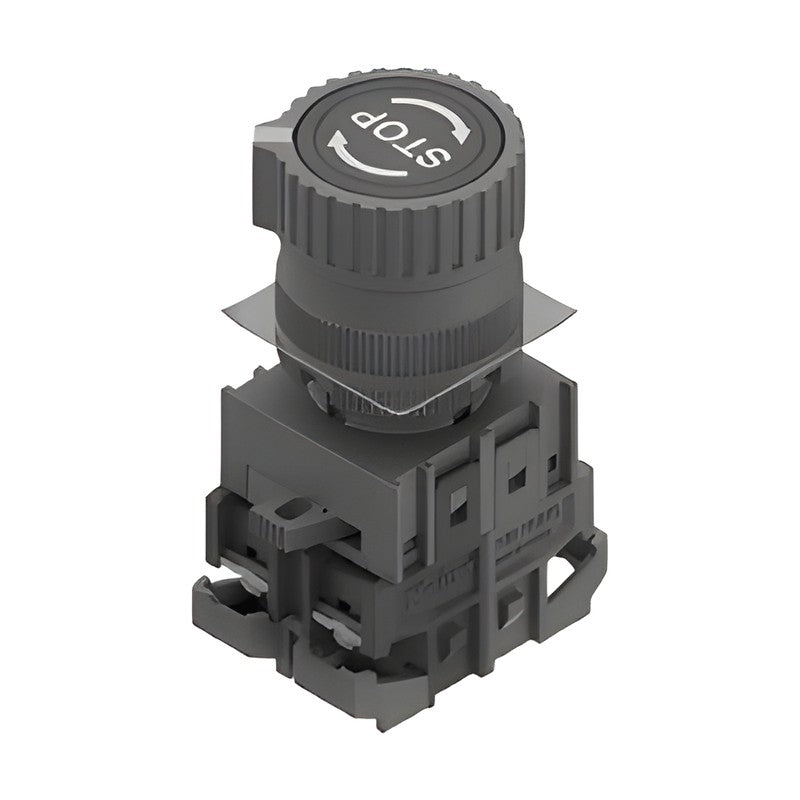

KOINO KH-2201SL / KH-2501SL Selective Push-Lock Switches

Ø22 mm and Ø25 mm push button switches whose knob can be turned 90° to lock the button down, combining momentary push and push-lock functions.

Key features

Button can be used as momentary push or turn-to-lock
Separable contact section, wiring from both directions, easy maintenance
Contact blocks can be added
Terminals with protective cover
IP65 front protection

Specifications

Rated Voltage/Current	Ue 125 VAC Ie 10 A / Ue 250 VAC Ie 6 A (resistive)
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	6 kV
Thermal Current (Ith)	10 A
Utilization Category	AC-15, DC-13
Dielectric Strength	2,000 VAC 50/60 Hz for 1 min
Operating Temperature	-25 to +55 °C (no icing)
Electrical Life	100,000 ops (6 A) / 300,000 ops (1 A)
Protection	IP65
Material	Body: Nylon glass, Contact block: Nylon, Button: ABS
Button Colours	R/G/Y/B/W/BK

KH-2201SL		Mounting Hole: Ø22 mm
KH-2501SL		Mounting Hole: Ø25 mm

Push Button SwitchesKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-2201SL / KH-2501SL Selective Push-Lock Switches

Brand KOINO·Push Button Switches

Available part numbers (2)

KH-2201SL, KH-2501SL
