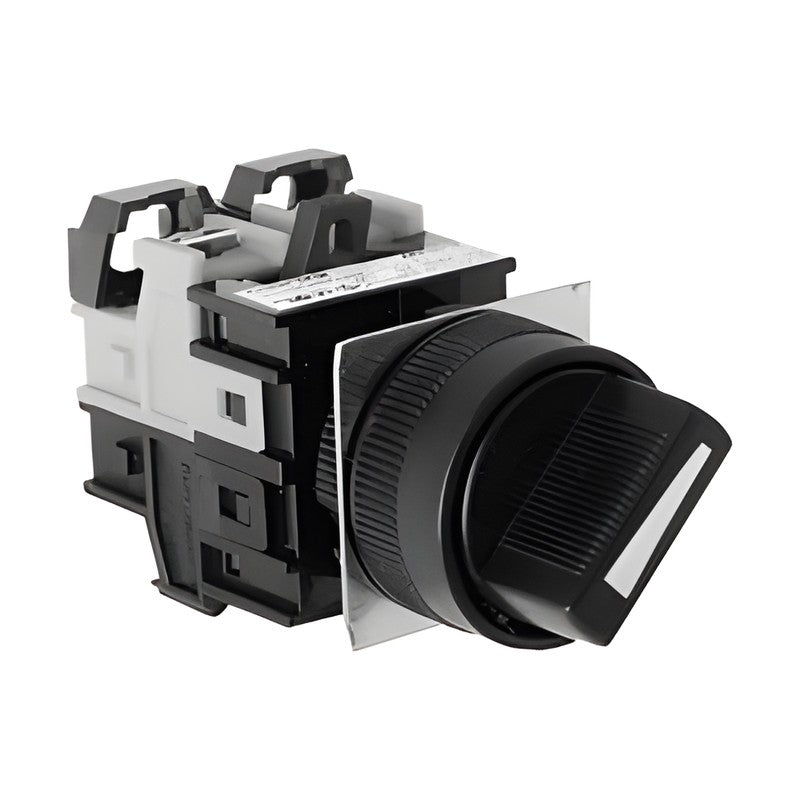

KOINO KH-2202 Ø22 Selector Switches

KOINO KH-2202 Ø22 Selector Switches

Ø22 mm selector switches with short lever, long lever or key operation in 2- and 3-position maintained or spring-return versions.

Key features

  • KC, CE, UL/cUL and CCC certified
  • Panel thickness up to 5 mm
  • Easy maintenance; contact blocks can be added (up to 4)
  • Wiring from both directions; terminals with protective cover
  • Key switch maintained types: key removal position specified on order

Specifications

Mounting Hole Ø22 mm
Contact Rating 125 VAC 10 A, 250 VAC 6 A (resistive)
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -15 to +50 °C (no icing)
Electrical Life 100,000 operations min.
Mechanical Life 500,000 operations min.
Protection IP50
Material Body: ABS, Contact block: Nylon, Ring: Nylon glass, Knob: Acetal
KH-2202-2S Actuator: Short lever | Operation: 2-position maintained
KH-2202-3S Actuator: Short lever | Operation: 3-position maintained
KH-2202-2AS Actuator: Short lever | Operation: 2-position spring return
KH-2202-3AS Actuator: Short lever | Operation: 3-position spring return
KH-2202-3RS Actuator: Short lever | Operation: 3-position left maintained, right spring return
KH-2202-2L Actuator: Long lever | Operation: 2-position maintained
KH-2202-3L Actuator: Long lever | Operation: 3-position maintained
KH-2202-2AL Actuator: Long lever | Operation: 2-position spring return
KH-2202-3AL Actuator: Long lever | Operation: 3-position spring return
KH-2202-3RL Actuator: Long lever | Operation: 3-position left maintained, right spring return
KH-2202-2K Actuator: Key | Operation: 2-position maintained
KH-2202-3K Actuator: Key | Operation: 3-position maintained
KH-2202-2AK Actuator: Key | Operation: 2-position spring return
KH-2202-3AK Actuator: Key | Operation: 3-position spring return
KH-2202-3RK Actuator: Key | Operation: 3-position left maintained, right spring return
Selector SwitchesKOINO
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-2202 Ø22 Selector Switches

Brand KOINO·Selector Switches

Available part numbers (15)

KH-2202-2S, KH-2202-3S, KH-2202-2AS, KH-2202-3AS, KH-2202-3RS, KH-2202-2L, KH-2202-3L, KH-2202-2AL, KH-2202-3AL, KH-2202-3RL + 5 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-2202-2SActuator: Short lever | Operation: 2-position maintained
KH-2202-3SActuator: Short lever | Operation: 3-position maintained
KH-2202-2ASActuator: Short lever | Operation: 2-position spring return
KH-2202-3ASActuator: Short lever | Operation: 3-position spring return
KH-2202-3RSActuator: Short lever | Operation: 3-position left maintained, right spring return
KH-2202-2LActuator: Long lever | Operation: 2-position maintained
KH-2202-3LActuator: Long lever | Operation: 3-position maintained
KH-2202-2ALActuator: Long lever | Operation: 2-position spring return
KH-2202-3ALActuator: Long lever | Operation: 3-position spring return
KH-2202-3RLActuator: Long lever | Operation: 3-position left maintained, right spring return
KH-2202-2KActuator: Key | Operation: 2-position maintained
KH-2202-3KActuator: Key | Operation: 3-position maintained
KH-2202-2AKActuator: Key | Operation: 2-position spring return
KH-2202-3AKActuator: Key | Operation: 3-position spring return
KH-2202-3RKActuator: Key | Operation: 3-position left maintained, right spring return
