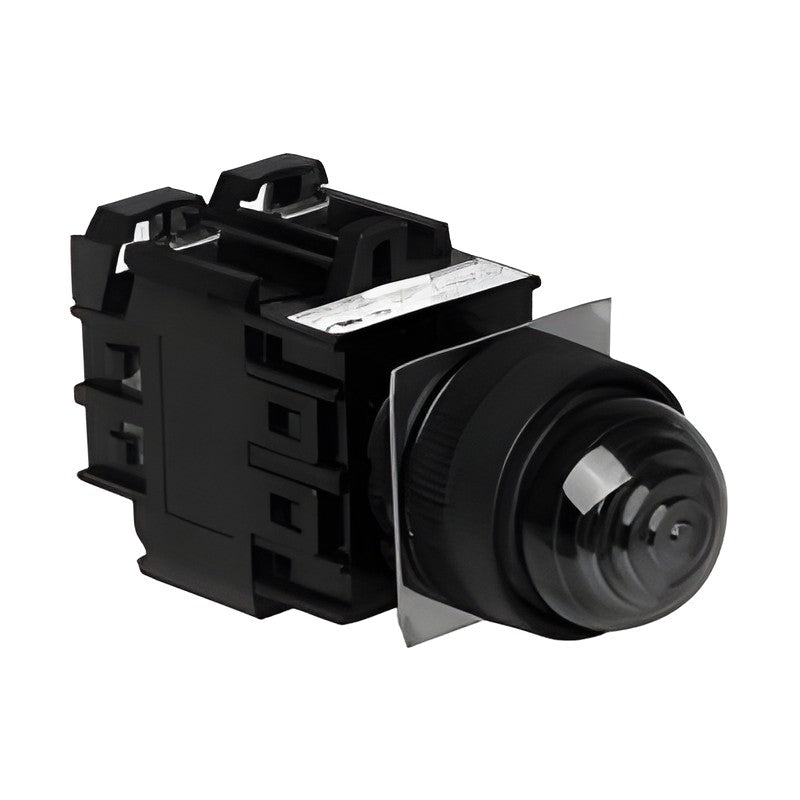

KOINO KH-2203 Ø22 Pilot Lamps

KOINO KH-2203 Ø22 Pilot Lamps

Ø22 mm pilot lamps with round or flat cap, filament or LED light source, transformer or full-voltage type.

Key features

  • CE, UL/cUL and CCC certified
  • Easy maintenance and replacement
  • Wiring from both directions; terminals with protective cover
  • Panel thickness up to 5 mm
  • F (flat) type cap made to order

Specifications

Mounting Hole Ø22 mm
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -15 to +50 °C (no icing)
Protection IP56
Transformer Secondary 6 V
Lens Colours R/G/Y/B/O/W/M (milky white)/C (clear)
Material Body: ABS, Ring: Nylon glass, Cap: AS
KH-2203-1 Light Source: Filament lamp | Type: Transformer | Voltage: 110 VAC
KH-2203-2 Light Source: Filament lamp | Type: Transformer | Voltage: 220 VAC
KH-2203-3 Light Source: Filament lamp | Type: Transformer | Voltage: 230 VAC
KH-2203L-1 Light Source: LED | Type: Transformer | Voltage: 110 VAC
KH-2203L-2 Light Source: LED | Type: Transformer | Voltage: 220 VAC
KH-2203L-3 Light Source: LED | Type: Transformer | Voltage: 230 VAC
KH-2203-TL Light Source: Filament lamp | Type: Full voltage | Voltage: 6.3/12/24 V
KH-2203L-TL Light Source: LED | Type: Full voltage | Voltage: 6/12/24 V
Pilot LightsKOINO
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-2203 Ø22 Pilot Lamps

Brand KOINO·Pilot Lights

Available part numbers (8)

KH-2203-1, KH-2203-2, KH-2203-3, KH-2203L-1, KH-2203L-2, KH-2203L-3, KH-2203-TL, KH-2203L-TL

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-2203-1Light Source: Filament lamp | Type: Transformer | Voltage: 110 VAC
KH-2203-2Light Source: Filament lamp | Type: Transformer | Voltage: 220 VAC
KH-2203-3Light Source: Filament lamp | Type: Transformer | Voltage: 230 VAC
KH-2203L-1Light Source: LED | Type: Transformer | Voltage: 110 VAC
KH-2203L-2Light Source: LED | Type: Transformer | Voltage: 220 VAC
KH-2203L-3Light Source: LED | Type: Transformer | Voltage: 230 VAC
KH-2203-TLLight Source: Filament lamp | Type: Full voltage | Voltage: 6.3/12/24 V
KH-2203L-TLLight Source: LED | Type: Full voltage | Voltage: 6/12/24 V
