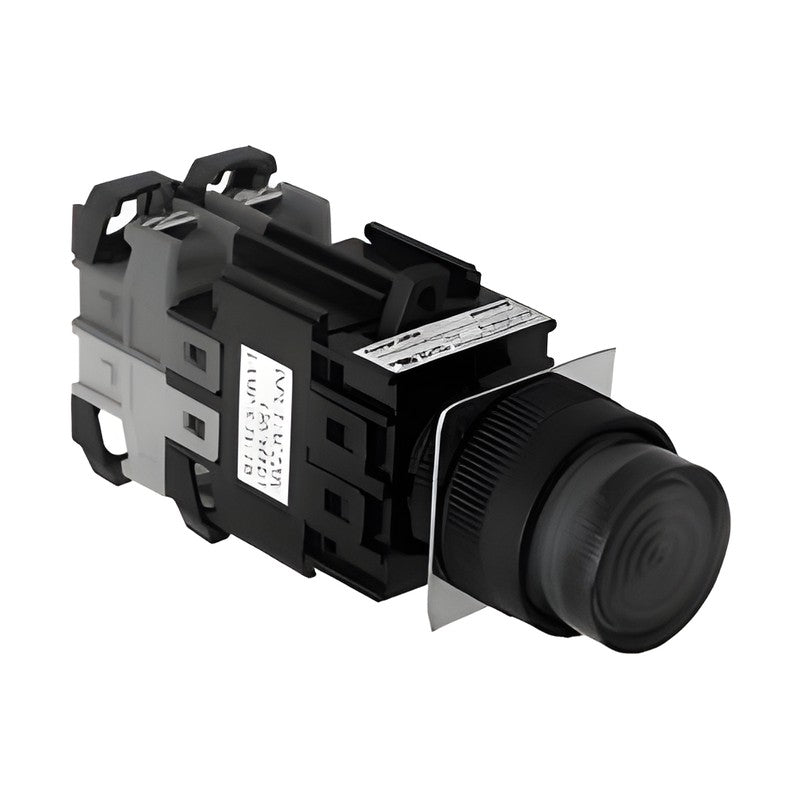

KOINO KH-2204 Ø22 Illuminated Push Button Switches

KOINO KH-2204 Ø22 Illuminated Push Button Switches

Ø22 mm illuminated push button switches with filament or LED lamp, standard or guarded button, momentary or push-lock action, transformer or full-voltage type.

Key features

  • KC, CE, UL/cUL and CCC certified
  • Easy maintenance; contact blocks can be added
  • Wiring from both directions; terminals with protective cover
  • Panel thickness up to 5 mm

Specifications

Mounting Hole Ø22 mm
Contact Rating 125 VAC 10 A, 250 VAC 6 A (resistive)
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -15 to +50 °C (no icing)
Electrical Life 100,000 operations min.
Mechanical Life 1,000,000 operations
Protection IP56
Transformer Secondary 6 V
Button Colours R/G/Y/B/O/W
KH-2204-1 Operation: momentary | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204AT-1 Operation: push-lock, push-release | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204-2 Operation: momentary | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204AT-2 Operation: push-lock, push-release | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204-TL Operation: momentary | Light Source: Filament lamp | Voltage: Full voltage
KH-2204AT-TL Operation: push-lock, push-release | Light Source: Filament lamp | Voltage: Full voltage
KH-2204L-1 Operation: momentary | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204LAT-1 Operation: push-lock, push-release | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204L-2 Operation: momentary | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204LAT-2 Operation: push-lock, push-release | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204L-TL Operation: momentary | Light Source: LED | Voltage: Full voltage
KH-2204LAT-TL Operation: push-lock, push-release | Light Source: LED | Voltage: Full voltage
KH-2204P-1 Operation: Guarded momentary | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204AP-1 Operation: Guarded push-lock, push-release | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204P-2 Operation: Guarded momentary | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204AP-2 Operation: Guarded push-lock, push-release | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204P-TL Operation: Guarded momentary | Light Source: Filament lamp | Voltage: Full voltage
KH-2204AP-TL Operation: Guarded push-lock, push-release | Light Source: Filament lamp | Voltage: Full voltage
KH-2204LP-1 Operation: Guarded momentary | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204LAP-1 Operation: Guarded push-lock, push-release | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204LP-2 Operation: Guarded momentary | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204LAP-2 Operation: Guarded push-lock, push-release | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204LP-TL Operation: Guarded momentary | Light Source: LED | Voltage: Full voltage
KH-2204LAP-TL Operation: Guarded push-lock, push-release | Light Source: LED | Voltage: Full voltage
Push Button SwitchesKOINO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-2204 Ø22 Illuminated Push Button Switches

Brand KOINO·Push Button Switches

Available part numbers (24)

KH-2204-1, KH-2204AT-1, KH-2204-2, KH-2204AT-2, KH-2204-TL, KH-2204AT-TL, KH-2204L-1, KH-2204LAT-1, KH-2204L-2, KH-2204LAT-2 + 14 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-2204-1Operation: momentary | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204AT-1Operation: push-lock, push-release | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204-2Operation: momentary | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204AT-2Operation: push-lock, push-release | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204-TLOperation: momentary | Light Source: Filament lamp | Voltage: Full voltage
KH-2204AT-TLOperation: push-lock, push-release | Light Source: Filament lamp | Voltage: Full voltage
KH-2204L-1Operation: momentary | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204LAT-1Operation: push-lock, push-release | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204L-2Operation: momentary | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204LAT-2Operation: push-lock, push-release | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204L-TLOperation: momentary | Light Source: LED | Voltage: Full voltage
KH-2204LAT-TLOperation: push-lock, push-release | Light Source: LED | Voltage: Full voltage
KH-2204P-1Operation: Guarded momentary | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204AP-1Operation: Guarded push-lock, push-release | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KH-2204P-2Operation: Guarded momentary | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204AP-2Operation: Guarded push-lock, push-release | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KH-2204P-TLOperation: Guarded momentary | Light Source: Filament lamp | Voltage: Full voltage
KH-2204AP-TLOperation: Guarded push-lock, push-release | Light Source: Filament lamp | Voltage: Full voltage
KH-2204LP-1Operation: Guarded momentary | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204LAP-1Operation: Guarded push-lock, push-release | Light Source: LED | Voltage: 110 VAC (transformer)
KH-2204LP-2Operation: Guarded momentary | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204LAP-2Operation: Guarded push-lock, push-release | Light Source: LED | Voltage: 220 VAC (transformer)
KH-2204LP-TLOperation: Guarded momentary | Light Source: LED | Voltage: Full voltage
KH-2204LAP-TLOperation: Guarded push-lock, push-release | Light Source: LED | Voltage: Full voltage
