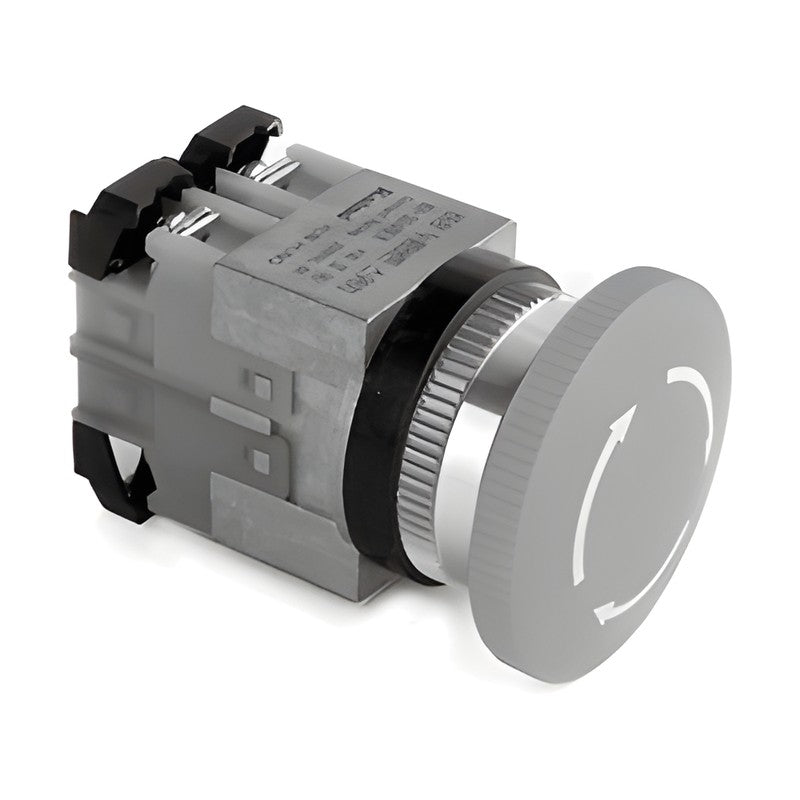

KOINO KH-3046ER Ø30 Push-Lock Turn-Release Push Button Switch

Ø30 mm push button switch with zinc die-cast housing that locks when pressed and releases when turned clockwise.

Key features

KC and CCC certified
Zinc alloy die-cast housing
Locks when pressed, resets when turned clockwise

Specifications

Insulation Resistance	100 MΩ min. (500 VDC)
Rated Insulation Voltage	600 V AC or DC
Contact Resistance	30 mΩ max. (initial)
Dielectric Strength	1,500 VAC 50/60 Hz for 1 min
Operating Temperature	-25 to +50 °C (no icing)
Humidity	45-85% RH
Protection	IP40
Contact	1a+1b
Mounting Hole	Ø30 mm
Contact Rating	250 VAC 6 A (resistive)
Thermal Current	10 A max.
Mechanical Life	250,000 operations (1,800 ops/h)

KH-3046ER

Operation: Push-lock, turn-release

Push Button SwitchesKOINO

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-3046ER Ø30 Push-Lock Turn-Release Push Button Switch

Brand KOINO·Push Button Switches

Available part numbers (1)

KH-3046ER

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
