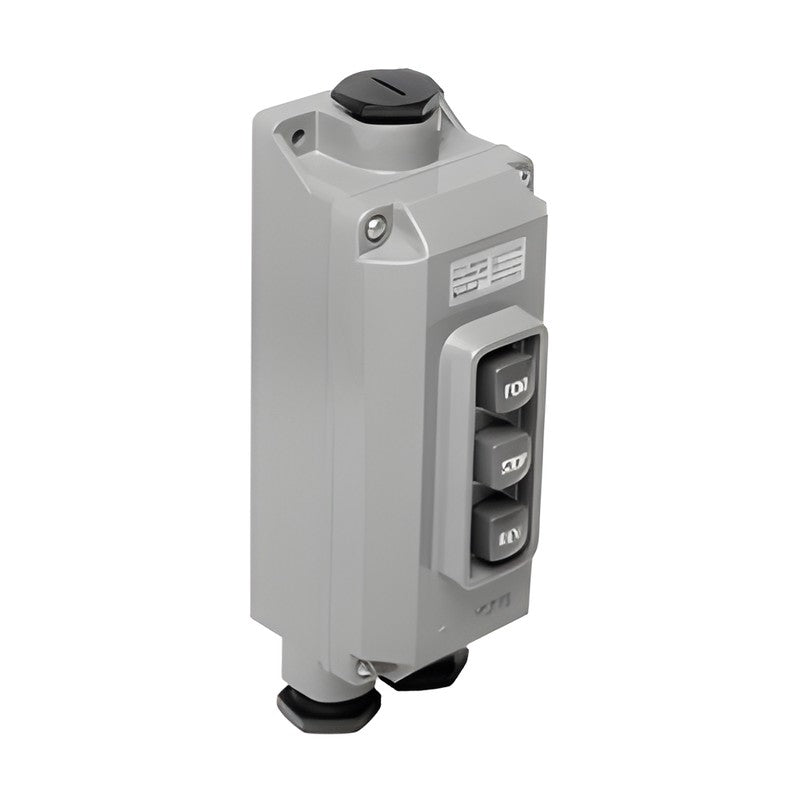

KOINO KH-3063 Waterproof Push Button Reversing Switch, 30A

Surface-mount waterproof FOR/STOP/REV push button switch for forward/reverse operation of motors.

Key features

KC electrical safety certified
Waterproof rubber packing between case and cover and on the button operator
Cable entries: 1 on top, 2 on bottom, sealed with cable rubbers
Load can be operated forward and reverse
Protection: IP65

Specifications

Certification	KC (KC 61058-1)
Mounting	Surface mount
Poles	3P
Contact rating (resistive)	250VAC 30A, 380VAC 20A
Protection	IP65
Material	ABS case, phenol buttons
Weight	Approx. 711 g
Terminal screw	M5 x 10
Buttons	FOR / STOP / REV

KH-3063

Application: Motor starting (forward/reverse)
