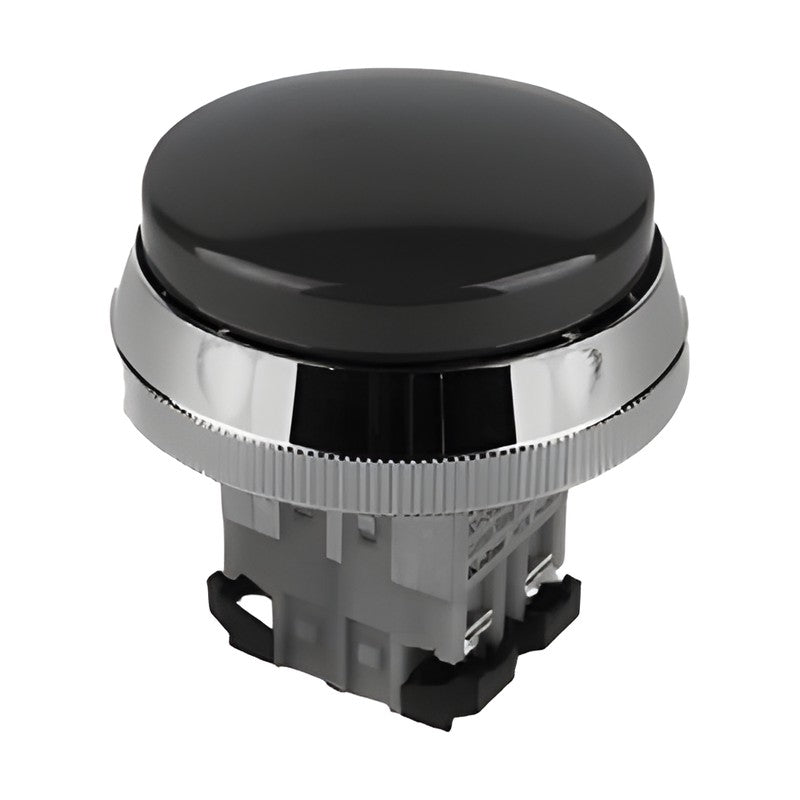

KOINO KH-3065EB Ø30 Mushroom Push Button Switch

Ø30 mm mushroom-head momentary push button switch with chrome-plated zinc die-cast ring.

Key features

KC and CCC certified
Rubber cap for rain and dust protection sold separately
Contact arrangements of 2a+2b or more made to order

Specifications

Insulation Resistance	100 MΩ min. (500 VDC)
Rated Insulation Voltage	600 V AC or DC
Contact Resistance	30 mΩ max. (initial)
Dielectric Strength	1,500 VAC 50/60 Hz for 1 min
Operating Temperature	-25 to +50 °C (no icing)
Humidity	45-85% RH
Protection	IP40
Contact	1a+1b
Mounting Hole	Ø30 mm
Contact Rating	250 VAC 6 A (resistive)
Thermal Current	10 A max.
Mechanical Life	250,000 operations (1,800 ops/h)

KH-3065EB

Operation: Mushroom momentary
