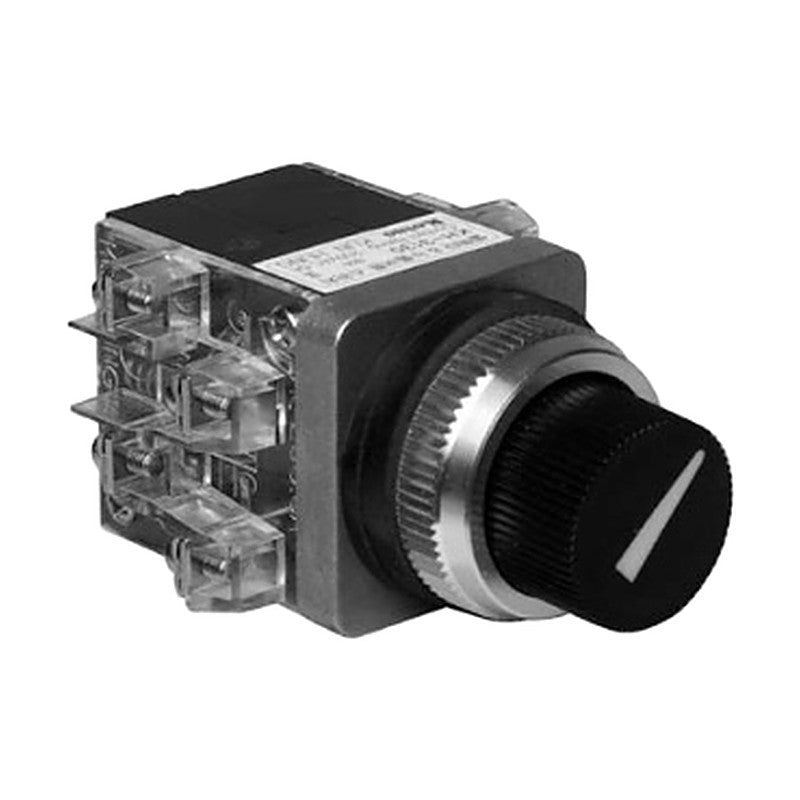

KOINO KH-3130 Ø30 Selector Push Button Switch

Ø30 mm combined selector and push button switch: the button is turned left or right and then pressed to close the NO contact on that side.

Key features

KC certified
Selector and push button functions combined in one switch, saving panel space in central control and machine tool panels
Version with NO and NC contacts OFF in the selected state made to order

Specifications

Insulation Resistance	100 MΩ min. (500 VDC)
Rated Insulation Voltage	600 V AC or DC
Contact Resistance	30 mΩ max. (initial)
Dielectric Strength	1,500 VAC 50/60 Hz for 1 min
Operating Temperature	-25 to +50 °C (no icing)
Humidity	45-85% RH
Protection	IP40
Contact	Left: 1a+1b, Right: 1a+1b
Mounting Hole	Ø30 mm
Contact Rating	250 VAC 6 A (resistive)
Thermal Current	6 A max.
Mechanical Life	250,000 operations (1,800 ops/h)

KH-3130

Operation: Select left/right and push

Selector SwitchesKOINO

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-3130 Ø30 Selector Push Button Switch

Brand KOINO·Selector Switches

Available part numbers (1)

KH-3130

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
