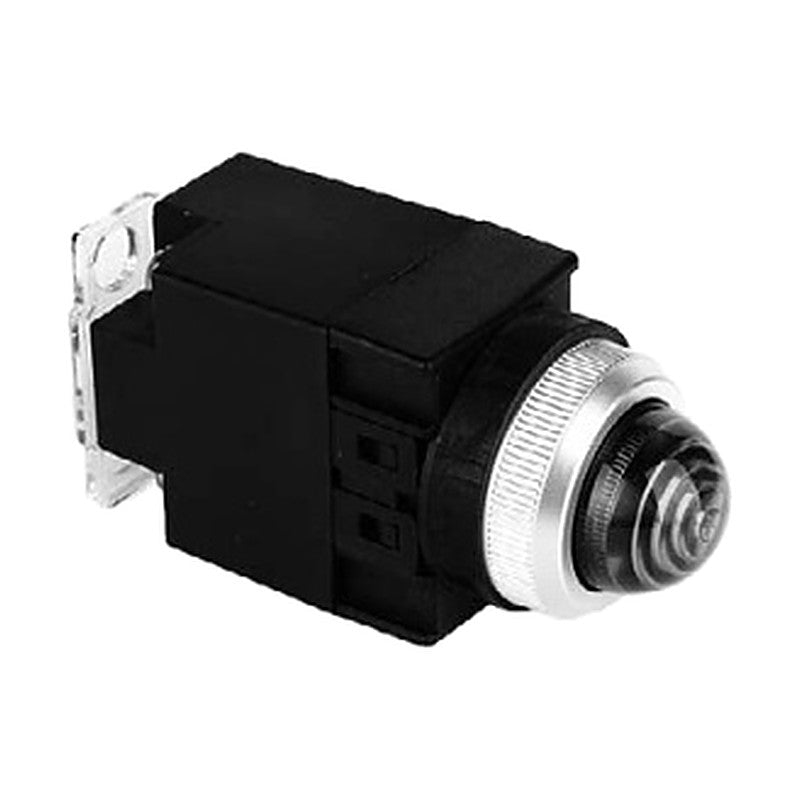

KOINO KH-501 to KH-506 Series Ø25 and Ø30 Pilot Lamps

Ø25 mm and Ø30 mm pilot lamps with round lens, filament or LED lamp, for supply voltages from 6 VDC to 440 VAC.

Key features

E10/14 lamps (BA9s for TL and DL types)
Transformer, full-voltage (TL) and DC (DL) versions
Wide supply voltage range up to 440 VAC
Use with ventilation when installed in a sealed enclosure

Specifications

Lens Shape	Round
Dielectric Strength	1,500 VAC 50/60 Hz for 1 min
Operating Temperature	-25 to +50 °C (no icing)
Protection	IP50
Lamp Life	Filament 1,000 h, LED 20,000 h min.
Weight	Approx. 105 g (KH-501 to 506), approx. 41 g (TL types)
Material	Housing: Nylon glass, Lamp cap: AS, Ring: ABS (colour coated)
Lens Colours	Red, Green, Yellow, White, Blue, Orange, Clear, Milky white

KOINO KH-501 to KH-506 Series Ø25 and Ø30 Pilot Lamps - reference 2

KH-501		Size: Ø25 mm \| Supply: 110 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-501L		Size: Ø25 mm \| Supply: 110/120 VAC \| Lamp: LED 6 V 40 mA
KH-501TL		Size: Ø25 mm \| Supply: Full voltage 6.3/12/24 V \| Lamp: Filament 1.0 W
KH-501DL		Size: Ø25 mm \| Supply: 6-220 VDC \| Lamp: LED
KH-502		Size: Ø25 mm \| Supply: 220 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-502L		Size: Ø25 mm \| Supply: 220 VAC \| Lamp: LED 6 V 40 mA
KH-503		Size: Ø30 mm \| Supply: 110 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-503L		Size: Ø30 mm \| Supply: 110 VAC \| Lamp: LED 6 V 40 mA
KH-503TL		Size: Ø30 mm \| Supply: Full voltage 6.3/12/24 V \| Lamp: Filament 1.0 W
KH-503DL		Size: Ø30 mm \| Supply: 6-220 VDC \| Lamp: LED
KH-504		Size: Ø30 mm \| Supply: 220 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-504L		Size: Ø30 mm \| Supply: 220 VAC \| Lamp: LED 6 V 40 mA
KH-505		Size: Ø30 mm \| Supply: 380 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-505L		Size: Ø30 mm \| Supply: 380 VAC \| Lamp: LED 6 V 40 mA
KH-505-25		Size: Ø25 mm \| Supply: 380 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-505L-25		Size: Ø25 mm \| Supply: 380 VAC \| Lamp: LED 6 V 40 mA
KH-506		Size: Ø30 mm \| Supply: 440 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-506L		Size: Ø30 mm \| Supply: 440 VAC \| Lamp: LED 6 V 40 mA
KH-506-25		Size: Ø25 mm \| Supply: 440 VAC \| Lamp: Filament 6.3 V 1.0 W
KH-506L-25		Size: Ø25 mm \| Supply: 440 VAC \| Lamp: LED 6 V 40 mA

Pilot LightsKOINO

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-501 to KH-506 Series Ø25 and Ø30 Pilot Lamps

Brand KOINO·Pilot Lights

Available part numbers (20)

KH-501, KH-501L, KH-501TL, KH-501DL, KH-502, KH-502L, KH-503, KH-503L, KH-503TL, KH-503DL + 10 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
