KOINO KH-5020L / KH-5030L / KH-5040L LED Square Annunciator Lights

KOINO KH-5020L / KH-5030L / KH-5040L LED Square Annunciator Lights

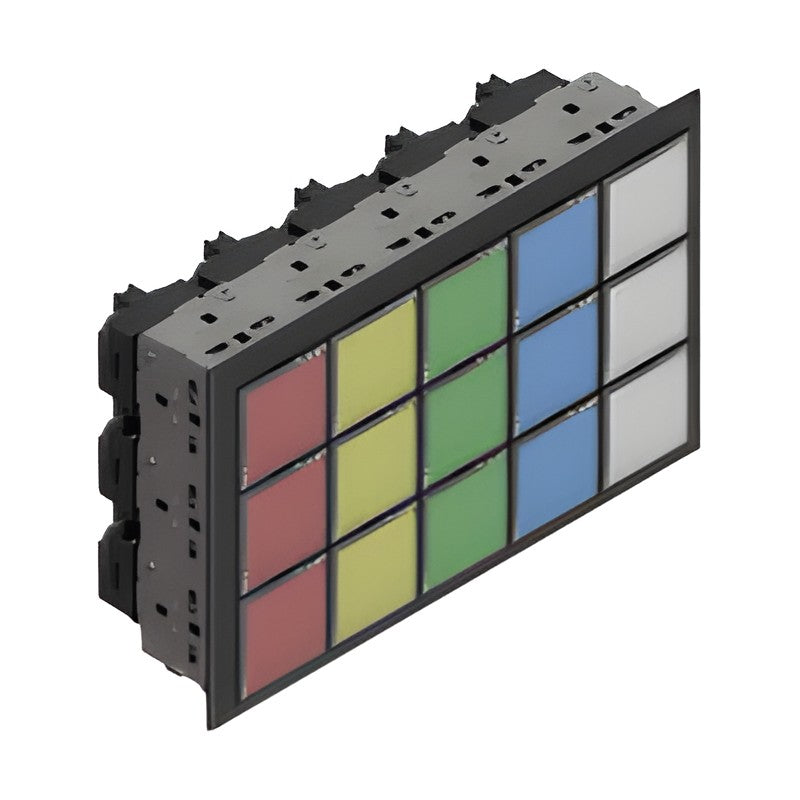

Modular LED square indicator light units (20x20, 30x30 or 30x40 mm) that can be grouped side by side into annunciator panels.

Key features

  • LED light source, 20 mA max. per unit
  • Colors: red, green, yellow, orange, blue, white
  • Check-input versions to confirm lamp lighting from the front (DC types)
  • Up to 13 x 13 (KH-5020L) or 20 x 20 (KH-5030L/5040L) units in one group
  • Nameplate and color plate inserts
  • CE and UL certified

Specifications

Light Source LED
Current Consumption 20 mA max.
Rated Voltage 12 VDC, 24 VDC (converter types 110 VDC, 110 VAC, 220 VAC)
Insulation Resistance 100 MOhm min. (500 VDC)
Ambient Temperature -25 to +55 C
Material Housing: ABS, color plate: acrylic, reflector: acrylic
Terminal KH-5020L: M2.5 screw; KH-5030L/5040L: M3.5 screw
Certification CE (EN 60947-5-1), UL 60947-5-1
KH-5020L-12 LED Unit Size: 20 x 20 mm | Input: 12 VDC
KH-5020L-24 LED Unit Size: 20 x 20 mm | Input: 24 VDC
KH-5030L-12 LED Unit Size: 30 x 30 mm | Input: 12 VDC
KH-5030L-24 LED Unit Size: 30 x 30 mm | Input: 24 VDC
KH-5040L-12 LED Unit Size: 30 x 40 mm | Input: 12 VDC
KH-5040L-24 LED Unit Size: 30 x 40 mm | Input: 24 VDC
KH-5030L-12PCK LED Unit Size: 30 x 30 mm | Input: 12 VDC with positive check input
KH-5030L-24PCK LED Unit Size: 30 x 30 mm | Input: 24 VDC with positive check input
KH-5040L-12PCK LED Unit Size: 30 x 40 mm | Input: 12 VDC with positive check input
KH-5040L-24PCK LED Unit Size: 30 x 40 mm | Input: 24 VDC with positive check input
KH-5030L-12NCK LED Unit Size: 30 x 30 mm | Input: 12 VDC with negative check input
KH-5030L-24NCK LED Unit Size: 30 x 30 mm | Input: 24 VDC with negative check input
KH-5040L-12NCK LED Unit Size: 30 x 40 mm | Input: 12 VDC with negative check input
KH-5040L-24NCK LED Unit Size: 30 x 40 mm | Input: 24 VDC with negative check input
KH-5030L-DC110PCK LED Unit Size: 30 x 30 mm | Input: 110 VDC with positive check input
KH-5040L-DC110PCK LED Unit Size: 30 x 40 mm | Input: 110 VDC with positive check input
KH-5030L-DC110NCK LED Unit Size: 30 x 30 mm | Input: 110 VDC with negative check input
KH-5040L-DC110NCK LED Unit Size: 30 x 40 mm | Input: 110 VDC with negative check input
KH-5030L-12T LED Unit Size: 30 x 30 mm | Input: 110 VAC with AC-DC converter
KH-5040L-12T LED Unit Size: 30 x 40 mm | Input: 110 VAC with AC-DC converter
KH-5030L-22T LED Unit Size: 30 x 30 mm | Input: 220 VAC with AC-DC converter
KH-5040L-22T LED Unit Size: 30 x 40 mm | Input: 220 VAC with AC-DC converter
