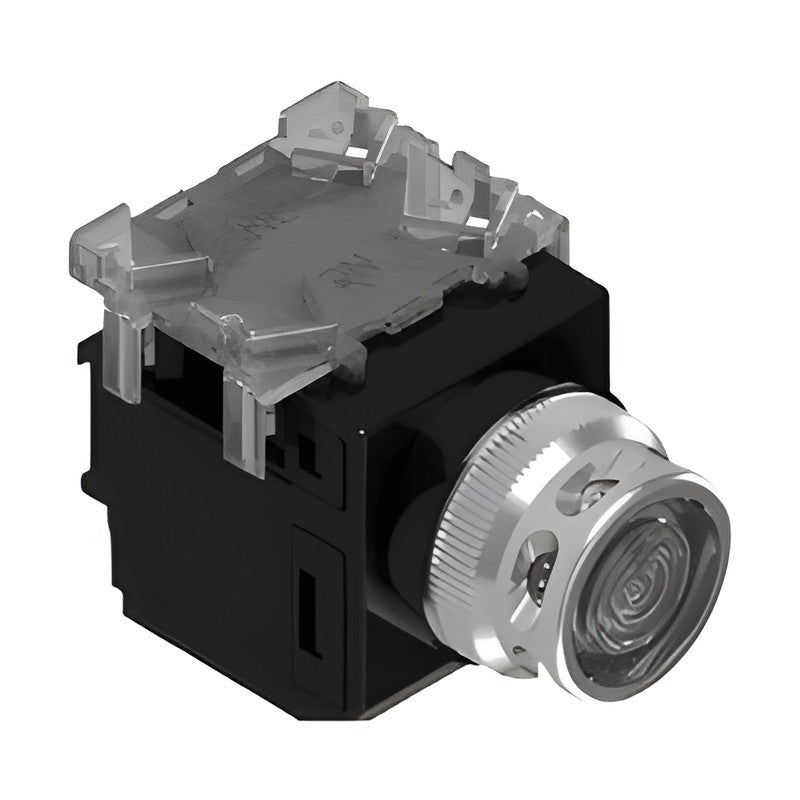

KOINO KH-511 / KH-513 Series Ø25 and Ø30 Illuminated Push Button Switches
KOINO KH-511 / KH-513 Series Ø25 and Ø30 Illuminated Push Button Switches
Ø25 mm and Ø30 mm illuminated push button switches with E10/14 filament or LED lamp.
Key features
- KC certified
- E10/14 filament or LED lamp
- Transformer, full-voltage (TL) and DC (DL) versions
Specifications
| Contact Rating | 250 VAC 6 A (resistive) |
|---|---|
| Contact | 1a+1b |
| Rated Insulation Voltage | 600 V AC or DC |
| Dielectric Strength | 1,500 VAC 50/60 Hz for 1 min |
| Operating Temperature | -25 to +50 °C (no icing) |
| Protection | IP40 |
| Mechanical Life | 250,000 operations (1,800 ops/h) |
| Electrical Life | 100,000 operations (1,800 ops/h) |
| Material | Housing: ABS, Lamp cap: AS, Ring: ABS (colour coated) |
| Lens Colours | Red, Green, Yellow, White, Blue, Orange, Clear, Milky white |
| KH-511 | Size: Ø25 mm | Supply: 110 VAC | Lamp: Filament 6.3 VAC 1.0 W | |
| KH-512 | Size: Ø25 mm | Supply: 220 VAC | Lamp: Filament 6.3 VAC 1.0 W | |
| KH-511L | Size: Ø25 mm | Supply: 110/120 VAC | Lamp: LED 6 V 40 mA | |
| KH-512L | Size: Ø25 mm | Supply: 220 VAC | Lamp: LED 6 V 40 mA | |
| KH-511TL | Size: Ø25 mm | Supply: Full voltage | Lamp: Filament 6.3/12/24 V 1.0 W | |
| KH-511DL | Size: Ø25 mm | Supply: 6-220 VDC | Lamp: LED 20 mA | |
| KH-513 | Size: Ø30 mm | Supply: 110 VAC | Lamp: Filament 6.3 VAC 1.0 W | |
| KH-514 | Size: Ø30 mm | Supply: 220 VAC | Lamp: Filament 6.3 VAC 1.0 W | |
| KH-513L | Size: Ø30 mm | Supply: 110 VAC | Lamp: LED 6 V 40 mA | |
| KH-514L | Size: Ø30 mm | Supply: 220 VAC | Lamp: LED 6 V 40 mA | |
| KH-513TL | Size: Ø30 mm | Supply: Full voltage | Lamp: Filament 6.3/12/24 V 1.0 W | |
| KH-513DL | Size: Ø30 mm | Supply: 6-220 VDC | Lamp: LED 20 mA |
Push Button SwitchesKOINO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KOINO KH-511 / KH-513 Series Ø25 and Ø30 Illuminated Push Button Switches
Available part numbers (12)
KH-511, KH-512, KH-511L, KH-512L, KH-511TL, KH-511DL, KH-513, KH-514, KH-513L, KH-514L + 2 more — see full table ↓
How to order
Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KOINO
Push Button Switches
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KH-511 | Size: Ø25 mm | Supply: 110 VAC | Lamp: Filament 6.3 VAC 1.0 W | ||
| KH-512 | Size: Ø25 mm | Supply: 220 VAC | Lamp: Filament 6.3 VAC 1.0 W | ||
| KH-511L | Size: Ø25 mm | Supply: 110/120 VAC | Lamp: LED 6 V 40 mA | ||
| KH-512L | Size: Ø25 mm | Supply: 220 VAC | Lamp: LED 6 V 40 mA | ||
| KH-511TL | Size: Ø25 mm | Supply: Full voltage | Lamp: Filament 6.3/12/24 V 1.0 W | ||
| KH-511DL | Size: Ø25 mm | Supply: 6-220 VDC | Lamp: LED 20 mA | ||
| KH-513 | Size: Ø30 mm | Supply: 110 VAC | Lamp: Filament 6.3 VAC 1.0 W | ||
| KH-514 | Size: Ø30 mm | Supply: 220 VAC | Lamp: Filament 6.3 VAC 1.0 W | ||
| KH-513L | Size: Ø30 mm | Supply: 110 VAC | Lamp: LED 6 V 40 mA | ||
| KH-514L | Size: Ø30 mm | Supply: 220 VAC | Lamp: LED 6 V 40 mA | ||
| KH-513TL | Size: Ø30 mm | Supply: Full voltage | Lamp: Filament 6.3/12/24 V 1.0 W | ||
| KH-513DL | Size: Ø30 mm | Supply: 6-220 VDC | Lamp: LED 20 mA |
Need a different model, or a part not listed here? Send us your parts list →
