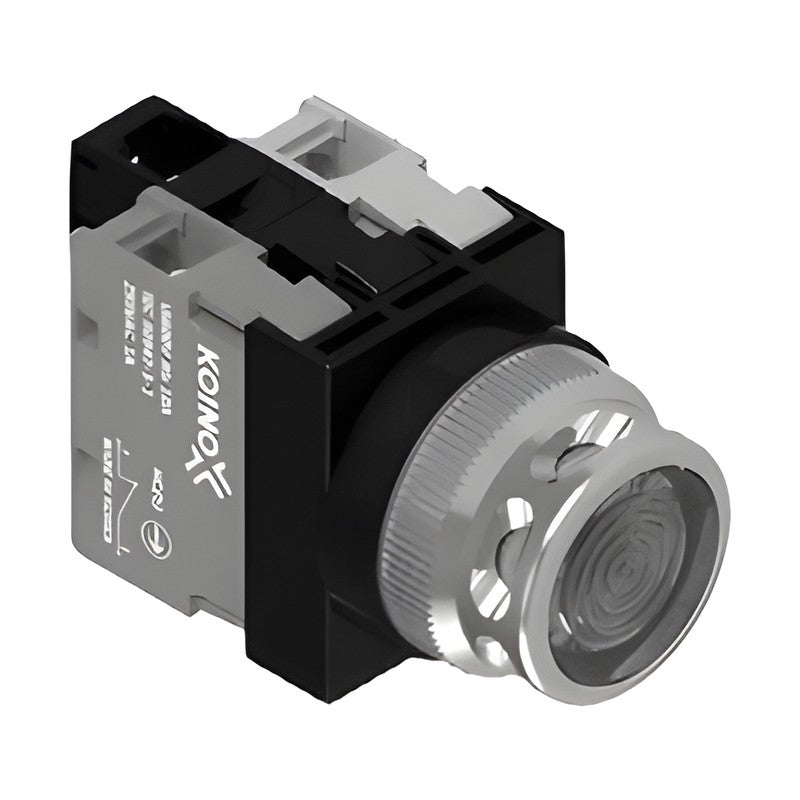

KOINO KH-511LN / KH-513LN Illuminated Push Buttons with Integrated LED Unit

Ø25 mm and Ø30 mm illuminated push button switches with an integrated LED lamp unit.

Key features

KC certified
Integrated LED unit (LU) available separately
LED voltages 24 VDC, 110/220 VAC and 110/220 VDC

Specifications

Contact Rating	250 VAC 3 A (300,000 ops) / 250 VAC 6 A (100,000 ops), resistive
Contact	1A+1B
Supply Voltage	1A: 110 VAC, 2A: 220 VAC, 1C: 24 VDC, 2D: 110 VDC, 4D: 220 VDC
Current Consumption	20 mA max.
Lens Colours	R/G/Y/B/W/O/C (clear)/M (milky white)
Dielectric Strength	2,500 VAC 50/60 Hz for 1 min
Operating Temperature	-25 to +50 °C (no icing)
Protection	IP40
Rated Insulation Voltage	600 V
Rated Impulse Withstand Voltage	6 kV
Thermal Current (Ith)	10 A
Material	Housing: ABS, Lamp cap: AS, Ring: ABS (colour coated)

KOINO KH-511LN / KH-513LN Illuminated Push Buttons with Integrated LED Unit - reference 2

KH-511LN		Mounting Hole: Ø25 mm
KH-513LN		Mounting Hole: Ø30 mm

Push Button SwitchesKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-511LN / KH-513LN Illuminated Push Buttons with Integrated LED Unit

Brand KOINO·Push Button Switches

Available part numbers (2)

KH-511LN, KH-513LN
