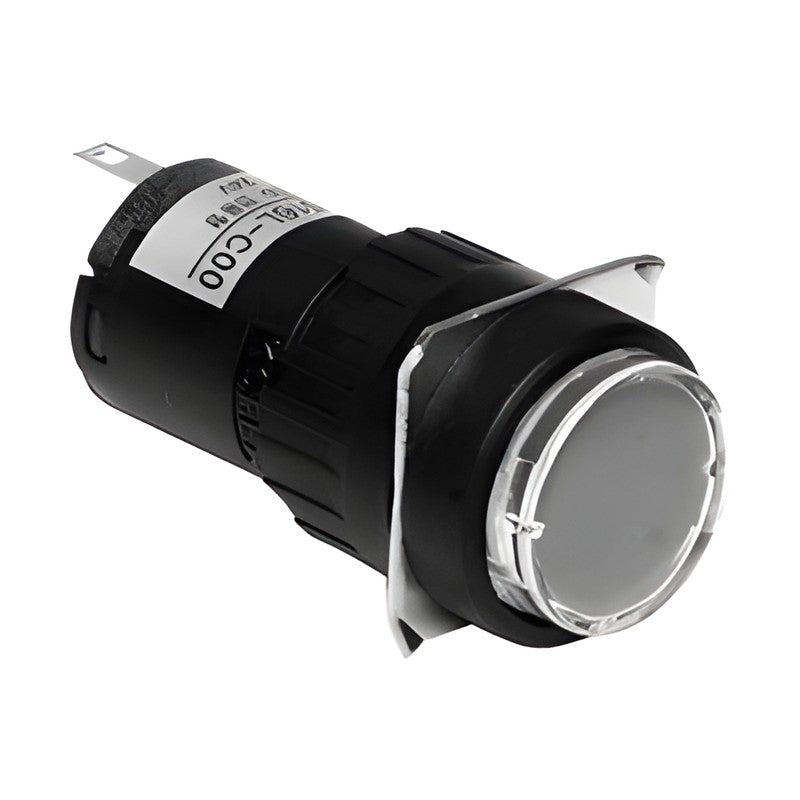

KOINO KH-516 Ø16 Push Button Switches and Indicators

KOINO KH-516 Ø16 Push Button Switches and Indicators

Ø16 mm push button switches and indicators with round, square, rectangular or emergency-type fronts in filament-lamp or LED illuminated and non-illuminated versions.

Key features

  • KC safety certified
  • Reliable contact performance
  • Indicator only, illuminated, latching, non-illuminated and emergency button functions
  • Miniature lamps used
  • Mounting ring tightening torque 6 kgf·cm max

Specifications

Mounting Hole Ø16 mm
Contact Rating 250 VAC 1 A (resistive)
Contact Resistance 30 mΩ max. (initial)
Lamp Rating Filament: 6 V 60 mA / 12 V 40 mA / 24 V 24 mA; LED: 6/12/24 VDC 20 mA
Insulation Resistance 100 MΩ min. (500 VDC)
Dielectric Strength 1,000 VAC 50/60 Hz for 1 min
Electrical Life 70,000 operations min. (1,800 ops/h, rated load)
Operating Temperature -25 to +50 °C (no icing)
Protection IP40
Material Housing: Nylon glass, Button: PC
Ordering Suffix Colour plate R/Y/G/O/W/B and LED voltage 6/12/24 per ordering chart
KOINO KH-516 Ø16 Push Button Switches and Indicators - reference 2
KH-516-C00 Front Shape: Round | Function: Indicator only | Light Source: Filament lamp (discontinued) | Contact: None
KH-516L-C00 Front Shape: Round | Function: Indicator only | Light Source: LED | Contact: None
KH-516-A00 Front Shape: Square | Function: Indicator only | Light Source: Filament lamp (discontinued) | Contact: None
KH-516L-A00 Front Shape: Square | Function: Indicator only | Light Source: LED | Contact: None
KH-516-B00 Front Shape: Rectangular | Function: Indicator only | Light Source: Filament lamp (discontinued) | Contact: None
KH-516L-B00 Front Shape: Rectangular | Function: Indicator only | Light Source: LED | Contact: None
KH-516-C11 Front Shape: Round | Function: Illuminated push button (momentary) | Light Source: Filament lamp (discontinued) | Contact: 1c
KH-516L-C11 Front Shape: Round | Function: Illuminated push button (momentary) | Light Source: LED | Contact: 1c
KH-516-C12 Front Shape: Round | Function: Illuminated push button (momentary) | Light Source: Filament lamp (discontinued) | Contact: 2c
KH-516L-C12 Front Shape: Round | Function: Illuminated push button (momentary) | Light Source: LED | Contact: 2c
KH-516-A11 Front Shape: Square | Function: Illuminated push button (momentary) | Light Source: Filament lamp (discontinued) | Contact: 1c
KH-516L-A11 Front Shape: Square | Function: Illuminated push button (momentary) | Light Source: LED | Contact: 1c
KH-516-A12 Front Shape: Square | Function: Illuminated push button (momentary) | Light Source: Filament lamp (discontinued) | Contact: 2c
KH-516L-A12 Front Shape: Square | Function: Illuminated push button (momentary) | Light Source: LED | Contact: 2c
KH-516-B11 Front Shape: Rectangular | Function: Illuminated push button (momentary) | Light Source: Filament lamp (discontinued) | Contact: 1c
KH-516L-B11 Front Shape: Rectangular | Function: Illuminated push button (momentary) | Light Source: LED | Contact: 1c
KH-516-B12 Front Shape: Rectangular | Function: Illuminated push button (momentary) | Light Source: Filament lamp (discontinued) | Contact: 2c
KH-516L-B12 Front Shape: Rectangular | Function: Illuminated push button (momentary) | Light Source: LED | Contact: 2c
KH-516-C21 Front Shape: Round | Function: Illuminated latching push button | Light Source: Filament lamp (discontinued) | Contact: 1c
KH-516L-C21 Front Shape: Round | Function: Illuminated latching push button | Light Source: LED | Contact: 1c
KH-516-C22 Front Shape: Round | Function: Illuminated latching push button | Light Source: Filament lamp (discontinued) | Contact: 2c
KH-516L-C22 Front Shape: Round | Function: Illuminated latching push button | Light Source: LED | Contact: 2c
KH-516-A21 Front Shape: Square | Function: Illuminated latching push button | Light Source: Filament lamp (discontinued) | Contact: 1c
KH-516L-A21 Front Shape: Square | Function: Illuminated latching push button | Light Source: LED | Contact: 1c
KH-516-A22 Front Shape: Square | Function: Illuminated latching push button | Light Source: Filament lamp (discontinued) | Contact: 2c
KH-516L-A22 Front Shape: Square | Function: Illuminated latching push button | Light Source: LED | Contact: 2c
KH-516-B21 Front Shape: Rectangular | Function: Illuminated latching push button | Light Source: Filament lamp (discontinued) | Contact: 1c
KH-516L-B21 Front Shape: Rectangular | Function: Illuminated latching push button | Light Source: LED | Contact: 1c
KH-516-B22 Front Shape: Rectangular | Function: Illuminated latching push button | Light Source: Filament lamp (discontinued) | Contact: 2c
KH-516L-B22 Front Shape: Rectangular | Function: Illuminated latching push button | Light Source: LED | Contact: 2c
KH-516-C31 Front Shape: Round | Function: Non-illuminated push button (momentary) | Contact: 1c
KH-516-C32 Front Shape: Round | Function: Non-illuminated push button (momentary) | Contact: 2c
KH-516-A31 Front Shape: Square | Function: Non-illuminated push button (momentary) | Contact: 1c
KH-516-A32 Front Shape: Square | Function: Non-illuminated push button (momentary) | Contact: 2c
KH-516-B31 Front Shape: Rectangular | Function: Non-illuminated push button (momentary) | Contact: 1c
KH-516-B32 Front Shape: Rectangular | Function: Non-illuminated push button (momentary) | Contact: 2c
KH-516-C41 Front Shape: Round | Function: Non-illuminated latching push button | Contact: 1c
KH-516-C42 Front Shape: Round | Function: Non-illuminated latching push button | Contact: 2c
KH-516-A41 Front Shape: Square | Function: Non-illuminated latching push button | Contact: 1c
KH-516-A42 Front Shape: Square | Function: Non-illuminated latching push button | Contact: 2c
KH-516-B41 Front Shape: Rectangular | Function: Non-illuminated latching push button | Contact: 1c
KH-516-B42 Front Shape: Rectangular | Function: Non-illuminated latching push button | Contact: 2c
KH-516-D31 Front Shape: Emergency (mushroom) | Function: Emergency push button (momentary) | Contact: 1c
KH-516-D32 Front Shape: Emergency (mushroom) | Function: Emergency push button (momentary) | Contact: 2c
KH-516-D41 Front Shape: Emergency (mushroom) | Function: Emergency latching push button | Contact: 1c
KH-516-D42 Front Shape: Emergency (mushroom) | Function: Emergency latching push button | Contact: 2c
