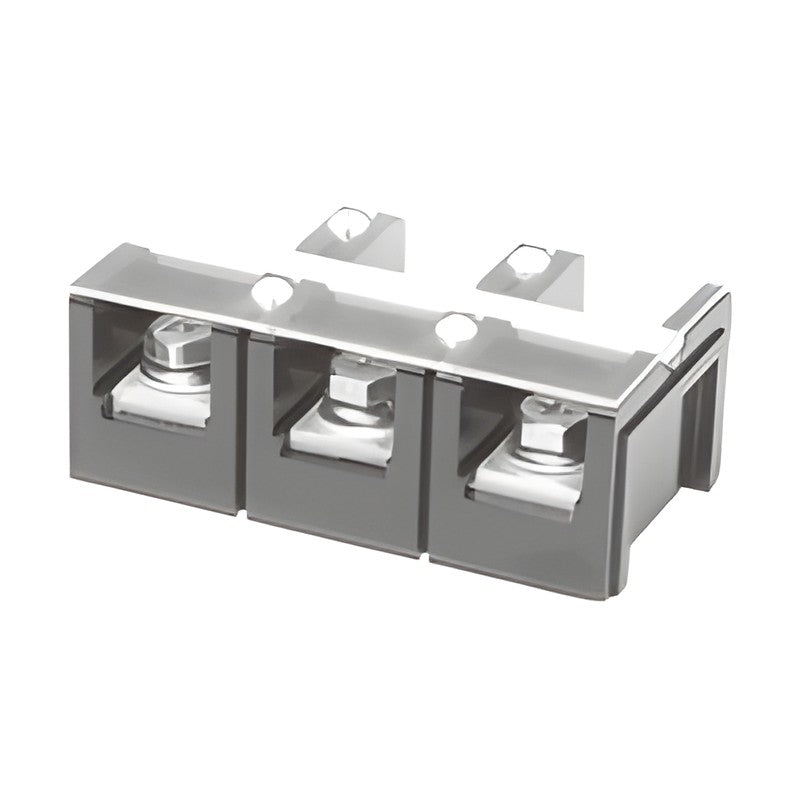

KOINO KH-60 Series Fixed Terminal Blocks 10-700 A

KOINO KH-60 Series Fixed Terminal Blocks 10-700 A

Fixed (one-piece) screw terminal blocks with transparent covers, rated 10 A to 700 A, in 3 to 20 pole versions.

Key features

  • Rated current from 10 A to 700 A
  • Transparent ABS cover and white PVC marker strip
  • Stainless steel version produced on order
  • CE marked (500 A and above shown with CE)

Specifications

Rated insulation voltage 600 V
Insulation resistance 100 MOhm min.
Dielectric strength 2,500 VAC 1 min
Body Phenol (black)
Cover ABS (transparent)
Marker strip PVC (white)
KH-6010-10 Rated current: 10 A | Poles: 10P | Terminal bolt: M3 | Applicable wire: 2.5 mm2 | Dimensions LxWxH: 113 x 23 x 27 mm | Terminal: Brass | Weight: Approx. 72 g
KH-6020-3 Rated current: 20 A | Poles: 3P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 54 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 47 g
KH-6020-4 Rated current: 20 A | Poles: 4P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 66 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 58 g
KH-6020-6 Rated current: 20 A | Poles: 6P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 89 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 82 g
KH-6020-8 Rated current: 20 A | Poles: 8P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 112 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 103 g
KH-6020-10 Rated current: 20 A | Poles: 10P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 136 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 127 g
KH-6020-12 Rated current: 20 A | Poles: 12P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 160 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 152 g
KH-6020-15 Rated current: 20 A | Poles: 15P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 196 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 185 g
KH-6020-20 Rated current: 20 A | Poles: 20P | Terminal bolt: M4 | Applicable wire: 4 mm2 | Dimensions LxWxH: 251 x 30 x 27 mm | Terminal: Brass | Weight: Approx. 245 g
KH-6030-3 Rated current: 30 A | Poles: 3P | Terminal bolt: M4.5 | Applicable wire: 6 mm2 | Dimensions LxWxH: 60 x 33 x 27 mm | Terminal: Brass | Weight: Approx. 63 g
KH-6030-4 Rated current: 30 A | Poles: 4P | Terminal bolt: M4.5 | Applicable wire: 6 mm2 | Dimensions LxWxH: 73 x 33 x 27 mm | Terminal: Brass | Weight: Approx. 77 g
KH-6030-6 Rated current: 30 A | Poles: 6P | Terminal bolt: M4.5 | Applicable wire: 6 mm2 | Dimensions LxWxH: 100 x 33 x 27 mm | Terminal: Brass | Weight: Approx. 110 g
KH-6030-10 Rated current: 30 A | Poles: 10P | Terminal bolt: M4.5 | Applicable wire: 6 mm2 | Dimensions LxWxH: 156 x 33 x 27 mm | Terminal: Brass | Weight: Approx. 172 g
KH-6045-10 Rated current: 45 A | Poles: 10P | Terminal bolt: M5 | Applicable wire: 16 mm2 | Dimensions LxWxH: 171 x 36 x 27 mm | Terminal: Brass | Weight: Approx. 235 g
KH-6060-3 Rated current: 60 A | Poles: 3P | Terminal bolt: M6 | Applicable wire: 25 mm2 | Dimensions LxWxH: 85 x 40 x 36 mm | Terminal: Brass | Weight: Approx. 142 g
KH-6060-4 Rated current: 60 A | Poles: 4P | Terminal bolt: M6 | Applicable wire: 25 mm2 | Dimensions LxWxH: 113 x 40 x 36 mm | Terminal: Brass | Weight: Approx. 190 g
KH-60100-3 Rated current: 100 A | Poles: 3P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Dimensions LxWxH: 105 x 56 x 41.5 mm | Terminal: Brass | Weight: Approx. 300 g
KH-60100-4 Rated current: 100 A | Poles: 4P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Dimensions LxWxH: 140 x 56 x 41.5 mm | Terminal: Brass | Weight: Approx. 406 g
KH-60150-3 Rated current: 150 A | Poles: 3P | Terminal bolt: M10 | Applicable wire: 70 mm2 | Dimensions LxWxH: 116 x 68 x 45.5 mm | Terminal: Brass | Weight: Approx. 499 g
KH-60150-4 Rated current: 150 A | Poles: 4P | Terminal bolt: M10 | Applicable wire: 70 mm2 | Dimensions LxWxH: 154.5 x 68 x 45.5 mm | Terminal: Brass | Weight: Approx. 690 g
KH-60200-3 Rated current: 200 A | Poles: 3P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Dimensions LxWxH: 135 x 73 x 49.5 mm | Terminal: Brass | Weight: Approx. 591 g
KH-60200-4 Rated current: 200 A | Poles: 4P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Dimensions LxWxH: 180 x 73 x 49.5 mm | Terminal: Brass | Weight: Approx. 796 g
KH-60300-3 Rated current: 300 A | Poles: 3P | Terminal bolt: M12 | Applicable wire: 185 mm2 | Dimensions LxWxH: 155 x 83 x 54 mm | Terminal: Brass | Weight: Approx. 939 g
KH-60300-4 Rated current: 300 A | Poles: 4P | Terminal bolt: M12 | Applicable wire: 185 mm2 | Dimensions LxWxH: 208 x 83 x 54 mm | Terminal: Brass | Weight: Approx. 1,278 g
KH-60400-3 Rated current: 400 A | Poles: 3P | Terminal bolt: M12 | Applicable wire: 185 mm2 | Dimensions LxWxH: 155 x 83 x 54 mm | Terminal: Brass | Weight: Approx. 1,010 g
KH-60400-4 Rated current: 400 A | Poles: 4P | Terminal bolt: M12 | Applicable wire: 185 mm2 | Dimensions LxWxH: 208 x 83 x 54 mm | Terminal: Brass | Weight: Approx. 1,370 g
KH-60500-3 Rated current: 500 A | Poles: 3P | Terminal bolt: M12 | Applicable wire: 300 mm2 | Dimensions LxWxH: 194 x 97.5 x 59.5 mm | Terminal: Brass | Weight: Approx. 1,615 g
KH-60500-4 Rated current: 500 A | Poles: 4P | Terminal bolt: M12 | Applicable wire: 300 mm2 | Dimensions LxWxH: 260 x 97.5 x 59.5 mm | Terminal: Brass | Weight: Approx. 2,163 g
KH-60630-3 Rated current: 630 A | Poles: 3P | Terminal bolt: M12 | Applicable wire: 300 mm2 | Dimensions LxWxH: 194 x 97.5 x 59.5 mm | Terminal: Copper | Weight: Approx. 2,030 g
KH-60630-4 Rated current: 630 A | Poles: 4P | Terminal bolt: M12 | Applicable wire: 300 mm2 | Dimensions LxWxH: 260 x 97.5 x 59.5 mm | Terminal: Copper | Weight: Approx. 2,730 g
KH-60700-3 Rated current: 700 A | Poles: 3P | Terminal bolt: M12 | Applicable wire: 300 mm2 | Dimensions LxWxH: 194 x 97.5 x 59.5 mm | Terminal: Copper | Weight: Approx. 2,270 g
KH-60700-4 Rated current: 700 A | Poles: 4P | Terminal bolt: M12 | Applicable wire: 300 mm2 | Dimensions LxWxH: 260 x 97.5 x 59.5 mm | Terminal: Copper | Weight: Approx. 3,030 g
Terminal BlocksKOINO
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-60 Series Fixed Terminal Blocks 10-700 A

Brand KOINO·Terminal Blocks

Available part numbers (32)

KH-6010-10, KH-6020-3, KH-6020-4, KH-6020-6, KH-6020-8, KH-6020-10, KH-6020-12, KH-6020-15, KH-6020-20, KH-6030-3 + 22 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
