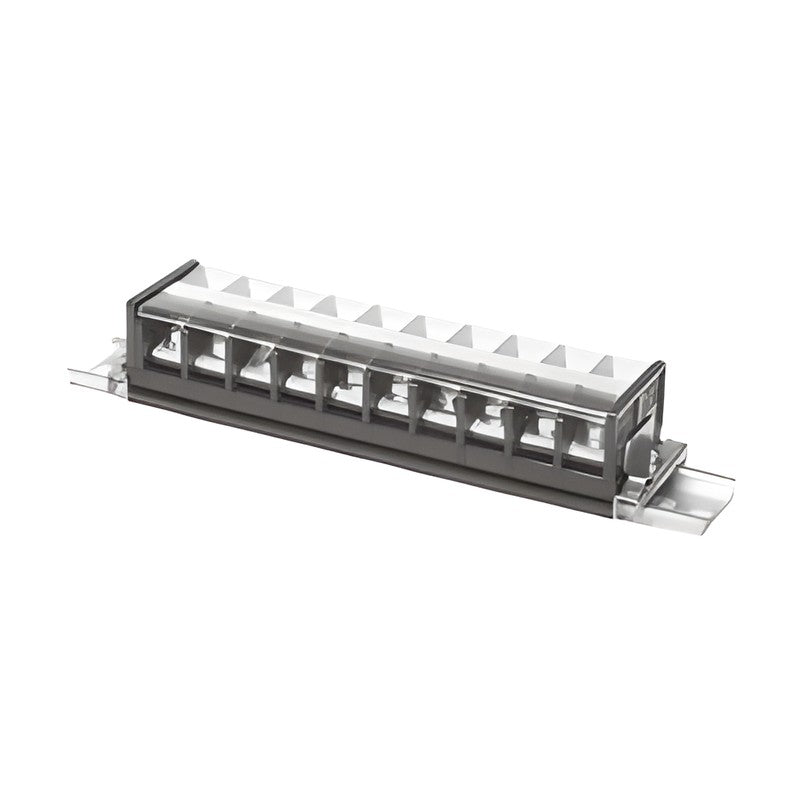

KOINO KH-61 Series Modular (Assembly Type) Terminal Blocks

KOINO KH-61 Series Modular (Assembly Type) Terminal Blocks

Rail-mounted assembly-type terminal block units that can be combined with separators and stoppers at any position.

Key features

  • Terminal blocks, separators and stoppers can be attached and removed at any position
  • S types: spring-loaded terminal screw stays captive even when fully loosened
  • CE certified (EN 60947-1 / 60947-7-1)

Specifications

Rated insulation voltage 600 V
Insulation resistance 100 MOhm min.
Dielectric strength 2,500 VAC 1 min
Body Noryl (black)
Cover PC (transparent)
Terminal Brass
Marker strip PVC (white)
Certification CE (EN 60947-1 / 60947-7-1)
KH-6110S Rated current: 10 A | Terminal bolt: M3 | Applicable wire: 1.5 mm2 | Weight: Approx. 6.5 g
KH-6115S Rated current: 15 A | Terminal bolt: M3.5 | Applicable wire: 2.5 mm2 | Weight: Approx. 7.7 g
KH-6120S Rated current: 20 A | Terminal bolt: M4 | Applicable wire: 4 mm2 | Weight: Approx. 12 g
KH-6130 Rated current: 30 A | Terminal bolt: M4.5 | Applicable wire: 6 mm2 | Weight: Approx. 15 g
KH-6160 Rated current: 60 A | Terminal bolt: M6 | Applicable wire: 25 mm2 | Weight: Approx. 31 g
Terminal BlocksKOINO
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-61 Series Modular (Assembly Type) Terminal Blocks

Brand KOINO·Terminal Blocks

Available part numbers (5)

KH-6110S, KH-6115S, KH-6120S, KH-6130, KH-6160

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-6110SRated current: 10 A | Terminal bolt: M3 | Applicable wire: 1.5 mm2 | Weight: Approx. 6.5 g
KH-6115SRated current: 15 A | Terminal bolt: M3.5 | Applicable wire: 2.5 mm2 | Weight: Approx. 7.7 g
KH-6120SRated current: 20 A | Terminal bolt: M4 | Applicable wire: 4 mm2 | Weight: Approx. 12 g
KH-6130Rated current: 30 A | Terminal bolt: M4.5 | Applicable wire: 6 mm2 | Weight: Approx. 15 g
KH-6160Rated current: 60 A | Terminal bolt: M6 | Applicable wire: 25 mm2 | Weight: Approx. 31 g
