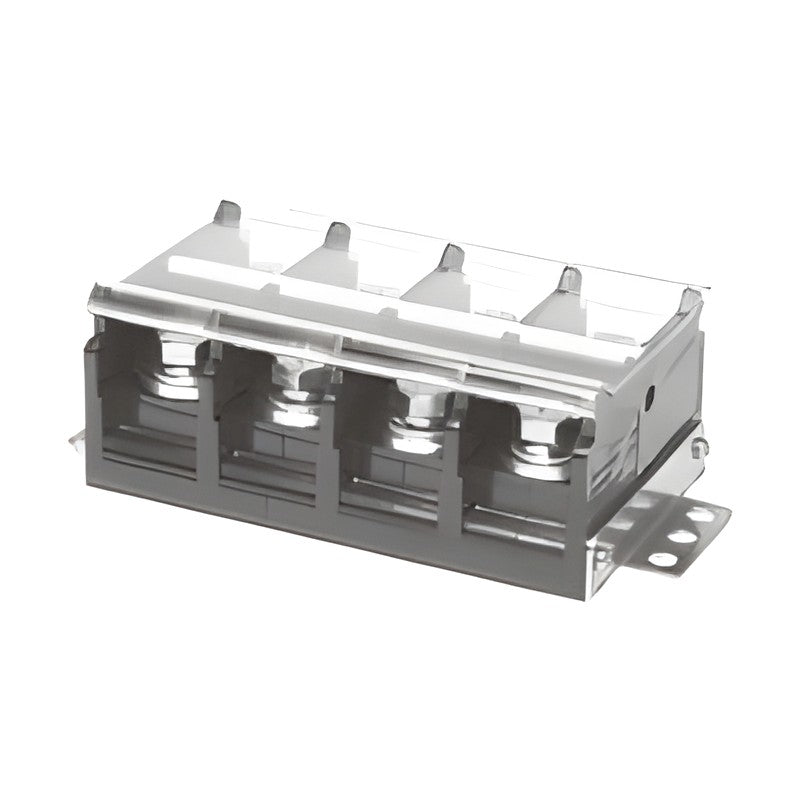

KOINO KH-65 Series Panel / DIN Rail Mount Power Terminal Blocks

KOINO KH-65 Series Panel / DIN Rail Mount Power Terminal Blocks

High-current terminal blocks rated 100-350 A for panel mounting or DIN rail mounting, in 2, 3 and 4 pole versions.

Key features

  • Panel mount or DIN rail mount versions. 2P, 3P and 4P versions
  • CE and UL/cUL certified

Specifications

Rated insulation voltage 600 V
Insulation resistance 100 MOhm min.
Dielectric strength 2,500 VAC 1 min
Body Noryl (black)
Cover PC (transparent)
Terminal Brass
Certification CE (EN 60947-1 / 60947-5-1), UL/cUL (UL1059, CSA C22.2 No.158)
KH-65100-2P Rated current: 100 A | Poles: 2P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Mounting: Panel mount
KH-65100-3P Rated current: 100 A | Poles: 3P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Mounting: Panel mount
KH-65100-4P Rated current: 100 A | Poles: 4P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Mounting: Panel mount
KH-65200-2P Rated current: 200 A | Poles: 2P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Mounting: Panel mount
KH-65200-3P Rated current: 200 A | Poles: 3P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Mounting: Panel mount
KH-65200-4P Rated current: 200 A | Poles: 4P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Mounting: Panel mount
KH-65350-2P Rated current: 350 A | Poles: 2P | Terminal bolt: M12 | Applicable wire: 240 mm2 | Mounting: Panel mount
KH-65350-3P Rated current: 350 A | Poles: 3P | Terminal bolt: M12 | Applicable wire: 240 mm2 | Mounting: Panel mount
KH-65350-4P Rated current: 350 A | Poles: 4P | Terminal bolt: M12 | Applicable wire: 240 mm2 | Mounting: Panel mount
Terminal BlocksKOINO
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-65 Series Panel / DIN Rail Mount Power Terminal Blocks

Brand KOINO·Terminal Blocks

Available part numbers (9)

KH-65100-2P, KH-65100-3P, KH-65100-4P, KH-65200-2P, KH-65200-3P, KH-65200-4P, KH-65350-2P, KH-65350-3P, KH-65350-4P

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-65100-2PRated current: 100 A | Poles: 2P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Mounting: Panel mount
KH-65100-3PRated current: 100 A | Poles: 3P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Mounting: Panel mount
KH-65100-4PRated current: 100 A | Poles: 4P | Terminal bolt: M8 | Applicable wire: 50 mm2 | Mounting: Panel mount
KH-65200-2PRated current: 200 A | Poles: 2P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Mounting: Panel mount
KH-65200-3PRated current: 200 A | Poles: 3P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Mounting: Panel mount
KH-65200-4PRated current: 200 A | Poles: 4P | Terminal bolt: M10 | Applicable wire: 120 mm2 | Mounting: Panel mount
KH-65350-2PRated current: 350 A | Poles: 2P | Terminal bolt: M12 | Applicable wire: 240 mm2 | Mounting: Panel mount
KH-65350-3PRated current: 350 A | Poles: 3P | Terminal bolt: M12 | Applicable wire: 240 mm2 | Mounting: Panel mount
KH-65350-4PRated current: 350 A | Poles: 4P | Terminal bolt: M12 | Applicable wire: 240 mm2 | Mounting: Panel mount
