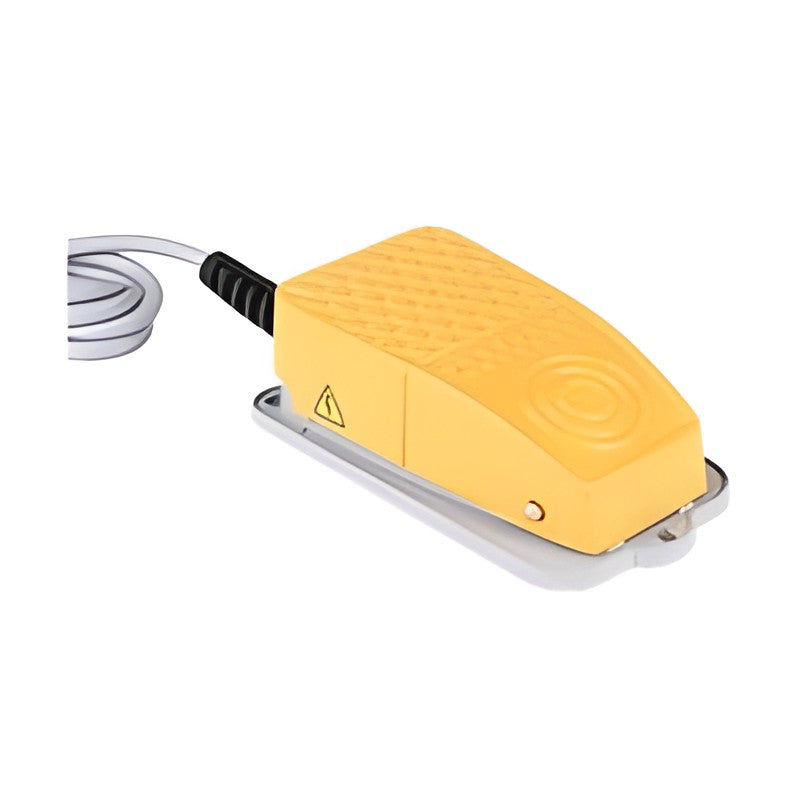

KOINO KH-8014 / KH-8116 / KH-8117 Foot Switches

KOINO KH-8014 / KH-8116 / KH-8117 Foot Switches

Aluminum alloy and plastic foot switches for industrial and household equipment, in open, guarded and twin-pedal versions.

Key features

  • Aluminum die-cast construction
  • For industrial and household equipment
  • KC certified

Specifications

Rating 250 VAC 10 A
Insulation resistance 100 MOhm min. (500 VDC)
Contact resistance 80 mOhm max.
Dielectric strength 1000/1500 VAC min.
Operating temperature -25 to +70 C
Operating humidity 85 %RH max.
Material Aluminum alloy, plastic
Certification KC (KC 61058-1)
KH-8014 Contact: 1C | Cable: 0.5 mm2 x 3 wires x 1.5 m | Protection: IP54 | Weight: Approx. 131 g
KH-8116 Contact: 1C | Protection: IP65 | Weight: Approx. 340 g
KH-8117 Contact: 1C | Protection: IP65 | Weight: Approx. 428 g
KH-8023 Contact: 1C x 2 (twin pedal) | Protection: IP65 | Weight: Approx. 416 g | Status: Discontinued
Foot SwitchesKOINO
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-8014 / KH-8116 / KH-8117 Foot Switches

Brand KOINO·Foot Switches

Available part numbers (4)

KH-8014, KH-8116, KH-8117, KH-8023

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-8014Contact: 1C | Cable: 0.5 mm2 x 3 wires x 1.5 m | Protection: IP54 | Weight: Approx. 131 g
KH-8116Contact: 1C | Protection: IP65 | Weight: Approx. 340 g
KH-8117Contact: 1C | Protection: IP65 | Weight: Approx. 428 g
KH-8023Contact: 1C x 2 (twin pedal) | Protection: IP65 | Weight: Approx. 416 g | Status: Discontinued
