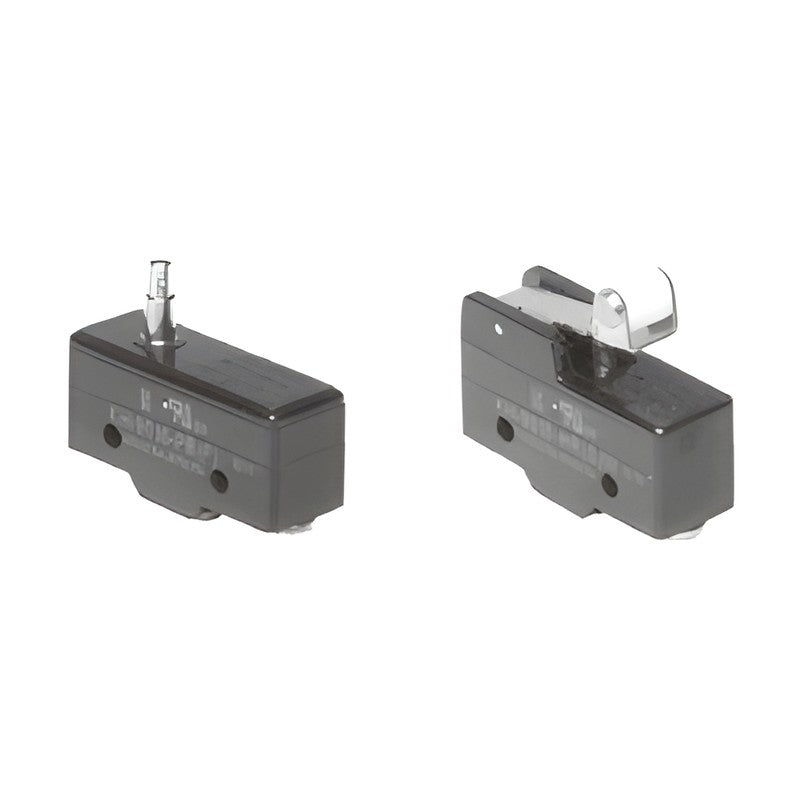

KOINO KH-9015 Series General Purpose Micro Switches 15 A

KOINO KH-9015 Series General Purpose Micro Switches 15 A

General purpose basic micro switches rated 15 A with plunger, roller and hinge lever actuators and screw terminals. 15 A contact rating for direct switching of high-capacity loads.

Key features

  • KC, UL/cUL (UL508, No
  • E117960), CE, RoHS; CCC (except HRS-W)
  • Tested to elevator-related standard KSC IEC 60947-5-1
  • KH-9115-HRS: one-way hinge roller short lever
  • KH-9015-HRS-W: wide roller version of the hinge roller short lever

Specifications

Rating 125 VAC 15 A (resistive)
Electrical ratings 600 VAC 3 A, 250 VAC 10 A, 125 VAC 15 A, 8/14 VDC 15 A, 30 VDC 6 A, 125 VDC 0.4 A, 250 VDC 0.2 A
Protection IP50
Terminals M4 screw
Housing Phenol, black
KH-9015-PBF Actuator: Spring plunger (standard)
KH-9015-PBL Actuator: Panel mount plunger
KH-9015-PBS Actuator: Spring short plunger
KH-9015-RP Actuator: Roller panel mount plunger
KH-9015-HP Actuator: Hinge special lever
KH-9015-HL Actuator: Hinge lever
KH-9015-HLL Actuator: Hinge long lever
KH-9015-CRP Actuator: Cross roller panel mount plunger
KH-9015-HRL Actuator: Hinge roller long lever
KH-9015-HRS Actuator: Hinge roller short lever
KH-9015-HRM Actuator: Hinge roller medium lever
KH-9015-HLZ Actuator: Hinge special lever | Status: Discontinued
KH-9015-HRS-W Actuator: Hinge roller short lever, wide roller (acetal) | OF max: 160 g | OP: 30.2 +/- 2.0 mm | Certification: UL/cUL, KC, CE (no CCC)
KH-9115-HRS Actuator: One-way hinge roller short lever | OF max: 160 g | OP: 41.3 +/- 2.0 mm
Micro SwitchesKOINO
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-9015 Series General Purpose Micro Switches 15 A

Brand KOINO·Micro Switches

Available part numbers (14)

KH-9015-PBF, KH-9015-PBL, KH-9015-PBS, KH-9015-RP, KH-9015-HP, KH-9015-HL, KH-9015-HLL, KH-9015-CRP, KH-9015-HRL, KH-9015-HRS + 4 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-9015-PBFActuator: Spring plunger (standard)
KH-9015-PBLActuator: Panel mount plunger
KH-9015-PBSActuator: Spring short plunger
KH-9015-RPActuator: Roller panel mount plunger
KH-9015-HPActuator: Hinge special lever
KH-9015-HLActuator: Hinge lever
KH-9015-HLLActuator: Hinge long lever
KH-9015-CRPActuator: Cross roller panel mount plunger
KH-9015-HRLActuator: Hinge roller long lever
KH-9015-HRSActuator: Hinge roller short lever
KH-9015-HRMActuator: Hinge roller medium lever
KH-9015-HLZActuator: Hinge special lever | Status: Discontinued
KH-9015-HRS-WActuator: Hinge roller short lever, wide roller (acetal) | OF max: 160 g | OP: 30.2 +/- 2.0 mm | Certification: UL/cUL, KC, CE (no CCC)
KH-9115-HRSActuator: One-way hinge roller short lever | OF max: 160 g | OP: 41.3 +/- 2.0 mm
