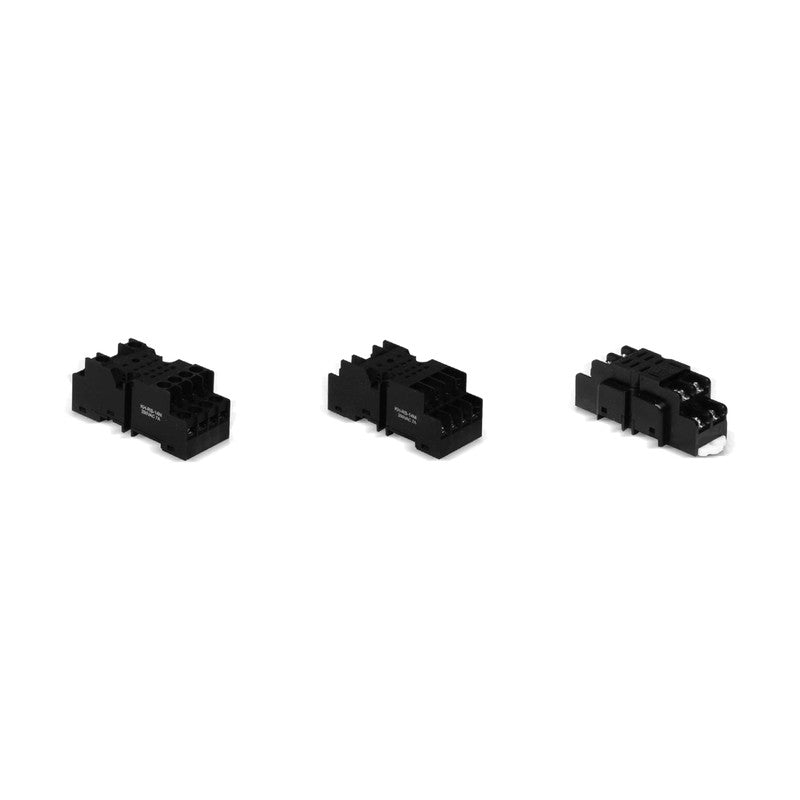

KOINO KH-RS-14N / KH-RS-14M Relay Sockets

KOINO KH-RS-14N / KH-RS-14M Relay Sockets

DIN-rail or panel-mount screw-terminal sockets for miniature power relays, in 14-terminal and 8-terminal versions.

Key features

  • CE certified
  • UL/cUL certified, max. surrounding air temperature 40 C
  • DIN rail mounting (KH-TBR-2)

Specifications

Rated Insulation Voltage 250 V
Insulation Resistance 100 MOhm (500 VDC)
Dielectric Strength 2,000 VAC 50/60 Hz, 1 min
Material Nylon glass (black)
Rail KH-TBR-2
KH-RS-14N Terminals: 14 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 45 g
KH-RS-14N-8 Terminals: 8 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 45 g
KH-RS-14M Terminals: 14 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 36 g
KH-RS-14M-8 Terminals: 8 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 36 g
KH-RS-H2C Terminals: 8 | Rating: 250 V 10 A | Screw: M3.5 | Weight: Approx. 42 g | Status: Discontinued
Relay SocketsKOINO
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-RS-14N / KH-RS-14M Relay Sockets

Brand KOINO·Relay Sockets

Available part numbers (5)

KH-RS-14N, KH-RS-14N-8, KH-RS-14M, KH-RS-14M-8, KH-RS-H2C

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-RS-14NTerminals: 14 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 45 g
KH-RS-14N-8Terminals: 8 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 45 g
KH-RS-14MTerminals: 14 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 36 g
KH-RS-14M-8Terminals: 8 | Rating: 250 V 7 A | Screw: M3 | Weight: Approx. 36 g
KH-RS-H2CTerminals: 8 | Rating: 250 V 10 A | Screw: M3.5 | Weight: Approx. 42 g | Status: Discontinued
