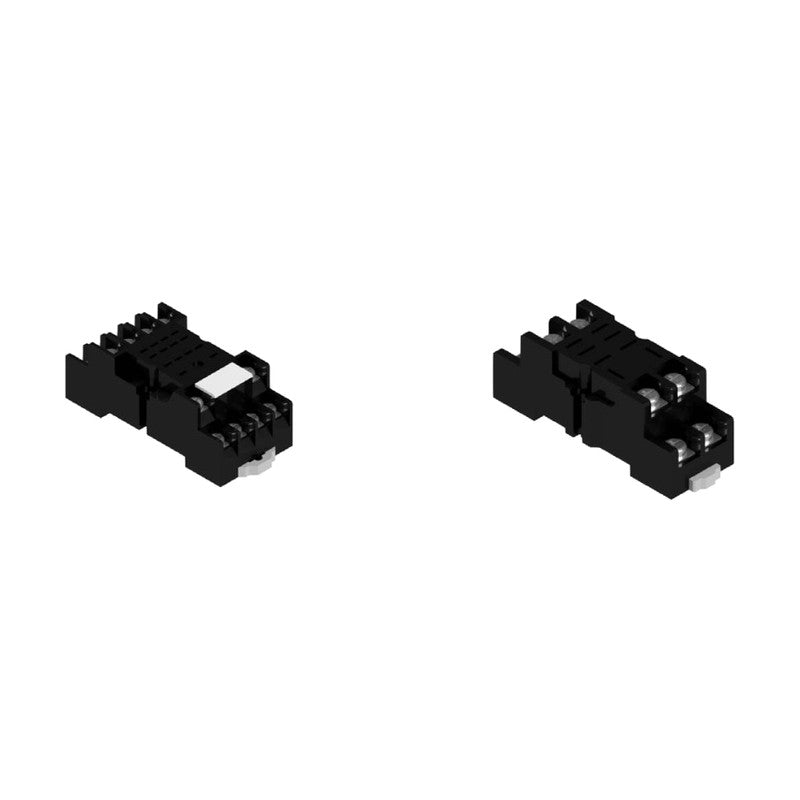

KOINO KH-RS-14S / KH-RS-H2CS Relay Sockets

KOINO KH-RS-14S / KH-RS-H2CS Relay Sockets

Screw-terminal relay sockets rated 10 A for miniature power relays, in 14-terminal, 8-terminal and H2C versions.

Key features

  • CE certified (KH-RS-14S, 14S-8)
  • DIN rail mounting (KH-TBR-2)

Specifications

Rated Insulation Voltage 250 V
Insulation Resistance 100 MOhm (500 VDC)
Rated Current 10 A
Dielectric Strength 2,500 VAC 50/60 Hz, 1 min
Material PA66 (black)
Rail KH-TBR-2
KH-RS-14S Terminals: 14 | Screw: M3 | Weight: Approx. 46 g
KH-RS-14S-8 Terminals: 8 | Screw: M3 | Weight: Approx. 46 g
KH-RS-H2CS Terminals: 8 | Screw: M3.5 | Weight: Approx. 42 g
Relay SocketsKOINO
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-RS-14S / KH-RS-H2CS Relay Sockets

Brand KOINO·Relay Sockets

Available part numbers (3)

KH-RS-14S, KH-RS-14S-8, KH-RS-H2CS

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH-RS-14STerminals: 14 | Screw: M3 | Weight: Approx. 46 g
KH-RS-14S-8Terminals: 8 | Screw: M3 | Weight: Approx. 46 g
KH-RS-H2CSTerminals: 8 | Screw: M3.5 | Weight: Approx. 42 g
