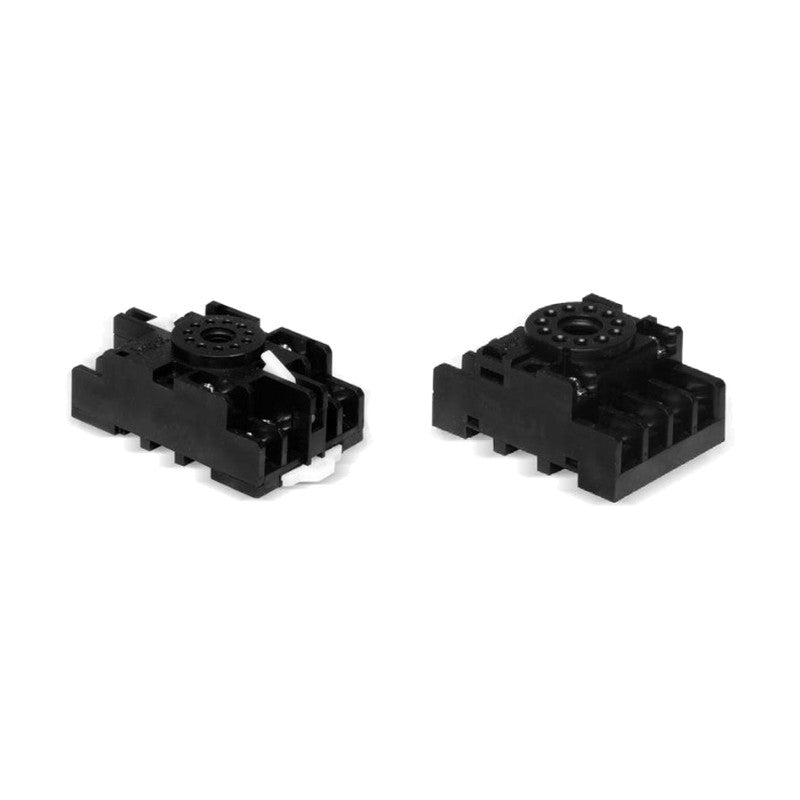

KOINO KH-TDR-R11 / KH-RS-R11 11-Pin Sockets

11-pin octal screw-terminal sockets for plug-in relays, timers and controllers, DIN rail or panel mount.

Key features

CE certified
UL/cUL certified, surrounding air 50 C max. (KH-TDR-R11)
RoHS compliant
DIN rail mounting
Direct panel mounting with M4 bolts

Specifications

Rated Insulation Voltage	250 V
Insulation Resistance	100 MOhm (500 VDC)
Rated Current	10 A
Dielectric Strength	2,000 VAC 50/60 Hz, 1 min
Terminal Screw	M3.5
Material	PBT glass (black)
Rail	KH-TBR-2

KH-TDR-R11		Weight: Approx. 89 g \| Certification: UL/cUL, CE
KH-RS-R11		Weight: Approx. 57 g \| Certification: CE

Relay SocketsKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KH-TDR-R11 / KH-RS-R11 11-Pin Sockets

Brand KOINO·Relay Sockets

Available part numbers (2)

KH-TDR-R11, KH-RS-R11

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
