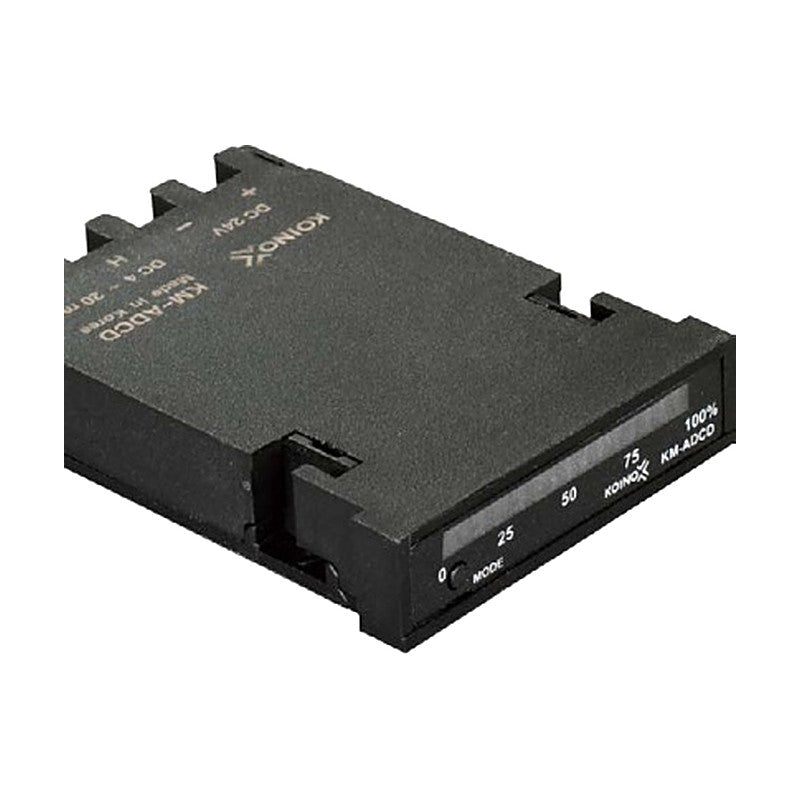

KOINO KM-ADCD 4-20 mA LED Bar Graph Panel Meters

Compact panel meter that displays a 4-20 mA DC current input as a 0-100% red/green LED bar graph.

Key features

Compact size 49 (W) x 12.7 (H) x 68 (D) mm
DC current input shown as LED bar graph 0-100%
Simple span adjustment via front MODE switch

Specifications

Input	4-20 mA DC (max. 20 mA +/-10%)
Supply Voltage	24 VDC +/-10%
Power Consumption	0.5 W max.
Display	Red/green LED bar graph
Accuracy	1% max.
Connection	Screw terminals
Ambient Temperature	-10 to +55 C
Housing	Nylon
Weight	Approx. 35 g

KOINO KM-ADCD 4-20 mA LED Bar Graph Panel Meters - reference 2

KM-ADCD		Mounting: Horizontal
KM-ADCDV		Mounting: Vertical

Panel MetersKOINO

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KM-ADCD 4-20 mA LED Bar Graph Panel Meters

Brand KOINO·Panel Meters

Available part numbers (2)

KM-ADCD, KM-ADCDV
