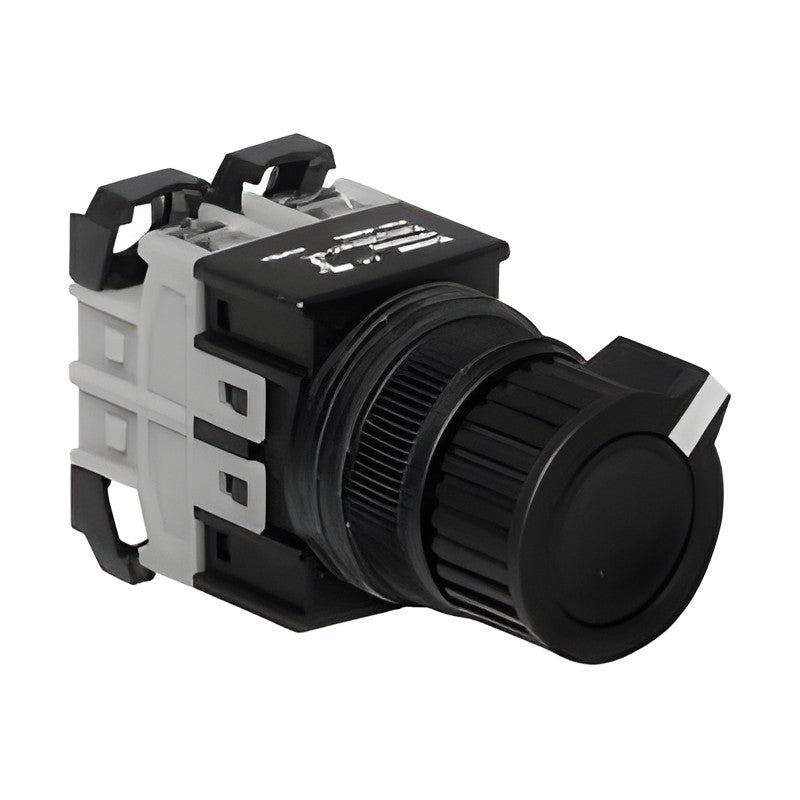

KOINO KPB25MS / KPB30MS Selective Push Button Switches

KOINO KPB25MS / KPB30MS Selective Push Button Switches

Ø25 mm and Ø30 mm selective push button switches whose knob is turned to choose between push-enabled and push-disabled positions.

Key features

  • KC, CE, UL/cUL and CCC certified
  • Selective push operation in two knob positions
  • Up to 4 contact blocks

Specifications

Contact Rating 250 VAC 6 A (resistive)
Insulation Resistance 100 MΩ min. (500 VDC)
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -25 to +50 °C (no icing)
Electrical Life 500,000 operations min.
Contact Blocks Up to 4
Button Colours R/G/Y/B/W/BK
Material Body: Nylon glass, Contact block: Nylon, Ring: ABS, Button: Acetal
Certification KC, UL/cUL, CE, CCC
Protection IP40
KPB25MS Mounting Hole: Ø25 mm | Operation: Position 1 select push, position 2 select push
KPB25ML Mounting Hole: Ø25 mm | Operation: Position 1 push disabled, position 2 select push
KPB30MS Mounting Hole: Ø30 mm | Operation: Position 1 select push, position 2 select push
KPB30ML Mounting Hole: Ø30 mm | Operation: Position 1 push disabled, position 2 select push
Push Button SwitchesKOINO
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPB25MS / KPB30MS Selective Push Button Switches

Brand KOINO·Push Button Switches

Available part numbers (4)

KPB25MS, KPB25ML, KPB30MS, KPB30ML

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPB25MSMounting Hole: Ø25 mm | Operation: Position 1 select push, position 2 select push
KPB25MLMounting Hole: Ø25 mm | Operation: Position 1 push disabled, position 2 select push
KPB30MSMounting Hole: Ø30 mm | Operation: Position 1 select push, position 2 select push
KPB30MLMounting Hole: Ø30 mm | Operation: Position 1 push disabled, position 2 select push
