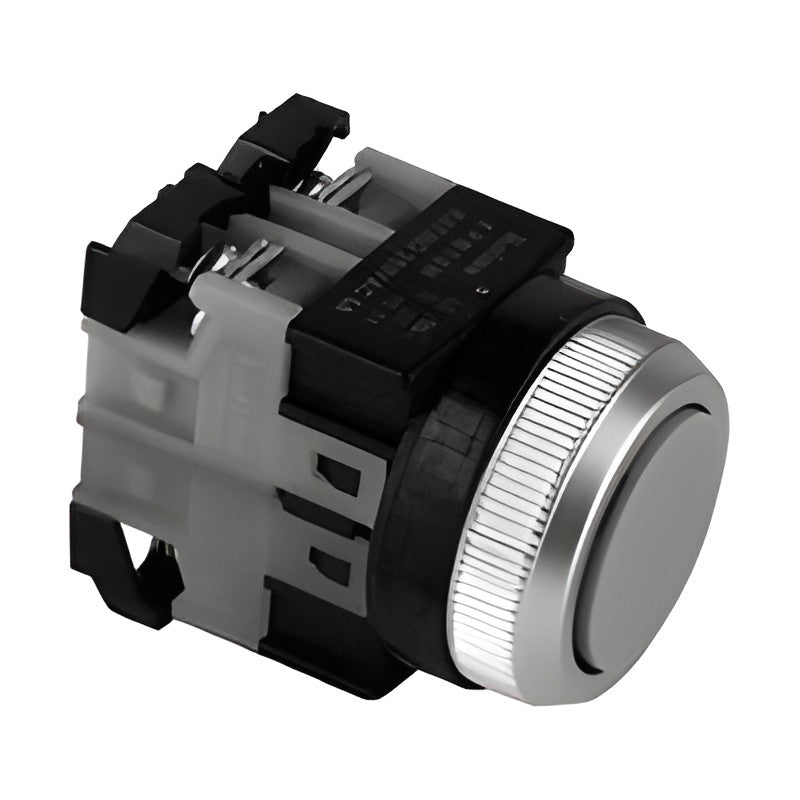

KOINO KPB30 Ø30 Push Button Switches

KOINO KPB30 Ø30 Push Button Switches

Ø30 mm non-illuminated push button switches with flat or mushroom heads in momentary, push-lock, turn-release and pull-release versions.

Key features

  • KC, CE, UL/cUL and CCC certified
  • Silver-alloy contacts suitable from general machinery to low-current circuits
  • Standard IP40 and protected IP65 versions
  • Terminals with protective structure

Specifications

Contact Rating 250 VAC 6 A (resistive)
Insulation Resistance 100 MΩ min. (500 VDC)
Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -25 to +50 °C (no icing)
Electrical Life 500,000 operations min.
Contact Blocks Up to 4
Button Colours R/G/Y/B/W/BK
Material Body: Nylon glass, Contact block: Nylon, Ring: ABS
Certification KC, UL/cUL, CE, CCC
Mounting Hole Ø30 mm
KPB30M Operation: Momentary push button | Protection: IP40 (standard)
KPB30WM Operation: Momentary push button | Protection: IP65 (protected)
KPB30AT Operation: Push-lock, push-release | Protection: IP40 (standard)
KPB30WAT Operation: Push-lock, push-release | Protection: IP65 (protected)
KPB30EM Operation: Mushroom momentary | Protection: IP40 (standard)
KPB30WEM Operation: Mushroom momentary | Protection: IP65 (protected)
KPB30EA Operation: Mushroom push-lock, push-release | Protection: IP40 (standard)
KPB30WEA Operation: Mushroom push-lock, push-release | Protection: IP65 (protected)
KPB30ER Operation: Mushroom push-lock, turn-release | Protection: IP40 (standard)
KPB30WER Operation: Mushroom push-lock, turn-release | Protection: IP65 (protected)
KPB30EP Operation: Mushroom push-lock, pull-release | Protection: IP40 (standard)
KPB30WEP Operation: Mushroom push-lock, pull-release | Protection: IP65 (protected)
Push Button SwitchesKOINO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPB30 Ø30 Push Button Switches

Brand KOINO·Push Button Switches

Available part numbers (12)

KPB30M, KPB30WM, KPB30AT, KPB30WAT, KPB30EM, KPB30WEM, KPB30EA, KPB30WEA, KPB30ER, KPB30WER + 2 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPB30MOperation: Momentary push button | Protection: IP40 (standard)
KPB30WMOperation: Momentary push button | Protection: IP65 (protected)
KPB30ATOperation: Push-lock, push-release | Protection: IP40 (standard)
KPB30WATOperation: Push-lock, push-release | Protection: IP65 (protected)
KPB30EMOperation: Mushroom momentary | Protection: IP40 (standard)
KPB30WEMOperation: Mushroom momentary | Protection: IP65 (protected)
KPB30EAOperation: Mushroom push-lock, push-release | Protection: IP40 (standard)
KPB30WEAOperation: Mushroom push-lock, push-release | Protection: IP65 (protected)
KPB30EROperation: Mushroom push-lock, turn-release | Protection: IP40 (standard)
KPB30WEROperation: Mushroom push-lock, turn-release | Protection: IP65 (protected)
KPB30EPOperation: Mushroom push-lock, pull-release | Protection: IP40 (standard)
KPB30WEPOperation: Mushroom push-lock, pull-release | Protection: IP65 (protected)
