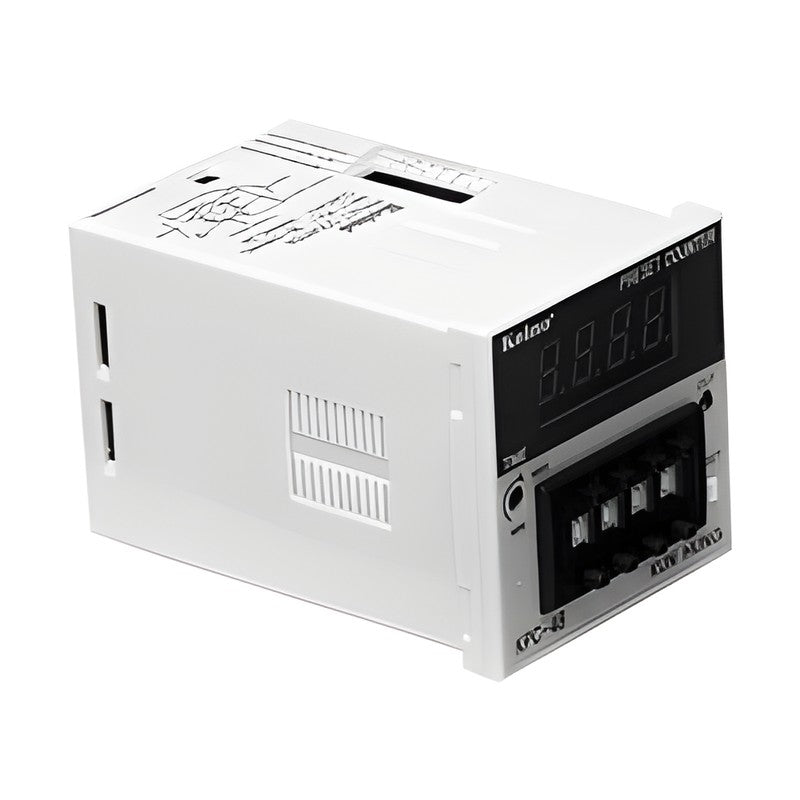

KOINO KPC-48 Preset Digital Counter, 48x48 mm

48 x 48 mm DIN-size preset digital counter with 4-digit red LED display and relay output, selectable among 8 output modes.

Key features

Compact 48 x 48 mm preset counter. 8 selectable output modes (up/down). 90-240 VAC input voltage
Counting speed selectable 30 CPS / 2,000 CPS

Specifications

Display	Red LED, 4 digits
Connection	8-pin socket (KH-KTS-8, KH-RS-R8, KH-MR-8)
Supply Voltage	90-240 VAC 50/60 Hz (12, 24 VDC made to order)
Power Consumption	Approx. 2.2 VA
Input	Count input, reset input
Counting Speed	30 CPS / 2,000 CPS selectable
External Power Output	12 VDC +/-10%, 50 mA max.
Control Output	Relay 1C (SPST)
Contact Capacity	250 VAC 2 A, 30 VDC 2 A resistive
Ambient Temperature	-10 to +55 C
Housing	PC (ivory)
Weight	Approx. 96 g

KPC-48

CountersKOINO

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPC-48 Preset Digital Counter, 48x48 mm

Brand KOINO·Counters

Available part numbers (1)

KPC-48

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
