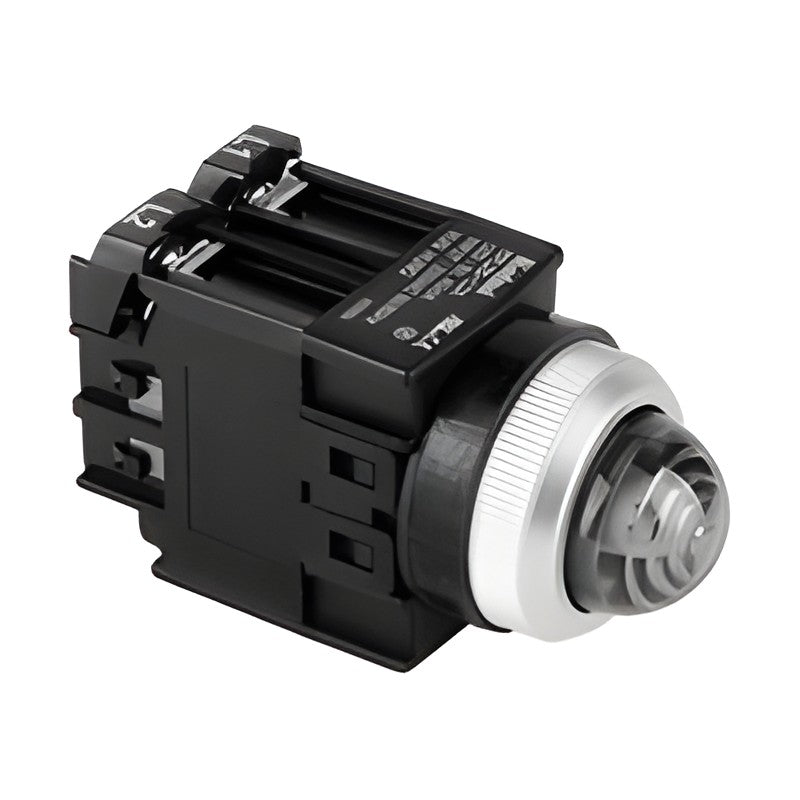

KOINO KPL25 / KPL30 Ø25 and Ø30 Pilot Lamps

KOINO KPL25 / KPL30 Ø25 and Ø30 Pilot Lamps

Ø25 mm and Ø30 mm pilot lamps with filament or LED light source in transformer or full-voltage versions.

Key features

  • CE, UL/cUL and CCC certified
  • Standard IP40 (KPL25/KPL30) and protected IP65 (KPL25W/KPL30W) versions
  • Flat cap (F) type available for Ø25 only
  • Terminals with protective structure

Specifications

Dielectric Strength 1,500 VAC 50/60 Hz for 1 min
Terminal Screw M3.5
Operating Temperature -25 to +50 °C (no icing)
Protection IP40 standard / IP65 W type
Transformer Secondary 6 V
Lens Colours R/G/Y/B/W/O
Material Body: Nylon glass, Ring: ABS, Cap: AS
KPL25-1A Size: Ø25 mm | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KPL25-2A Size: Ø25 mm | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KPL25-3A Size: Ø25 mm | Light Source: Filament lamp | Voltage: 230 VAC (transformer)
KPL25-L1A Size: Ø25 mm | Light Source: LED | Voltage: 110 VAC (transformer)
KPL25-L2A Size: Ø25 mm | Light Source: LED | Voltage: 220 VAC (transformer)
KPL25-L3A Size: Ø25 mm | Light Source: LED | Voltage: 230 VAC (transformer)
KPL25-1C Size: Ø25 mm | Light Source: Filament lamp | Voltage: 6 V AC/DC (full voltage)
KPL25-2C Size: Ø25 mm | Light Source: Filament lamp | Voltage: 12 V AC/DC (full voltage)
KPL25-3C Size: Ø25 mm | Light Source: Filament lamp | Voltage: 24 V AC/DC (full voltage)
KPL25-L1C Size: Ø25 mm | Light Source: LED | Voltage: 6 V AC/DC (full voltage)
KPL25-L2C Size: Ø25 mm | Light Source: LED | Voltage: 12 V AC/DC (full voltage)
KPL25-L3C Size: Ø25 mm | Light Source: LED | Voltage: 24 V AC/DC (full voltage)
KPL30-1A Size: Ø30 mm | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KPL30-2A Size: Ø30 mm | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KPL30-3A Size: Ø30 mm | Light Source: Filament lamp | Voltage: 230 VAC (transformer)
KPL30-L1A Size: Ø30 mm | Light Source: LED | Voltage: 110 VAC (transformer)
KPL30-L2A Size: Ø30 mm | Light Source: LED | Voltage: 220 VAC (transformer)
KPL30-L3A Size: Ø30 mm | Light Source: LED | Voltage: 230 VAC (transformer)
KPL30-1C Size: Ø30 mm | Light Source: Filament lamp | Voltage: 6 V AC/DC (full voltage)
KPL30-2C Size: Ø30 mm | Light Source: Filament lamp | Voltage: 12 V AC/DC (full voltage)
KPL30-3C Size: Ø30 mm | Light Source: Filament lamp | Voltage: 24 V AC/DC (full voltage)
KPL30-L1C Size: Ø30 mm | Light Source: LED | Voltage: 6 V AC/DC (full voltage)
KPL30-L2C Size: Ø30 mm | Light Source: LED | Voltage: 12 V AC/DC (full voltage)
KPL30-L3C Size: Ø30 mm | Light Source: LED | Voltage: 24 V AC/DC (full voltage)
Pilot LightsKOINO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KPL25 / KPL30 Ø25 and Ø30 Pilot Lamps

Brand KOINO·Pilot Lights

Available part numbers (24)

KPL25-1A, KPL25-2A, KPL25-3A, KPL25-L1A, KPL25-L2A, KPL25-L3A, KPL25-1C, KPL25-2C, KPL25-3C, KPL25-L1C + 14 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPL25-1ASize: Ø25 mm | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KPL25-2ASize: Ø25 mm | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KPL25-3ASize: Ø25 mm | Light Source: Filament lamp | Voltage: 230 VAC (transformer)
KPL25-L1ASize: Ø25 mm | Light Source: LED | Voltage: 110 VAC (transformer)
KPL25-L2ASize: Ø25 mm | Light Source: LED | Voltage: 220 VAC (transformer)
KPL25-L3ASize: Ø25 mm | Light Source: LED | Voltage: 230 VAC (transformer)
KPL25-1CSize: Ø25 mm | Light Source: Filament lamp | Voltage: 6 V AC/DC (full voltage)
KPL25-2CSize: Ø25 mm | Light Source: Filament lamp | Voltage: 12 V AC/DC (full voltage)
KPL25-3CSize: Ø25 mm | Light Source: Filament lamp | Voltage: 24 V AC/DC (full voltage)
KPL25-L1CSize: Ø25 mm | Light Source: LED | Voltage: 6 V AC/DC (full voltage)
KPL25-L2CSize: Ø25 mm | Light Source: LED | Voltage: 12 V AC/DC (full voltage)
KPL25-L3CSize: Ø25 mm | Light Source: LED | Voltage: 24 V AC/DC (full voltage)
KPL30-1ASize: Ø30 mm | Light Source: Filament lamp | Voltage: 110 VAC (transformer)
KPL30-2ASize: Ø30 mm | Light Source: Filament lamp | Voltage: 220 VAC (transformer)
KPL30-3ASize: Ø30 mm | Light Source: Filament lamp | Voltage: 230 VAC (transformer)
KPL30-L1ASize: Ø30 mm | Light Source: LED | Voltage: 110 VAC (transformer)
KPL30-L2ASize: Ø30 mm | Light Source: LED | Voltage: 220 VAC (transformer)
KPL30-L3ASize: Ø30 mm | Light Source: LED | Voltage: 230 VAC (transformer)
KPL30-1CSize: Ø30 mm | Light Source: Filament lamp | Voltage: 6 V AC/DC (full voltage)
KPL30-2CSize: Ø30 mm | Light Source: Filament lamp | Voltage: 12 V AC/DC (full voltage)
KPL30-3CSize: Ø30 mm | Light Source: Filament lamp | Voltage: 24 V AC/DC (full voltage)
KPL30-L1CSize: Ø30 mm | Light Source: LED | Voltage: 6 V AC/DC (full voltage)
KPL30-L2CSize: Ø30 mm | Light Source: LED | Voltage: 12 V AC/DC (full voltage)
KPL30-L3CSize: Ø30 mm | Light Source: LED | Voltage: 24 V AC/DC (full voltage)
