KOINO KSE Emergency Stop Switch Enclosure Boxes

KOINO KSE Emergency Stop Switch Enclosure Boxes

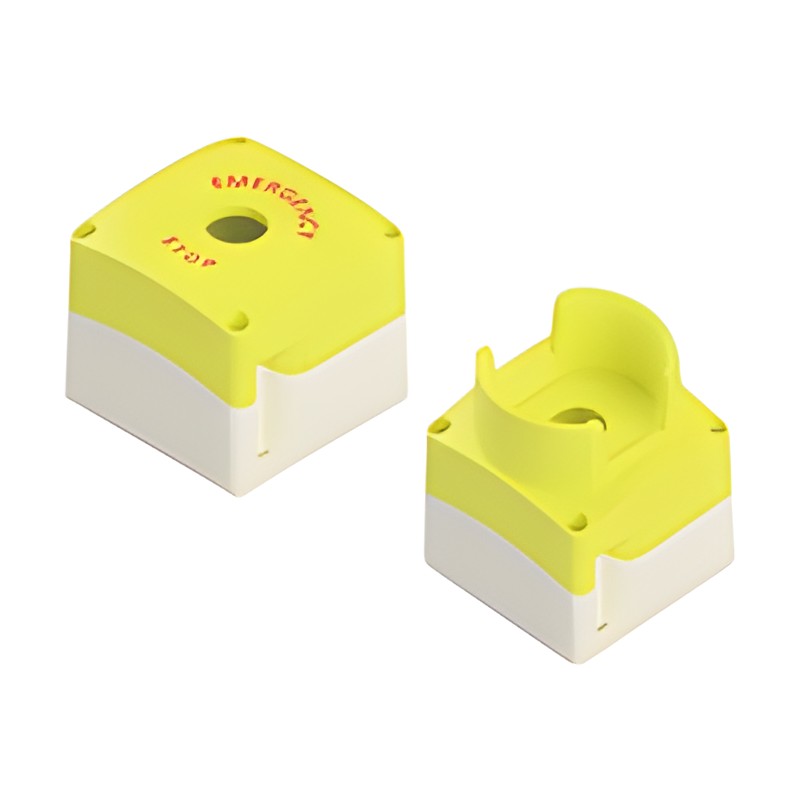

Yellow single-hole enclosure boxes for mounting 22, 25 or 30 mm emergency stop switches, with or without protective guard.

Key features

  • Selectable 22, 25 or 30 mm mounting hole
  • IP65 protection
  • Impact-resistant, lightweight plastic
  • Flame-retardant UL94-V0 material
  • EMERGENCY STOP / EMERGENCY OFF printing available (-1/-2)

Specifications

Holes 1
Material ABS (UL94-V0)
Color Yellow box, red printing
Protection IP65
Operating temperature -25 to +60 C
Insulation class Class II (with suitable switch)
Size 87 x 87 x 73.5 mm
KSE-221 Mounting hole: 22 mm | Protective guard: No
KSE-251 Mounting hole: 25 mm | Protective guard: No
KSE-301 Mounting hole: 30 mm | Protective guard: No
KSE-221S Mounting hole: 22 mm | Protective guard: Yes
KSE-251S Mounting hole: 25 mm | Protective guard: Yes
KSE-301S Mounting hole: 30 mm | Protective guard: Yes
Control BoxesKOINO
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KSE Emergency Stop Switch Enclosure Boxes

Brand KOINO·Control Boxes

Available part numbers (6)

KSE-221, KSE-251, KSE-301, KSE-221S, KSE-251S, KSE-301S

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KSE-221Mounting hole: 22 mm | Protective guard: No
KSE-251Mounting hole: 25 mm | Protective guard: No
KSE-301Mounting hole: 30 mm | Protective guard: No
KSE-221SMounting hole: 22 mm | Protective guard: Yes
KSE-251SMounting hole: 25 mm | Protective guard: Yes
KSE-301SMounting hole: 30 mm | Protective guard: Yes
